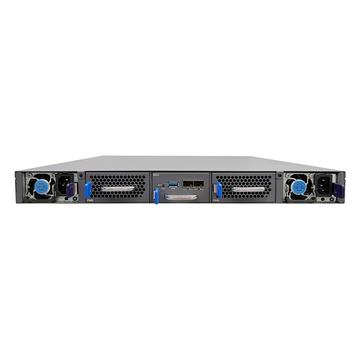

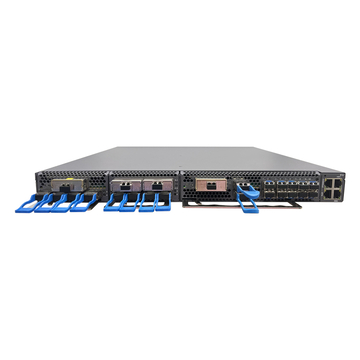

DCI BOX Chassis, 19", 1U: 4 equal 1/4 slots, also compatible with 2 equal 1/2 slots, including front interface board, support provides 1 CONSOLE and 3 ETH management ports, 2 Standard CRPS power supplies: 220V AC or 48V DC optional
1U Chassis Supports an optoelectronic integrated WDM transmission platform designed for Data Centre Interconnection (DCI)
Parameter
Description
Chassis
Dimensions (H x W x D)
1U: 44 mm (H)×444 mm (W)×490 mm (D)
Maximum capacity
1.6Tbit/s
Number of service card slots
4
Applicable cabinets
19" cabinet 800mm or deeper
Line-side port
Rate
200G(PDM QPSK)
200G(PDM 8QAM)
200G(PDM 16QAM)
400G(PDM 16QAM)
Optical module
Pluggable CFP2, wavelength adjustable
Client-side port
Service type
10GE, 100GE, 100GE FlexE(Unware), OTU2, OTU4, STM-64, 10GE WAN
Optical module
Pluggable SFP+
Pluggable QSFP28
Max. number of wavelengths
Fixed grid: 96 wavelengths @50 GHz
Channel spacing
Fixed grid: 50 GHz/75 GHz/100 GHz/150 GHz
Central frequency range
191.35 GHz～196.1 GHz
Central wavelength range
1528.77 nm～1566.73 nm
Protection function
Optical line protection (OLP)
Optical multiplexed segment protection (OMSP)
Optical channel protection (OCHP)
Network management
Supports main controller 1+1 backup
Supports CLI, NETCONF, and B/S-based GUI management platform
Support OSC-based DCN communication
Power supply
Back-up
Standard CRPS power supply 1+1 backup
AC
Rated voltage range:
100VAC～130VAC(50/60Hz)
200VAC～240VAC(50/60Hz)
Max. voltage range:90V AC～264VAC(45Hz~65Hz)
HVDC
Rated voltage range: 240V HVDC
Max. voltage range: 192 V HVDC～288 V HVD
DC
Rated voltage range:-48 V DC/-60 V DC
Max. voltage range:-40V DC～-72V DC
Heat dissipation
Front inlet air and rear outlet air
1+1 Fan units backup
Typical power consumption
<550W(Electric layer full match)
Environment
Operating temperature
Short-term:-5℃~+45℃
Long-term:0℃~40℃
Storage temperature
40℃~+70℃
Humidity
5%～95%(no condensation)
Product Details
Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
FM-OTN Systems
Save Optical Fiber In Huge Bandwidth Need
40 channels system
Access capacity:80G
40 channels system
Access capacity:160G
40/48/80/96 channels system
Access capacity
400G ➨ 960G➨ 4T➨ 9.6T
WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber
FiberMall FM-OTN System Includes the Following Two Parts
Customized Solutions, Self-help Selection of Our FM-OTN System Function Modules
OTN Platform
1 Main Chassis 1U/2U/5U
2 Power Supply Module
3 Network Management Unit
OTN Function Module
Transponder (OEO)
Amplifier Modules
Dispersion Compensation
Une Protection
our advantages
Short Lead Time
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability
Practical Application Demonstration
As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.
