{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

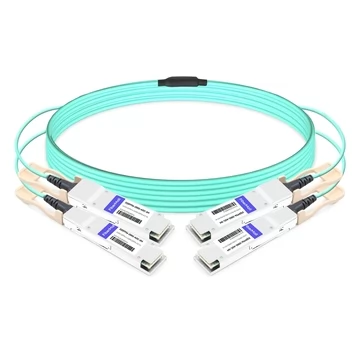

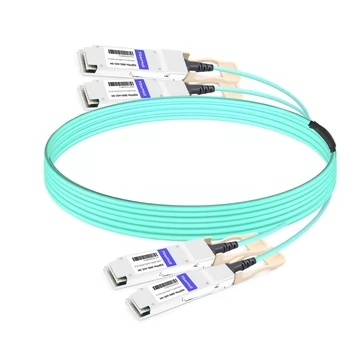

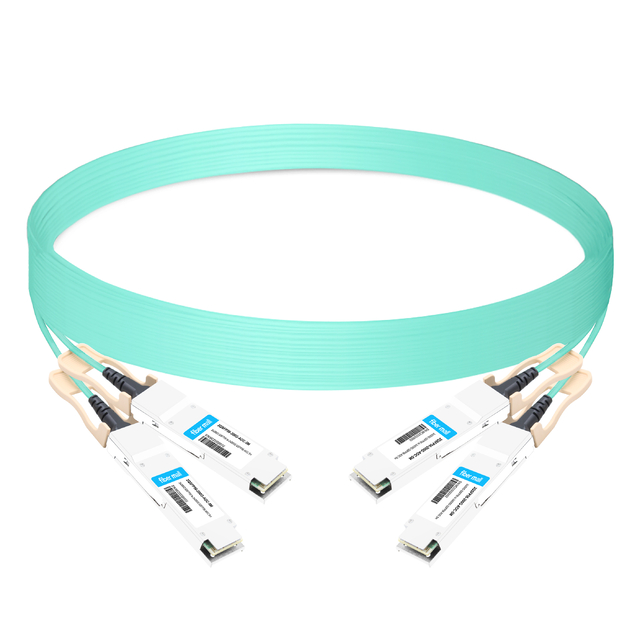

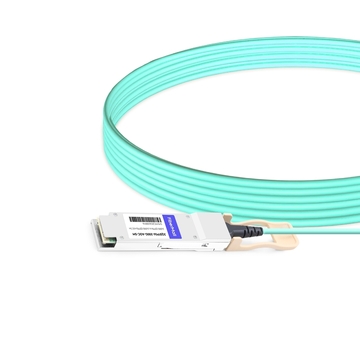

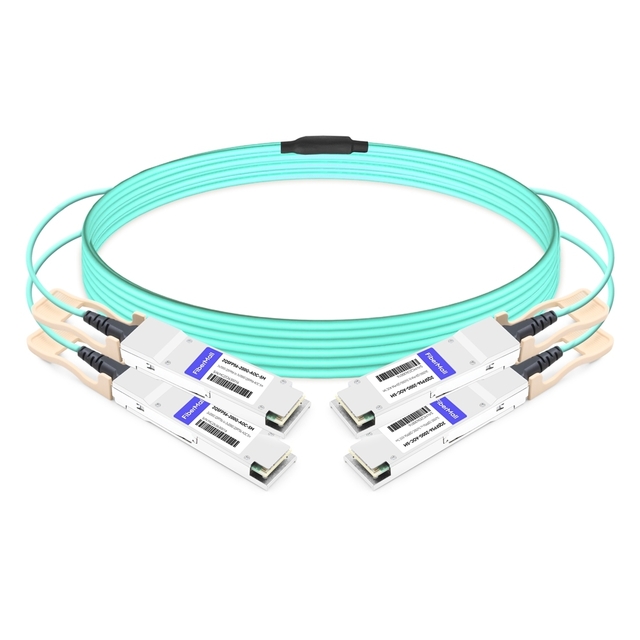

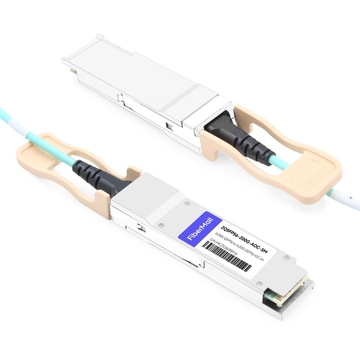

| NVIDIA Compatible | MFS1S90-H005E | Vendor Name | FiberMall |
| Form Factor | 2x QSFP56 to 2x QSFP56 | Max Data Rate | 212.5Gb/s |
| Wavelength | 850nm | Cable Length | 5m (16ft) |
| Modulation Format | PAM4 | Host Required | FEC |
| Jacket Material | LSZH | Minimum Bend Radius | 30mm |
| Cable Type | MMF | DDM Support | Yes |
| Transmitter Type | 850nm VCSEL | Receiver Type | PIN |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Voltage Supply | 3.3V |
| Protocols | QSFP56 MSA, CMIS IEEE 802.3cd 200GBASE-SR4 | Maximum Power | < 5W (200G QSFP56) |
| Connector | Fiber Optic Cable | Application | 200GBASE-SR4, 200G InfiniBand HDR |

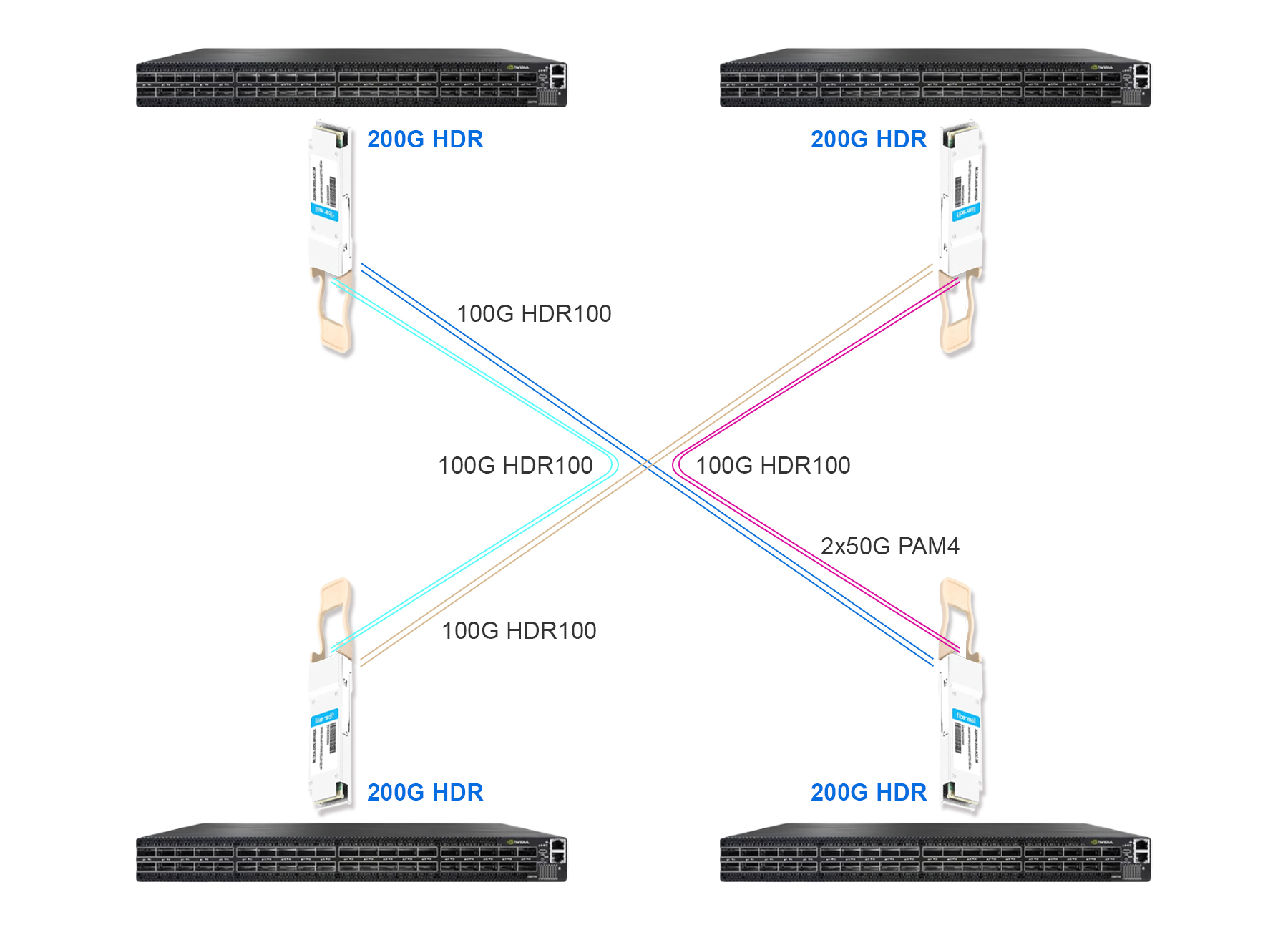

NVIDIA QM8700 Switch Links Using QSFP56 to QSFP56 Breakout Active Optical Cable
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Hot Pluggable QSFP Cable End
v Supports 212.5Gb/s aggregate bit rate
v Low Power Dissipation, Typ. 5.0W Each End
v 4x50G PAM4 VCSEL/PIN photo-detector
v Operating Case Temperature: 0ºC~70ºC
v SFF-8636 Management Interface
v SFF-8679: General Electrical
v IEEE 802.3cd: Physical Layer Specifications and Management Parameters
Applications
v Ethernet for 200GBASE-SR4
v 200G InfiniBand HDR
v ROHS-6: Environment Safety
