{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

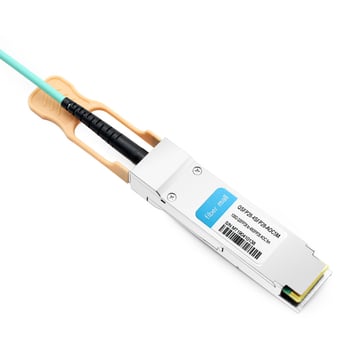

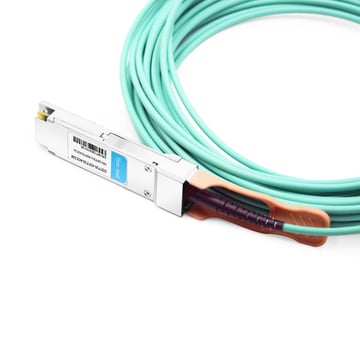

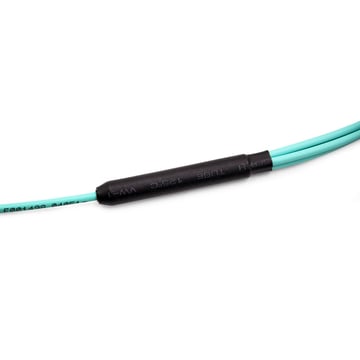

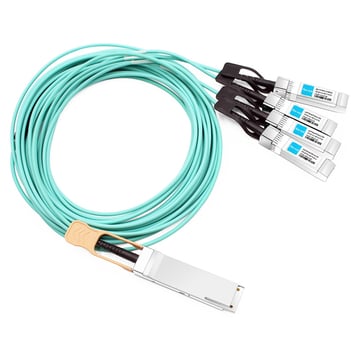

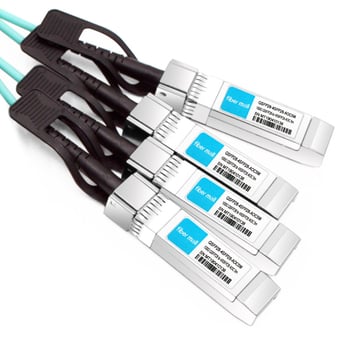

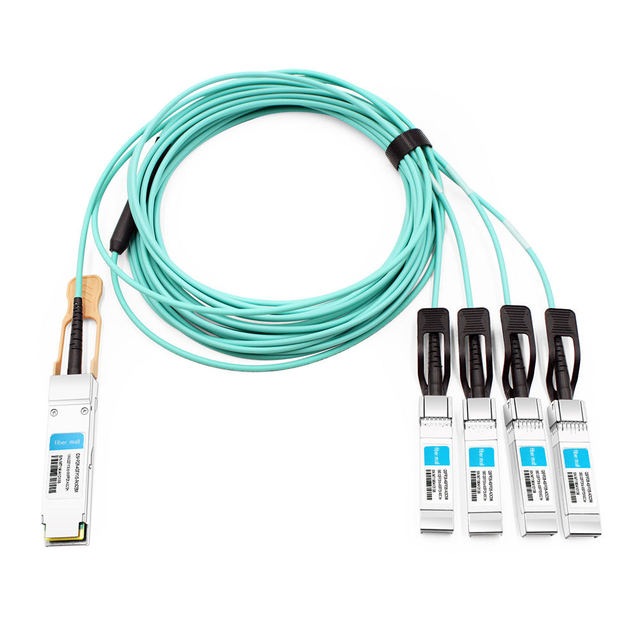

| Dell Compatible | AOC-Q28-4SFP28-25G-5M | Vendor Name | FiberMall |
| Connector | QSFP28 to 4x SFP28 | Max Data Rate | 100Gbps |
| Cable Length | 5m (16.4ft) | Fiber Cable | OM3 MMF |
| Jacket Material | OFNP | Minimum Bend Radius | 7.5mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Protocols | 25G/100G Ethernet, InfiniBand QDR |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v 4 channels full-duplex transceiver modules
v Supports 100Gbps total data rate
v Transmission data rate up to 28.05Gbps per channel
v 4 channels 850nm VCSEL array
v 4 channels PIN photo detector array
v Low power consumption <3.5W
v Maximum link length of 70m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
v Single MPO connector receptacle
v 3.3V power supply voltage
v RoHS 6 compliant (lead-free)
v IEEE 802.3bm 100GBASE SR4, Infiniband EDR, Fibre Channel, 40G/100G Ethernet
