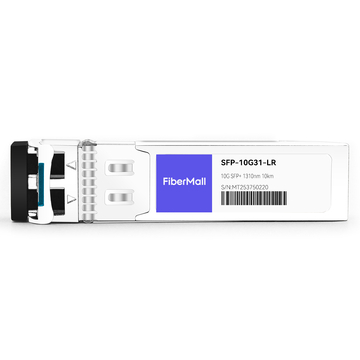

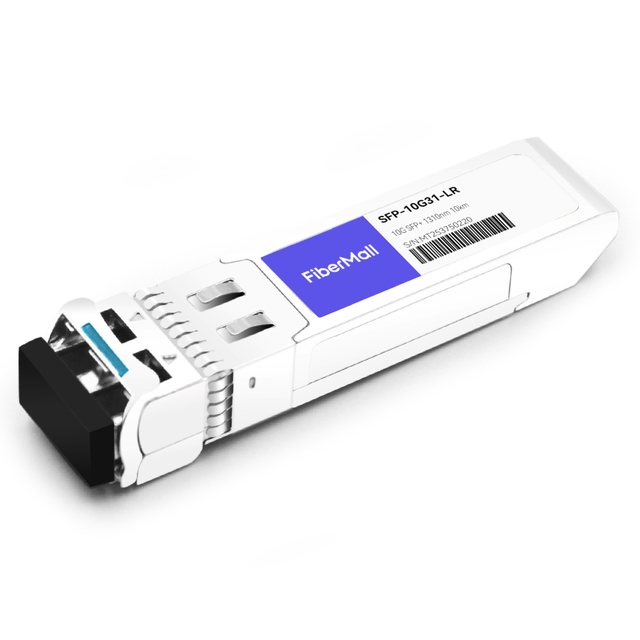

H3C SFP-XG-LX-SM1310 Compatible 10G SFP+ LR 1310nm 10km LC SMF DDM Transceiver Module

Add to wish

17%

OFF

H3C SFP-XG-LX-SM1310 Compatible 10G SFP+ LR 1310nm 10km LC SMF DDM Transceiver Module

Name: H3C SFP-XG-LX-SM1310 Compatible 10G SFP+ LR 1310nm 10km LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 18653
Price: 15.00 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18653

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; AVAGO (Broadcom); Alcatel-Lucent; Arista Networks; Avago; Avaya; Brocade; Ciena; Cisco (Meraki); D-Link; DELL; EdgeCore; Extreme; F5 Networks; H3C; HPE (Aruba); HPE (BladeSystem); HPE (H3C); HPE (Procurve); Huawei; IBM; Intel; Juniper; Mellanox; MikroTik; Netgear; Palo Alto Networks; Ruijie; Ubiquiti; ZTE

Transceiver Type: SFP-XG-CPRI-LR-SM1310; SFP-XG-LR-SM1310; SFP-XG-LX-SM1310; SFP-XG-LX-SM1310-CM; SFP-XG-LX-SM1310-D; SFP-XG-LX-SM1310-E

FM PN:

SFP-10G31-LR

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

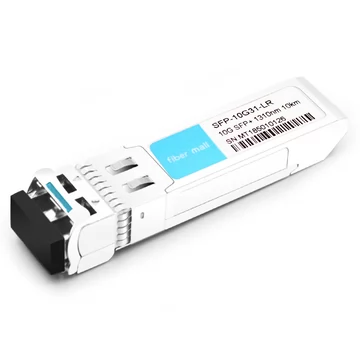

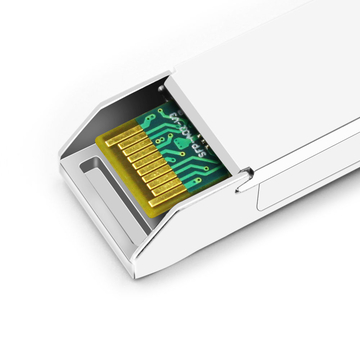

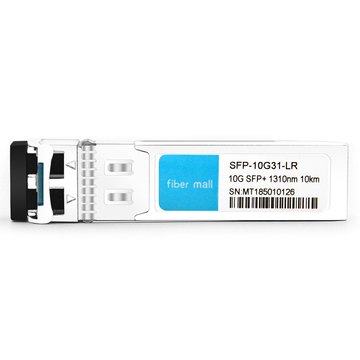

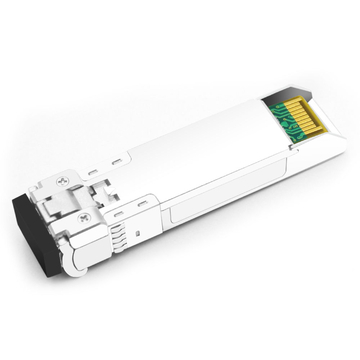

H3C SFP-XG-LX-SM1310 Compatible 10G SFP+ LR Transceiver Module (1310nm SMF 10km LC DDM)

H3C SFP-XG-LX-SM1310 Compatible SFP+ Module is designed for optical communication applications and supports link lengths up to 10 km over LC duplex SMF fiber. The transceiver complies with SFF-8431, SFF-8432, and IEEE 802.3ae standards. Digital diagnostic monitoring is available via a 2-wire serial interface as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, radio and baseband units, and more.

Product Details

H3C Compatible	SFP-XG-LX-SM1310	Vendor Name	FiberMall
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1310nm	Max Distance	10km
Connector	Duplex LC	Transmitter Type	1310nm DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	-6.5~-0.5dBm	Receiver Sensitivity	< -14.4dBm
Protocols	10G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v Supports up to 10.7Gbps bit rates

v Single +3.3V power supply

v 1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

v Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

v Real-Time Digital Diagnostic Monitoring

v 10GBASE-LR at 10.3125Gbps

v 10GBASE-LW at 9.953Gbps

v Compatible with RoHS
