EdgeCore ET7402-DR1 Compatible 100G-DR QSFP28 Optical | FiberMall

Add to wish

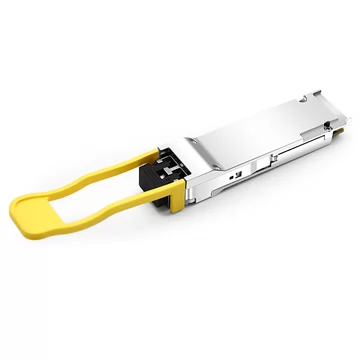

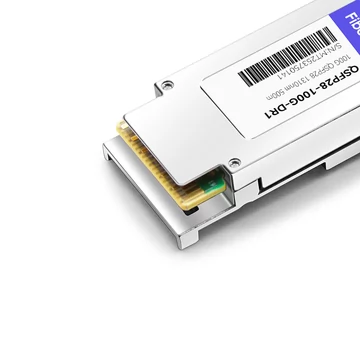

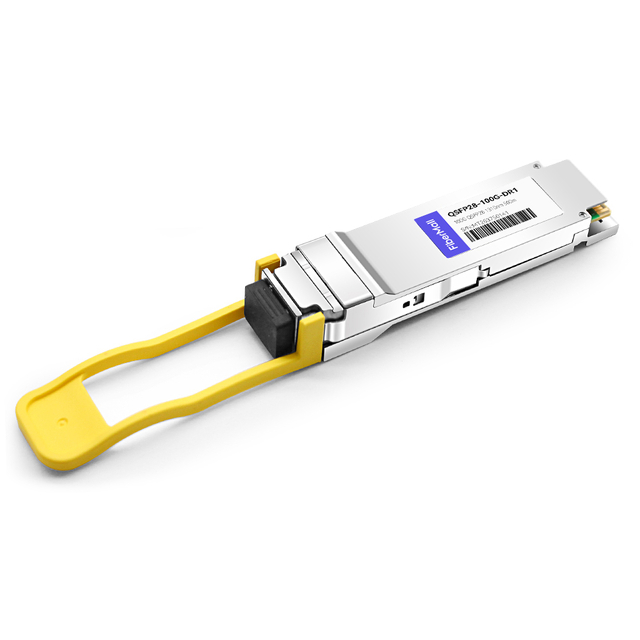

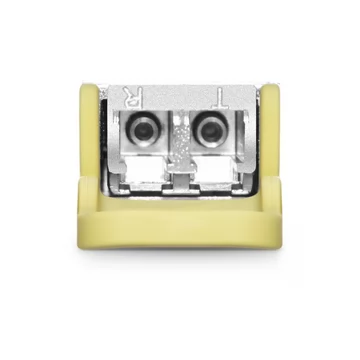

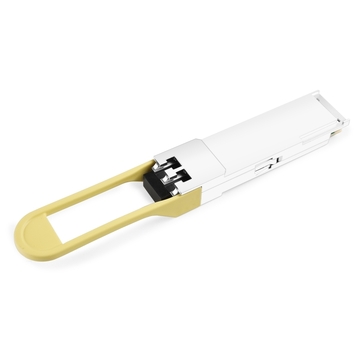

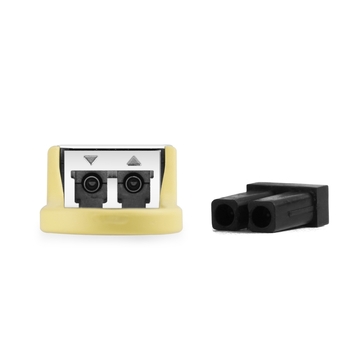

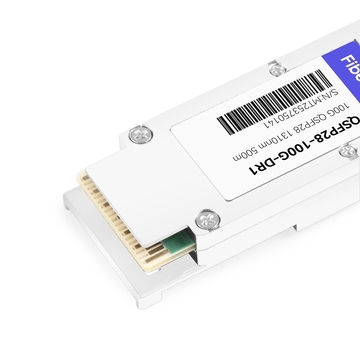

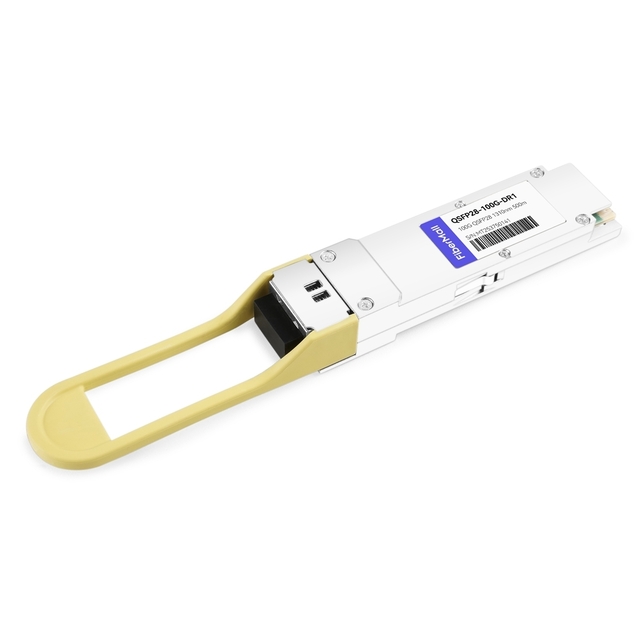

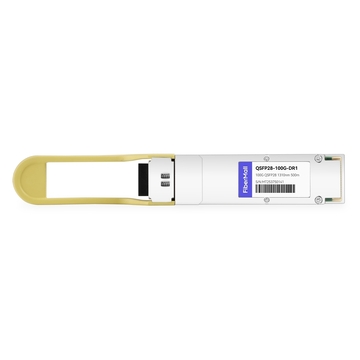

EdgeCore ET7402-DR1 Compatible 100G-DR QSFP28 1310nm 500m LC DDM SMF Optical Transceiver Module

Name: EdgeCore ET7402-DR1 Compatible 100G-DR QSFP28 1310nm 500m LC DDM SMF Optical Transceiver Module
Brand: fibermall
SKU: 18597
Price: 180.00 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18597

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Avago Broadcom; EdgeCore; Huawei; Juniper; Mellanox; Ruijie Networks

Transceiver Type: ET7402-SR4; ET7402-CWDM4; ET7402-DR1; ET7402-PIR4; ET7402-4WDM-10; ET7402-LR4; ET7402-ER4

Transmission Mode: Single Lambda

FM PN:

QSFP28-100G-DR1

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

EdgeCore ET7402-DR1 Compatible 100G-DR QSFP28 Optical Transceiver Module Use for Enterprise Core and Data Center(1310nm, 500m, LC, DDM, SMF)

The 100Gbase DR incorporates a one-channel optical signal on 1310nm center wavelength operating at a 50Gbaud data rate. A DSP-based gearbox converts 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signals. The electrical interface complies with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions. The optical interface is compliant with IEEE 802.3cd and 100G Lambda MSA with a Duplex LC connector. The module has a maximum power consumption of 3.5W.

Product Details

EdgeCore Compatible	ET7402-DR1	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	100Gbps Single Lambda
Wavelength	1310nm	Max Distance	500m
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
TX Power	-2.4~+4.0dBm	Receiver Sensitivity	< -4.4dBm
DDM Support	YES	FEC Support	YES
Protocols	IEEE802.3cd 100GBASE-DR, 100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP28-100G-DR1	QSFP28-100G-ER4L
EdgeCore Compatible	ET7402-DR1	ET7402-ER4
Vendor Name	FiberMall	FiberMall
Form Factor	QSFP28	QSFP28
Max Data Rate	100Gbps Single Lambda	103.1Gbps
Wavelength	1310nm	1295.56nm, 1300.05nm 1304.58nm, 1309.14nm
Max Distance	500m	30km without FEC 40km with FEC
Connector	Duplex LC	Duplex LC
Transmitter Type	EML	LAN WDM EML
Cable Type	SMF	SMF
Receiver Type	PIN	APD
TX Power	-2.4~+4.0dBm	-2.9~+4.5dBm
Receiver Sensitivity	< -4.4dBm	<-16.9dBm without FEC <-20.9dBm with FEC
DDM Support	YES	-
FEC Support	YES	-
Protocols	IEEE802.3cd 100GBASE-DR, 100G Ethernet, MSA Compliant	100G Ethernet, MSA Compliant
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)

Product Features

v Single +3.3V power supply

v QSFP28 MSA package with LC connector

v Supports 53.125Gbaud

v IEEE802.3cd 100GBASE-DR Specification compliant

v Up to 500m transmission on single mode fiber (SMF) with FEC

v 4x25G electrical interface (OIF CEI-28G- VSR)

v Maximum power consumption 4W

v Supports Data Center Interconnect, 100G Ethernet, and Enterprise networking.

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Datasheet


QSFP28-100G-DR1.pdf

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

E***n

United States

Verified Purchase

5.0

2023-05-30

The modules arrived quickly and worked perfectly in pre-deployment testing. Deployment should be complete by the end of the week and I don't anticipate any issues.

5 Helpful vote Comments

C***n

United States

Verified Purchase

5.0

2023-03-29

We are using these transceivers in the lab for 100G direct connectivity. Typically, FiberMall's optics work consistently and reliably. These 100G single lambda modules are no exception. Overall, using these new transceivers can be a great experience.

5 Helpful vote Comments

N***e

United States

Verified Purchase

5.0

2023-03-04

I have experience with Cisco and Juniper switches. Recently, I bought two 100 GB modules. Fortunately, both modules worked within two days of purchase. I am happy to report that my network is running smoothly with the new modules.

5 Helpful vote Comments

T***n

United States

Verified Purchase

5.0

2023-02-25

Used for a two building system about 500 meters away. I installed the 100G module on my unit and it was up and running from the moment I turned it on. So far I have not seen any problems.

5 Helpful vote Comments

O***n

United States

Verified Purchase

5.0

2023-02-12

Due to the high demand for 100G modules for our data center connectivity, I purchased some cheap DR modules locally and kept losing packets. After purchasing the FiberMall modules, I had a great experience with them as they were largely trouble free in terms of connectivity.

5 Helpful vote Comments
