EdgeCore ET6401-PLR4 4x10G-LR QSFP+ Transceiver | FiberMall

OFF

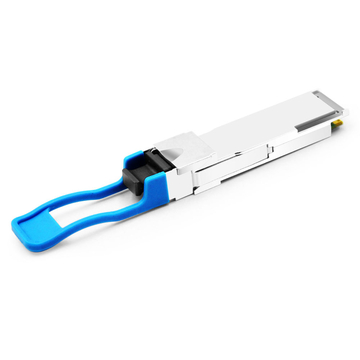

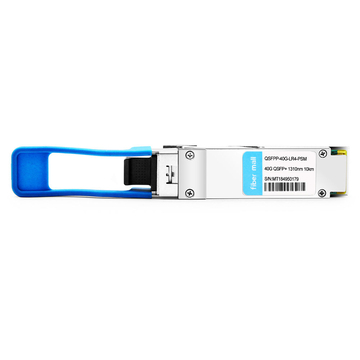

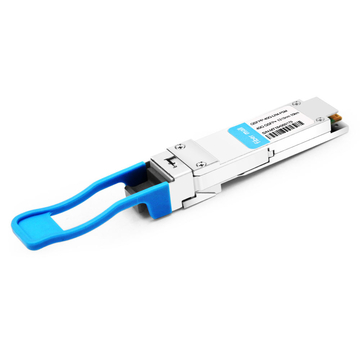

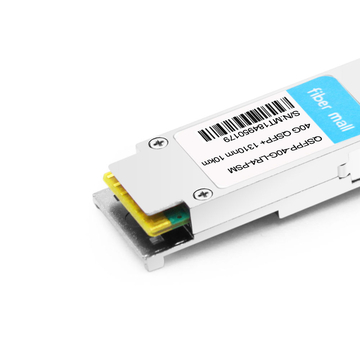

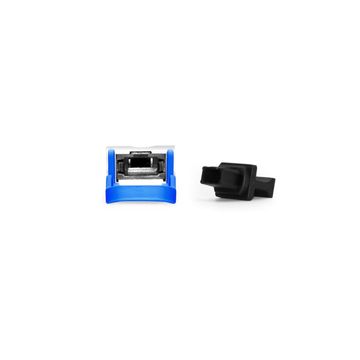

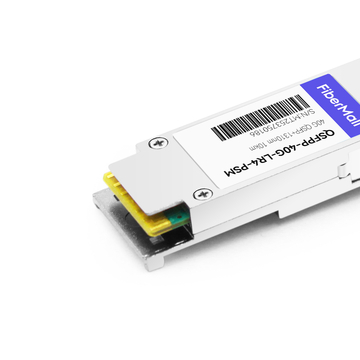

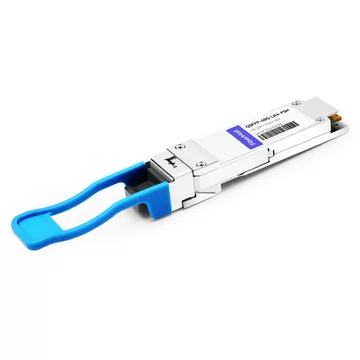

EdgeCore ET6401-PLR4 Compatible 4x10G LR QSFP+ 1310nm 10km DDM MTP/MPO-12 SMF Optical Transceiver Module

Add to wish

OFF

EdgeCore ET6401-PLR4 Compatible 4x10G LR QSFP+ 1310nm 10km DDM MTP/MPO-12 SMF Optical Transceiver Module

Name: EdgeCore ET6401-PLR4 Compatible 4x10G LR QSFP+ 1310nm 10km DDM MTP/MPO-12 SMF Optical Transceiver Module
Brand: fibermall
SKU: 18570
Price: 149.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18570

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Brocade; DELL Force10; EdgeCore; Extreme; H3C; HPE (H3C); Huawei; Intel; Juniper

Transceiver Type: ET6401-SR4; ET6401-CSR4; ET6401-IR4; ET6401-PIR4; ET6401-LR4; ET6401-LX4; ET6401-PLR4; ET6401-PSM4

FM PN:

QSFPP-40G-LR4-PSM

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

EdgeCore ET6401-PLR4 Compatible 4x10G-LR QSFP+ Transceiver Use for Enterprise Core and Data Center(1310nm, 10km, MTP/MPO-12, DDM, SMF)

The 40G QSFP+ LR4 is a transceiver module designed for 10km optical communication applications. The design is compliant with 40GBASE-LR4 of the IEEEP802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 channels are 1310 nm as members of the wavelength grid defined in ITU-T G694.2.

Product Details

EdgeCore Compatible	ET6401-PLR4	Vendor Name	FiberMall
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	1310nm	Max Distance	10km
Connector	MTP/MPO	Transmitter Type	4 Lanes DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	-5.0~+1.0dBm	Receiver Sensitivity	< -12.6dBm
Protocols	40Gigabit Ethernet, 10Gigabit Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v 4 independent full-duplex channels

v Up to 11.2Gbps per channel bandwidth

v Single +3.3V power supply operating

v Up to10km transmission

v Compliant with QDR/DDR Infiniband data rates

v RoHS Compliant Part

v Compliant with QDR/DDR Infiniband data rates

v Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

v Application for Data centers, Switches, Routers, 40GBASE-LR4-PSM Ethernet Links
