EdgeCore ET5402-ZR Compatible 10G SFP+ ZR | FiberMall

19%

OFF

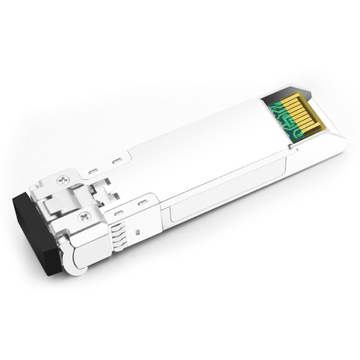

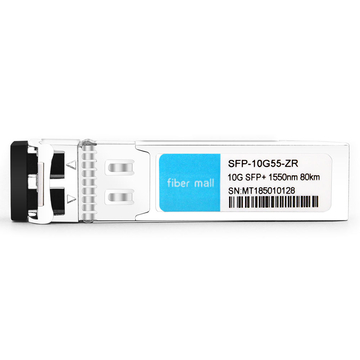

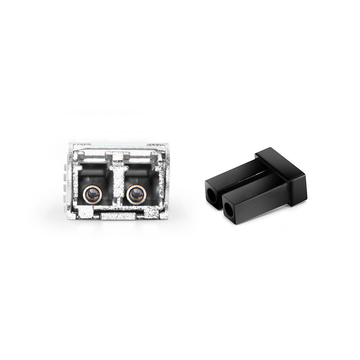

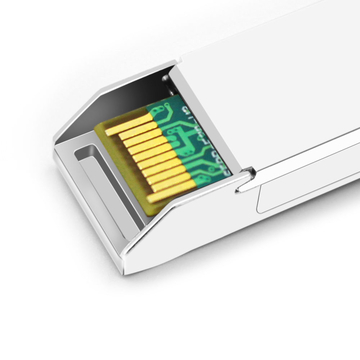

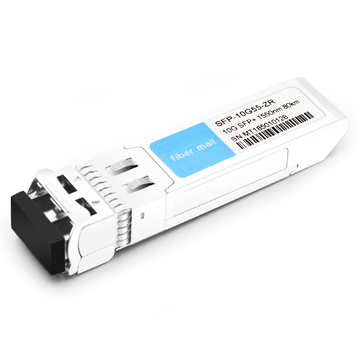

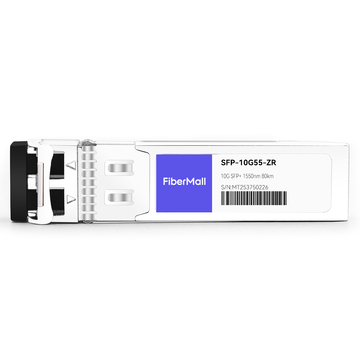

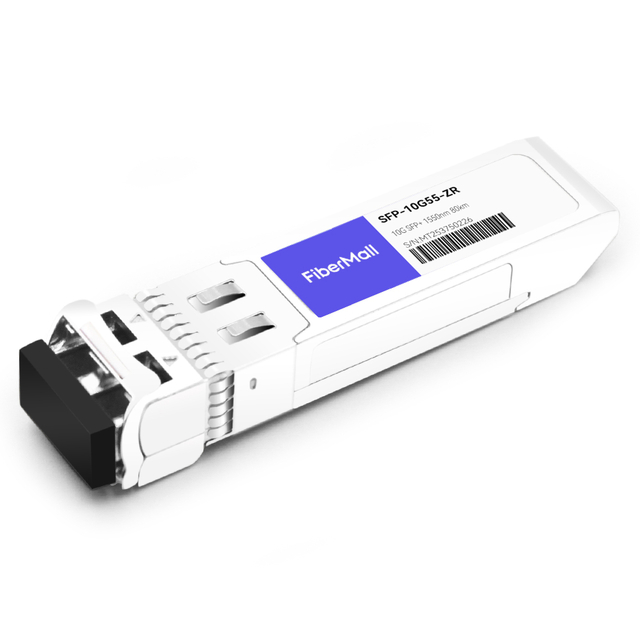

EdgeCore ET5402-ZR Compatible 10G SFP+ ZR 1550nm 80km LC SMF DDM Transceiver Module

Add to wish

19%

OFF

EdgeCore ET5402-ZR Compatible 10G SFP+ ZR 1550nm 80km LC SMF DDM Transceiver Module

Name: EdgeCore ET5402-ZR Compatible 10G SFP+ ZR 1550nm 80km LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 18545
Price: 150.00 USD
Availability: OutOfStock
Rating: 5 (6 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18545

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Alcatel-Lucent; Arista Networks; Avaya; Brocade; Ciena; Cisco (Meraki); DELL; EdgeCore; Extreme; H3C; HPE (H3C); Huawei; Juniper; Ruijie; ZTE

Transceiver Type: ET5402-SR; ET5402-LR; ET5402-RJ45; ET5402-ER; ET5402-ZR

FM PN:

SFP-10G55-ZR

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

EdgeCore ET5402-ZR Compatible 10G SFP+ ZR Transceiver Module (1550nm SMF 80km LC DDM)

EdgeCore ET5402-ZR Compatible 10G SFP+ ZR supports a data rate of 10Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA), and the MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Product Details

EdgeCore Compatible	ET5402-ZR	Vendor Name	FiberMall
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1550nm	Max Distance	80km
Connector	Duplex LC	Transmitter Type	1550nm EML
Cable Type	SMF	Receiver Type	APD
TX Power	0~+4.0dBm	Receiver Sensitivity	< -23.0dBm
Protocols	10G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

10G SFP ZR

Product Features

v Supports up to 10.7Gbps bit rates

v Un-cooled 1550nm Cooled EML laser and APD photodiode, Up to 80km for SMF transmission

v Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

v Compatible with RoHS

v Single +3.3V power supply fiber

v Real-Time Digital Diagnostic Monitoring

v Supports10Gbps Optical systems, 10GBASE-ZR at 10.3125Gbps, 10GBASE-ZW at 9.953Gbps and LTE systems
