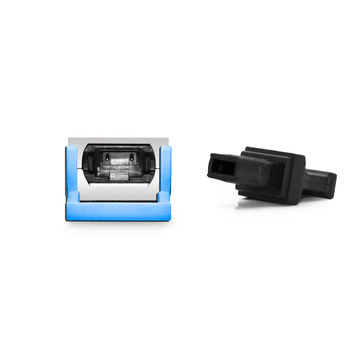

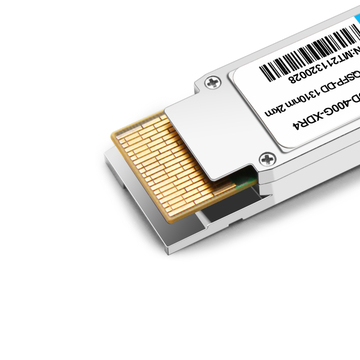

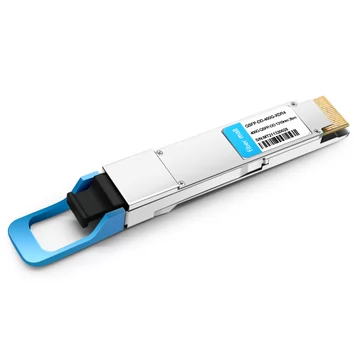

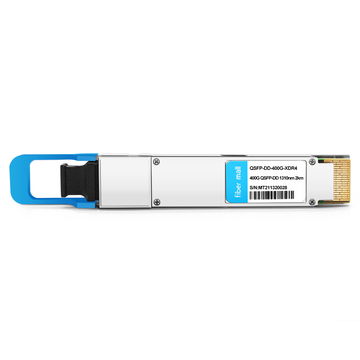

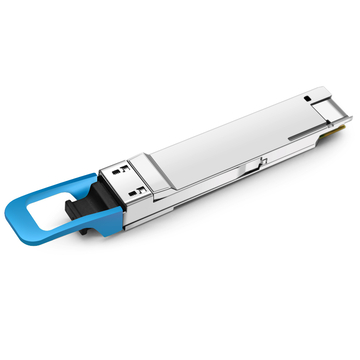

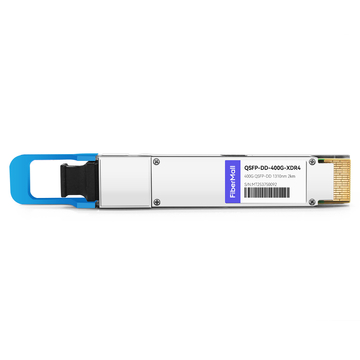

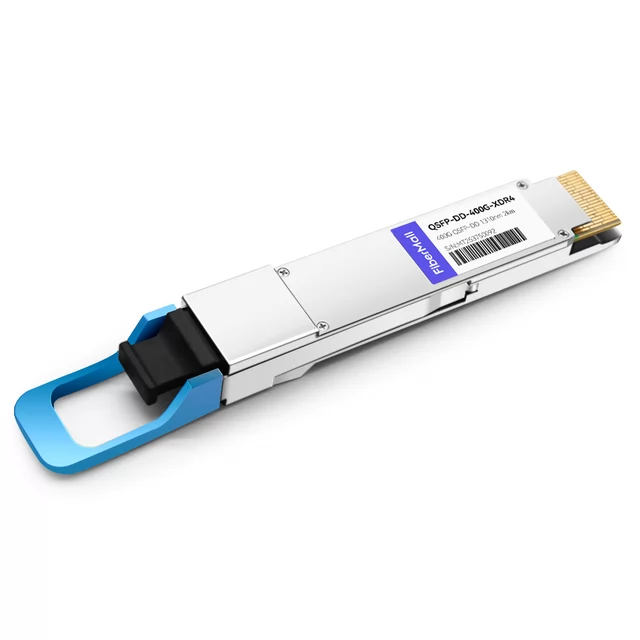

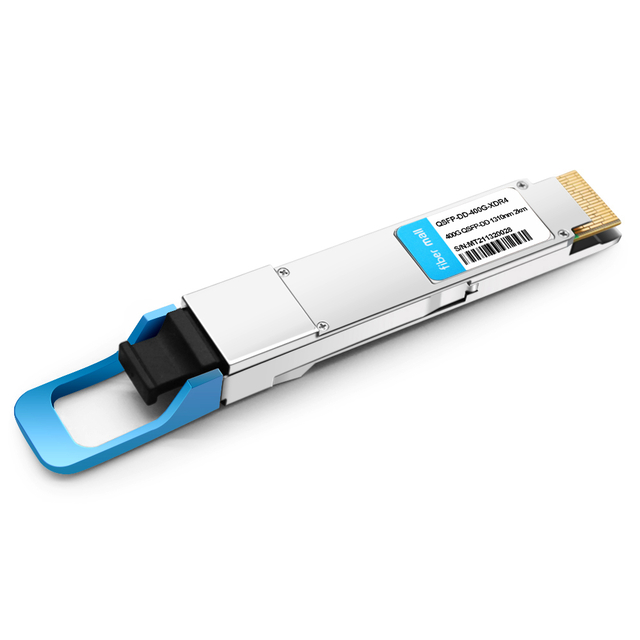

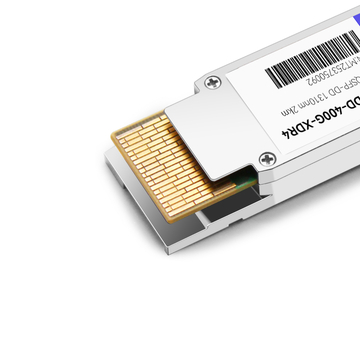

Cisco QDD-4X100G-FR-S Compatible 400G QSFP-DD XDR4 Transceiver features QSFP-DD footprint for up to 2km optical transmission with FEC over single-mode fiber (SMF). The Transceiver complies with IEEE 802.3bs protocol and 400GAUI-8 standard. The 400 Gigabit Ethernet signal is carried over four parallel lanes, one wavelength per lane. It can be used as a 4x100G breakout of QSFP28-FR-100G.
| Cisco Compatible | QDD-4X100G-FR-S | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 1310nm EML | Receiver Type | PIN |
| TX Power | -2.4~+4.0dBm | Receiver Sensitivity | < -6.4dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 12W |
| Protocols | QSFP-DD MSA, 100G Lambda MSA 100G-FR | Application | 400G Ethernet, Data Center Interconnect, Infiniband Interconnects |

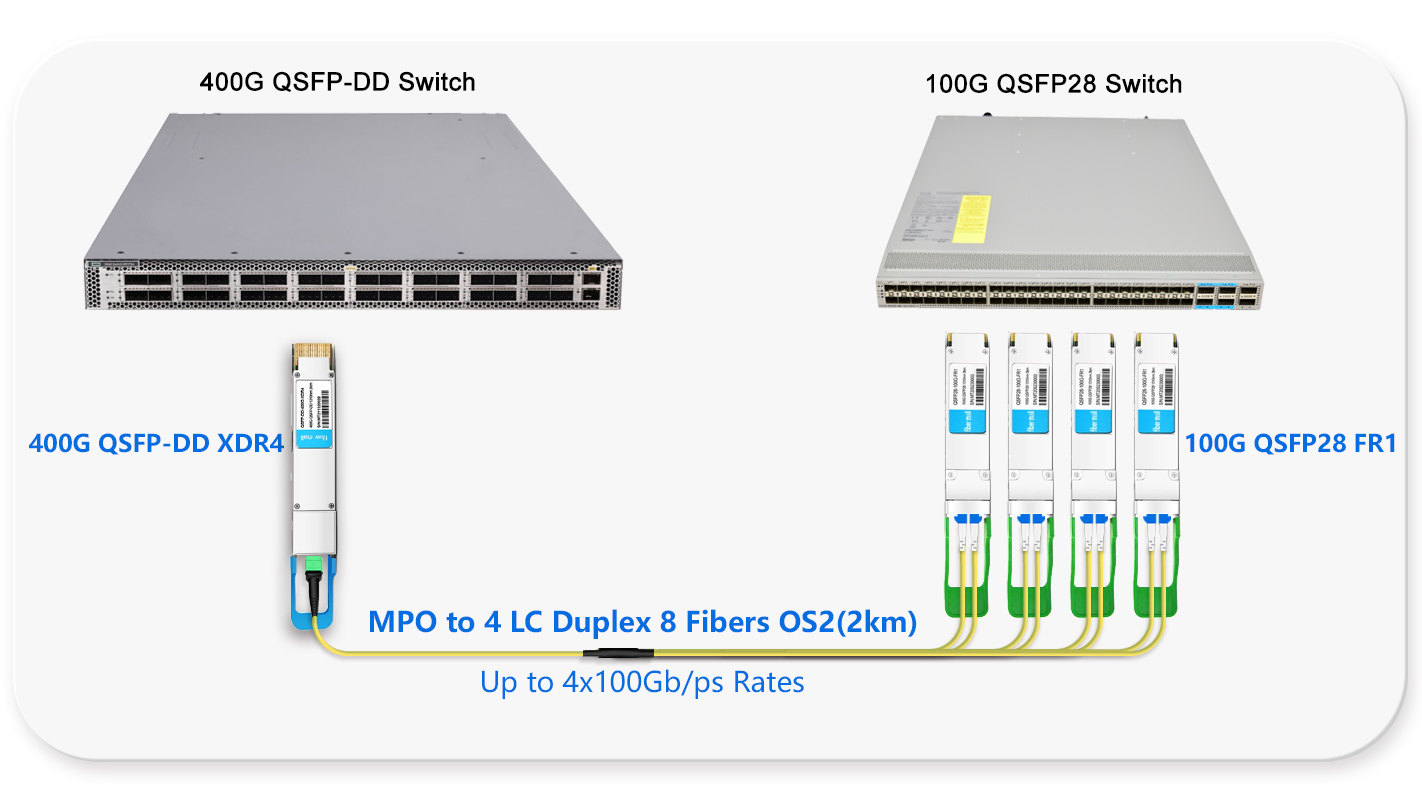

400G Switch to 4x100G Switch Links Using 8 Fibers MPO to LC Breakout Cable
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
|
Cisco Compatible
|
QDD-4X100G-FR-S
|
QDD-400G-DR4-S
|
|
Vendor Name
|
FiberMall
|
FiberMall
|
|
Form Factor
|
QSFP-DD
|
QSFP-DD
|
|
Max Data Rate
|
425Gbps
|
425Gbps
|
|
Wavelength
|
1310nm
|
1310nm
|
|
Max Distance
|
2km
|
500m
|
|
Modulation Format
|
PAM4
|
PAM4
|
|
Host Required
|
FEC
|
FEC
|
|
Connector
|
MTP/MPO-12
|
MTP/MPO-12
|
|
Voltage Supply
|
3.3V
|
3.3V
|
|
Cable Type
|
SMF
|
SMF
|
|
DDM Support
|
Yes
|
Yes
|
|
Transmitter Type
|
1310nm EML
|
1310nm EML
|
|
Receiver Type
|
PIN
|
PIN
|
|
TX Power
|
-2.4~+4.0dBm
|
-2.9~+4.0dBm
|
|
Receiver Sensitivity
|
< -6.4dBm
|
< -5.9dBm
|
|
Operation Temperature
|
0 to 70°C (32 to 158°F)
|
0 to 70°C (32 to 158°F)
|
|
Maximum Power
|
< 12W
|
< 10.5W
|
|
Protocols
|
QSFP-DD MSA,
100G Lambda MSA 100G-FR |
QSFP-DD MSA,
IEEE 802.3bs 400GBASE-DR4 |
|
Application
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
400G Ethernet, Data Center Interconnect, Infiniband Interconnects
|
Product Features
v QSFP-DD MSA and RoHS compliant
v Parallel 4 Optical Lanes
v 100G Lambda MSA 100G-FR Specification compliant
v Up to 2km transmission on single mode fiber (SMF) with FEC
v 8x 53.125Gb/s electrical interface (400GAUI-8)
v Data Rate 106.25Gbps (PAM4) per channel.
v Maximum power consumption 12W
v Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking
