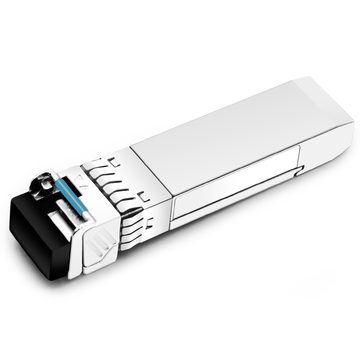

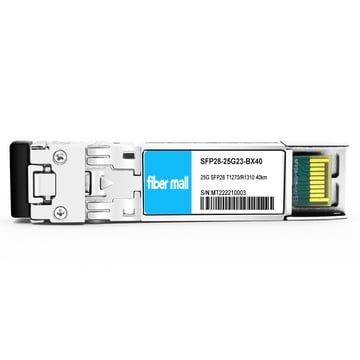

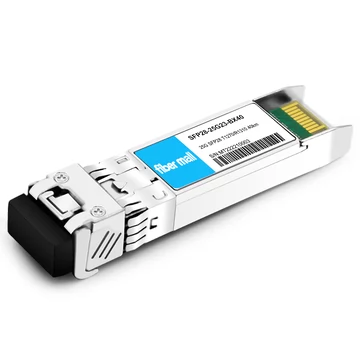

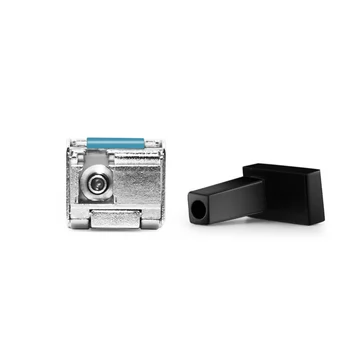

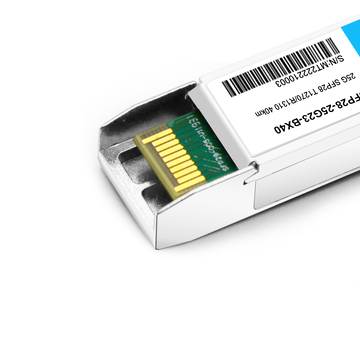

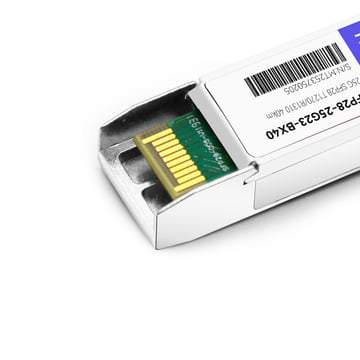

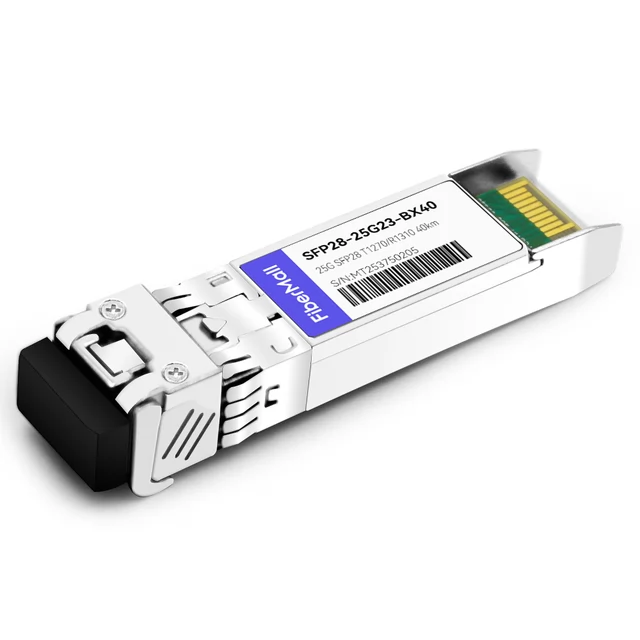

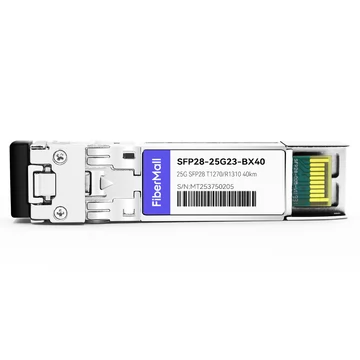

25G SFP28 BIDI SFP28-25G23-BX40 ER optical transceiver module, supports 25Gb/s, and up to 40 km transmission(SMF, TX1270nm/RX1310nm, 40km, LC, DDM)
25G BIDI SFP28 transceivers are designed for bi-directional 25G serial optical data communications by using 1270nm/1330nm. It supports a data rate of 25.78Gbps and a 40km transmission distance with SMF. The modules are suitable for 25G Ethernet and CPRI (option 10) applications, like in 5G mobile networks.
Product Details
| FiberMall P/N | SFP28-25G23-BX40 | Vendor Name | FiberMall |
| Form Factor | SFP28 | Max Data Rate | 25.78 Gbps |
| Wavelength | TX1270nm/RX1310nm | Max Distance | 40km |
| Connector | Simplex LC | Transmitter Type | 1270nm DFB |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 0~+6.0dBm | Receiver Sensitivity | < -17.5dBm |
| Protocols | SFF-8472, SFF-8402, MSA Compliant | Operation Temperature | 0°C~+70°C((32 to 158°F) |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
Keep In Stock
- Fast Delivery
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
Professional Service
- Technical Support
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
- Coding(EEPROM Programming)
![25G BIDI SFP28 ER TX1270nm 40km Optical Transceiver | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
