25G DWDM SFP28 C49 1538.19nm 20km Transceiver | FiberMall

Add to wish

SFP28-DW25G49-20C 25G SFP28 DWDM C49 100GHz 20KM 1538.19nm LC SMF DDM Transceiver Module

Name: SFP28-DW25G49-20C 25G SFP28 DWDM C49 100GHz 20KM 1538.19nm LC SMF DDM Transceiver Module
Brand: fibermall
SKU: 60287
Price: 600.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: SFP28-DW25G49-20C 25G SFP28 DWDM C49 100GHz 20KM 1538.19nm LC SMF DDM Transceiver Module

$ 600.00
Available

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

SKU:60287

$ 600.00

Compatible: FiberMall

DWDM ITU Channel: CH17; CH18; CH19; CH20; CH21; CH22; CH23; CH24; CH25; CH26; CH27; CH28; CH29; CH30; CH31; CH32; CH33; CH34; CH35; CH36; CH37; CH38; CH39; CH40; CH41; CH42; CH43; CH44; CH45; CH46; CH47; CH48; CH49; CH50; CH51; CH52; CH53; CH54; CH55; CH56; CH57; CH58; CH59; CH60; CH61

FM PN:

SFP28-DW25G49-20C

Ship From:

Asia

Shipping:

Free Shipping

to United States Via UPS Express Saver

Estimated delivery time : 3-5 working days. See details

Quantity:

Total Price:

$ 600.00

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

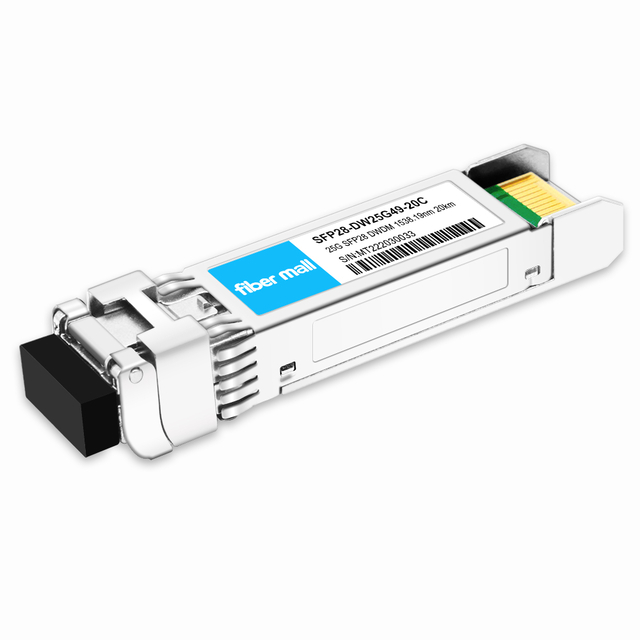

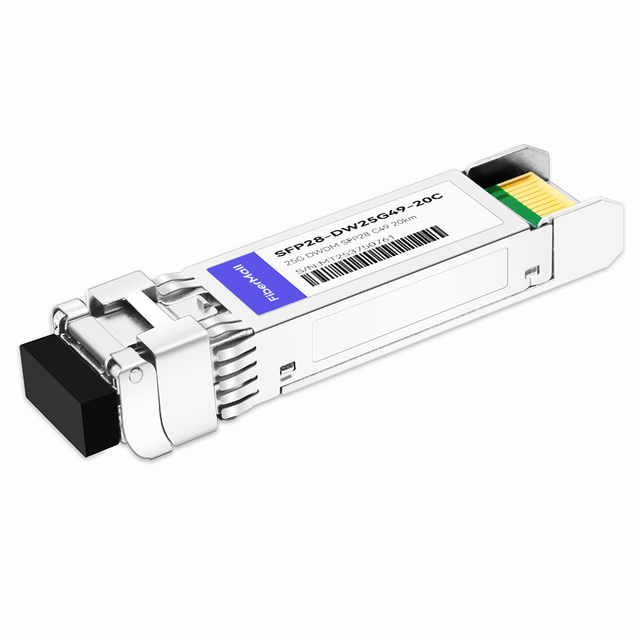

Compatible 25G DWDM SFP28 C49 100GHz Transceiver Module (1538.19nm 20km LC SMF DDM)

The 25G SFP28 DWDM transceiver is designed for use in 25-Gigabit Ethernet links up to 20km over single-mode fiber. The module consists of DWDM EML Laser, APD, and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. This module is designed for single-mode fiber and operates at a nominal wavelength of 100GHz ITU Grid, C-Band DWDM wavelength. The module optical connection is duplex LC and shall be compatible with SFP+ 28Gbps and backward compatible with legacy 10G SFP+ pluggable. A 2-wire interface is used for serial ID, digital diagnostics, and module control functions.

Product Details

FiberMall P/N	SFP28-DW25G49-20C	Vendor Name	FiberMall
Form Factor	SFP28	Max Data Rate	25.78Gbps
Wavelength	1538.19nm	Max Distance	20km
Connector	Duplex LC	Transmitter Type	DWDM EML
Cable Type	SMF	Receiver Type	APD
TX Power	0~+5.0dBm	Receiver Sensitivity	< -14.0dBm
Protocols	MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
