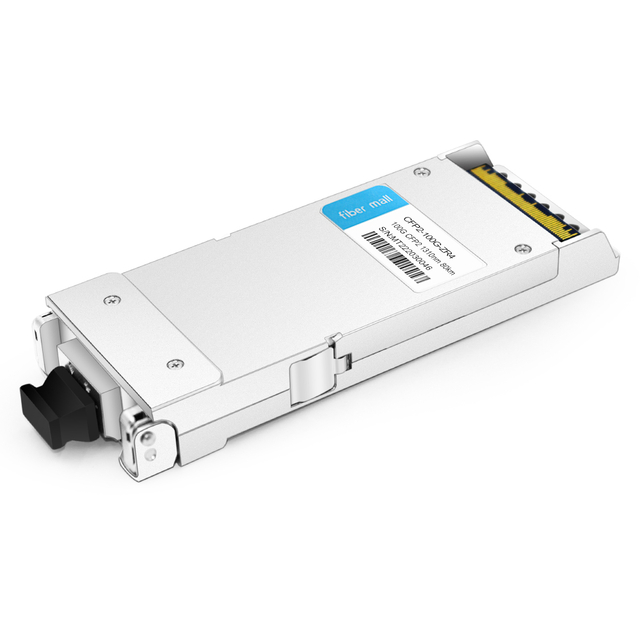

| FiberMall P/N | CFP2-100G-ZR4 | Vendor Name | FiberMall |
| Form Factor | CFP2 | Max Data Rate | 103.1Gbps |
| Wavelength | 1295.56nm,1300.05nm 1304.58nm,1309.14nm | Max Distance | 80km |
| Connector | LC | Transmitter Type | LAN WDM EML |
| Cable Type | SMF | Receiver Type | PIN with SOA |
| TX Power | 0~+6.5dBm | Receiver Sensitivity | < -28dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports 100GBASE ,103.1Gb/s
v Lane bit rate 25.78 Gb/s
v Up to 80km transmission on SMF
v LAN WDM EML laser and PIN receiver with SOA
v High speed I/O electrical interface (CAUI-4)
v MDIO interface with integrated Digital Diagnostic monitoring
v CFP2 MSA package with duplex LC connector
v Single +3.3V power supply
v Maximum power consumption 9W
v Complies with IEEE802.3bm and ITU-T G.959
v Complies with EU Directive 2015/863/EU (RoHS 6/6)
v Application for 100GBASE-ZR4
