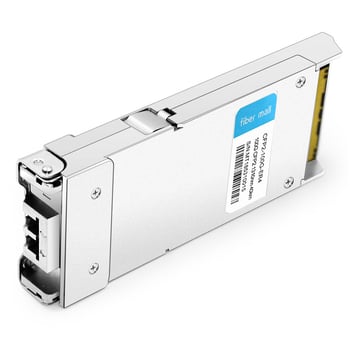

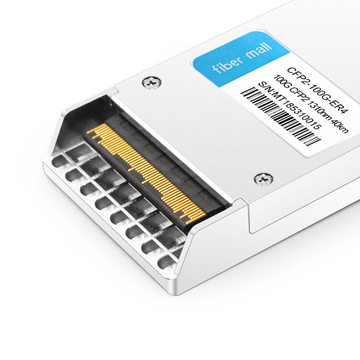

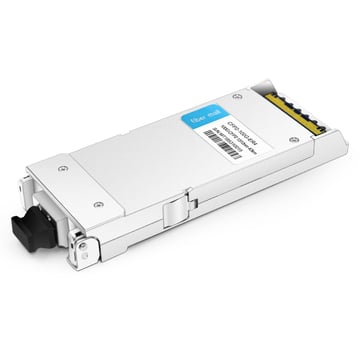

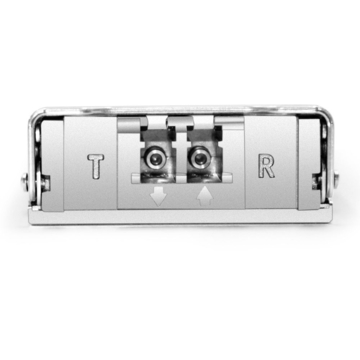

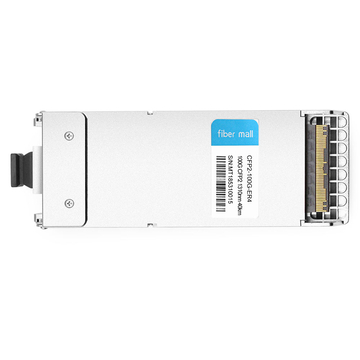

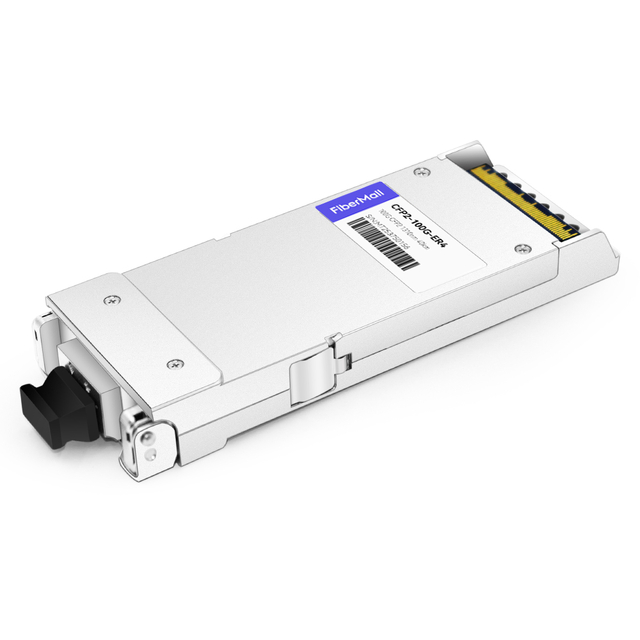

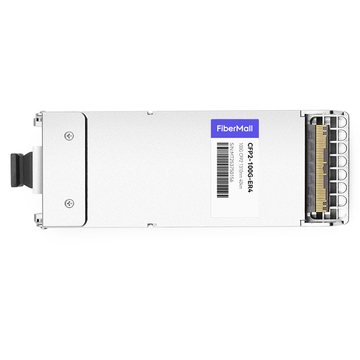

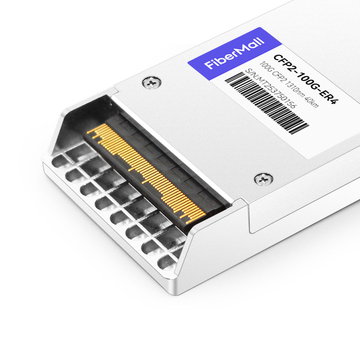

100GBASE-ER4 CFP2 Module supports links up to 40 km over standard duplex single-mode fiber (SMF, G.652) terminated with LC optical connectors. 100 Gb Ethernet signals travel over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. The 100GBASE-ER4 CFP2 module meets IEEE 802.3ba requirements for 100GBASE-ER4 performance and also supports DOM at transmit and receive optical signal levels. The module uses a high-quality EML laser transmitter with a nominal wavelength of 1310 nm and a 1310 nm PIN photodiode receiver.
| FiberMall P/N | CFP2-100G-ER4 | Vendor Name | FiberMall |
| Form Factor | CFP2 | Max Data Rate | 111.8Gbps |
| Wavelength | 1310nm | Max Distance | 40km |
| Connector | LC | Transmitter Type | LAN WDM EML |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -2.9~+2.9dBm | Receiver Sensitivity | < -20.9dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
