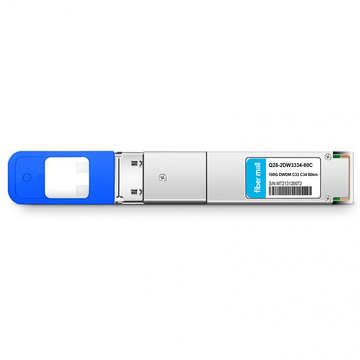

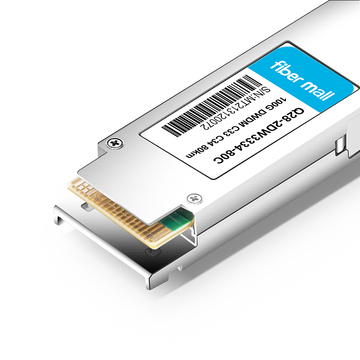

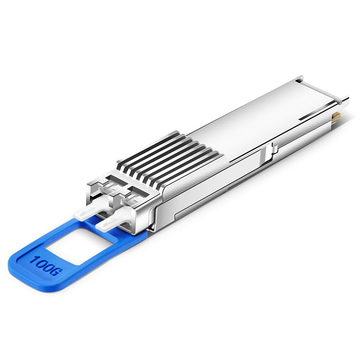

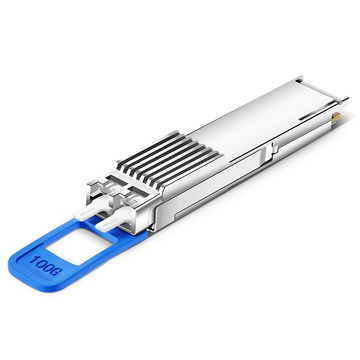

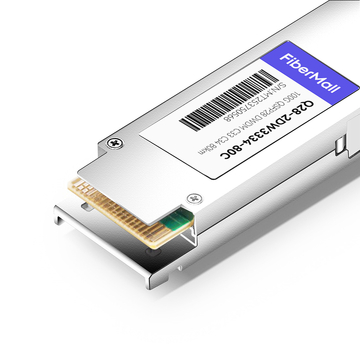

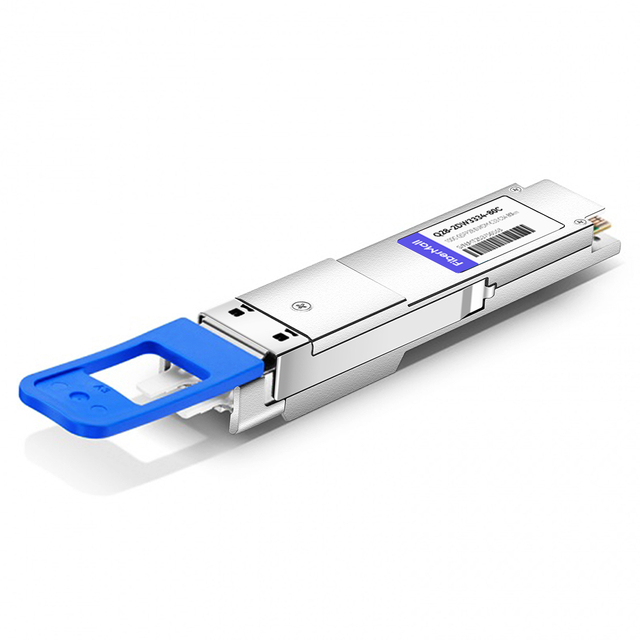

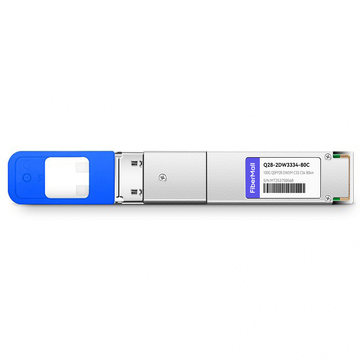

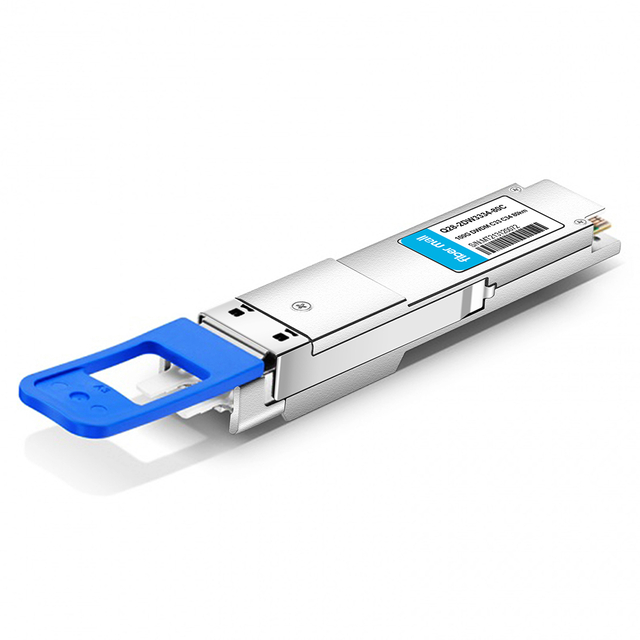

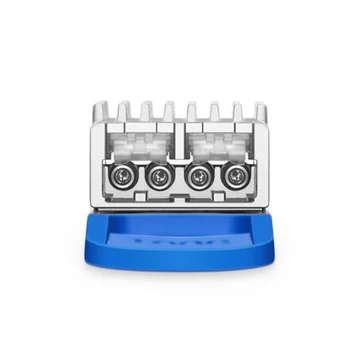

| FiberMall P/N | Q28-2DW3334-80C | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps (2x50G) |
| Wavelength | 1550.92nm 1550.12nm | Max Distance | 80km (With EDFA and DCM) |
| Connector | CS Duplex | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -1.0~+4.0dBm | Receiver Sensitivity | < -12.5dBm |
| DDM Support | YES | FEC Support | YES |
| Protocols | QSFP28 MSA, SFF-8665, SFF-8636 | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Hot-pluggable QSFP28 MSA form factor
v Up to 80km reach for G.652 SMF with transport white box
v Single +3.3V power supply
v Temperature Range 0 to 70°C
v Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA
v Receiver: 2*27.5Gbaud/s Pin-PD ROSA
v 4*25G CAUI4 electrical interface
v Integrated SFEC with high coding gain
v PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible

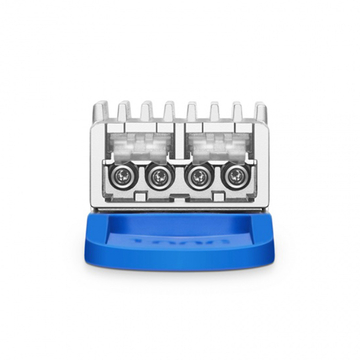

v Dual CS adaptor
v Compatible with RoHS6
Applications
v High bandwidth connectivity for Data Center Interconnection
v 100G Ethernet Metro-Access over DWDM
v P to P Access Network
