{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

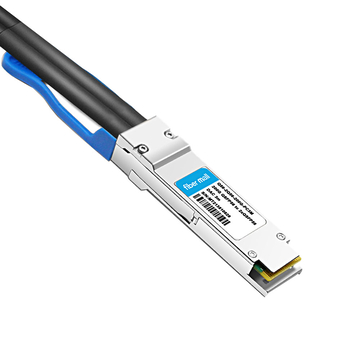

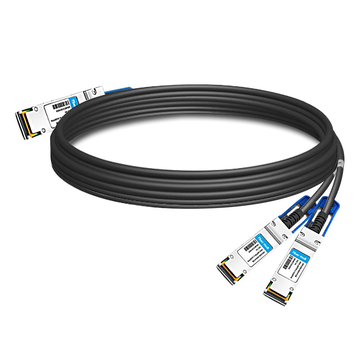

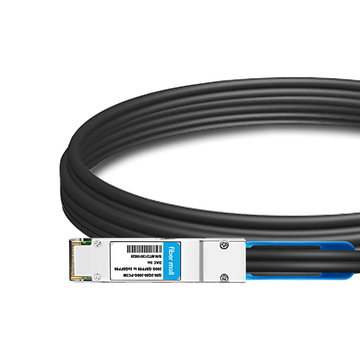

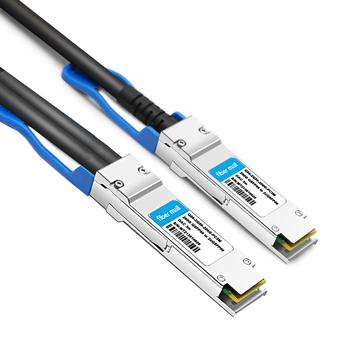

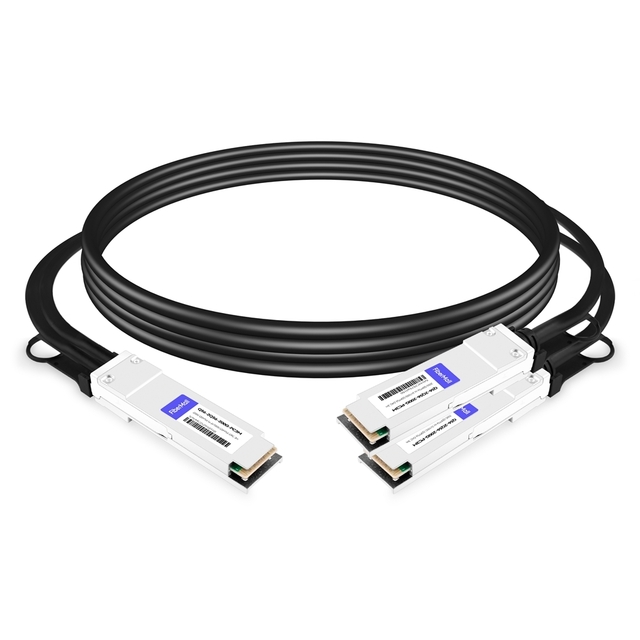

200G QSFP56 to 2x 100G QSFP56 Breakout DAC (Direct Attach Copper Cable) assemblies are designed to support 200G/2x100G Ethernet and InfiniBand HDR/HDR100. This breakout cable complies with IEEE 802.3cd, SFF-8665, and QSFP56 MSA standards. It connects a 200G QSFP56 port on one end and two 100G QSFP56 ports on the other end and is suitable for data centers and HPC (High-Performance Computing).
| FiberMall P/N | Q56-2Q56-200G-PC3M | Vendor Name | FiberMall |
| Form Factor | 200G QSFP56 to 2xQSFP56 | Max Data Rate | 200Gb/s |
| Wire Gages | 30AWG | Cable Length | 3m (10ft) |
| Minimum Bend Radius | 26mm 34mm | Jacket Material | PVC (OFNR) |
| Operating Case Temperature | 0 to 70°C (32 to 158°F) | Modulation Format | PAM4 |
| Protocols | IEEE 802.3cd, SFF-8665 and SFF-8636 | Application | 200G Ethernet and InfiniBand HDR |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Hot-pluggable QSFP56 form factor full-duplex transceiver assembly
v Data rate up to 53.125Gbps (26.5625GBd PAM4) per channel
v 200GAUI-4/100GAUI-2 electrical interfaces
v Compliant with QSFP56 MSA, CMIS 4.0, and IEEE 802.3cd 200GBASE-SR4
v Compliant with IEEE 802.3cd 100GBASE-SR2 and InfiniBand HDR/HDR100
v Supports 200G to 2x 100G Ethernet Interoperability
v Single 3.3V power supply
v Built-in digital diagnostic functionality
v HS-compliant (lead-free)
