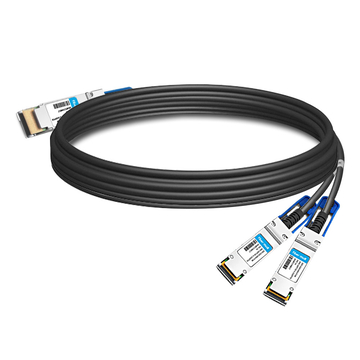

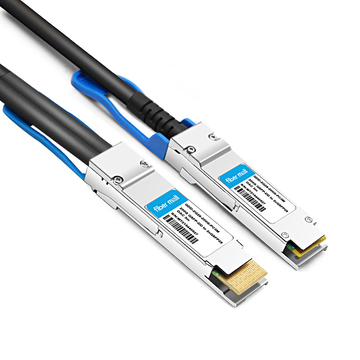

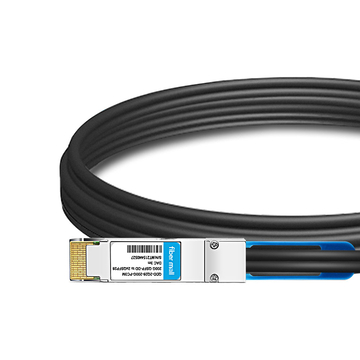

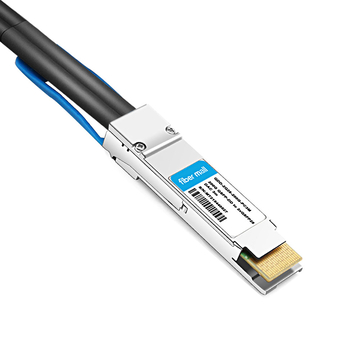

200G QSFP-DD to 2x 100G QSFP28 Breakout AOC (Active Optical Cable) assembly is designed to support 200G/2x100G Ethernet and InfiniBand EDR. This breakout cable complies with IEEE 802.3bj, SFF-8679, and SFF-8636 standards. It provides connectivity of one 200G QSFP-DD port on one end and two 100G QSFP28 ports on the other end, suitable for data center and HPC (High-Performance Computing) links up to 70m (OM3) or 100m (OM4).
| FiberMall P/N | QDD-2Q28-200G-PC3M | Vendor Name | FiberMall |
| Connector | QSFP-DD to 2xQSFP28 | Max Data Rate | 200Gb/s |
| Wire Gages | 30AWG | Cable Length | 3m (10ft) |
| Jacket Material | PVC (OFNR) | Minimum Bend Radius | 35mm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Modulation Format | NRZ |
| Protocols | IEEE 802.3bj, SFF-8679 and SFF-8636 | Application | 200G Ethernet and InfiniBand EDR |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Hot-pluggable QSFP-DD/QSFP28 form factor full-duplex transceiver assembly
v Data rate up to 25.78125Gbps per channel
v Compliant with QSFP-DD MSA and CMIS 4.0
v Compliant with QSFP28 MSA (SFF-8665), SFF-8636 and IEEE 802.3bm 100GBASE-SR4
v Compliant with IEEE 802.3ba 40GBASE-SR4 and InfiniBand QDR/EDR
v Single 3.3V power supply
v Built-in digital diagnostic functionality
v HS-compliant (lead-free)
