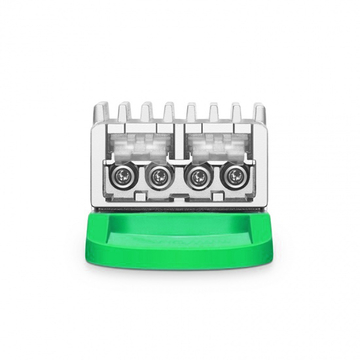

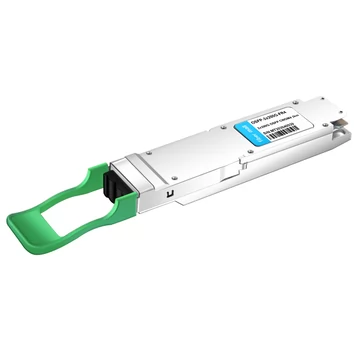

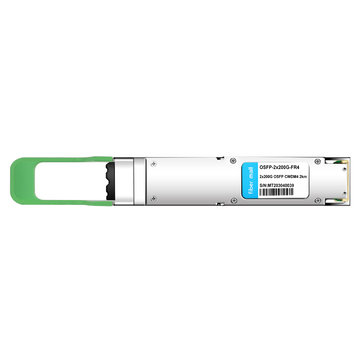

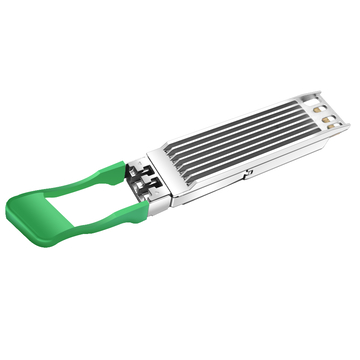

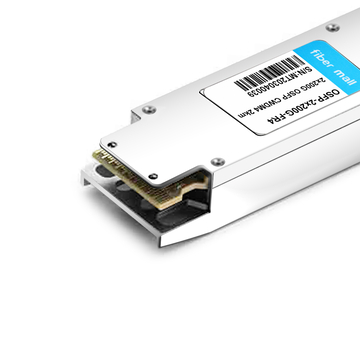

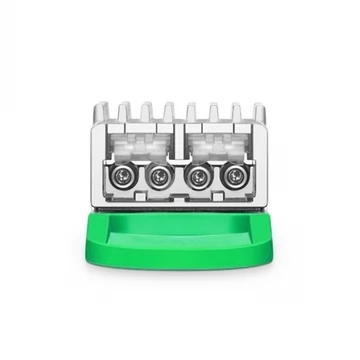

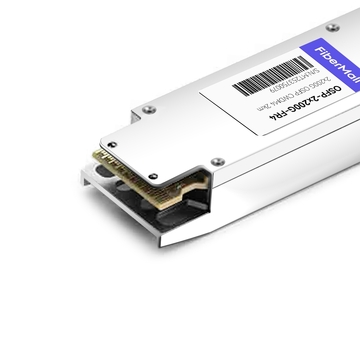

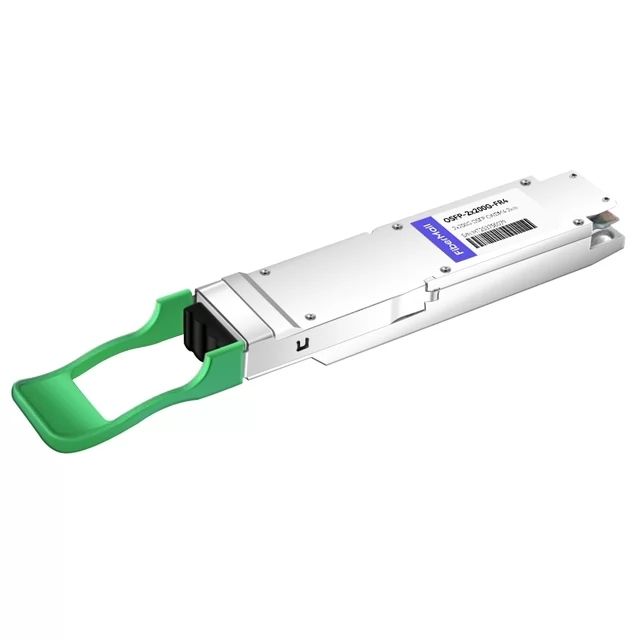

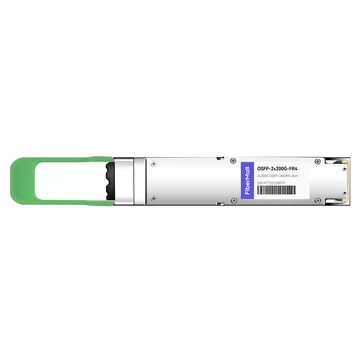

| Arista Networks Compatible | OSFP-400G-2FR4 | Vendor Name | FiberMall |
| Form Factor | OSFP | Max Data Rate | 425Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 2km |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | Duplex CS | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 2x CWDM4 EML | Receiver Type | PIN |
| TX Power | -4.2~+4.7dBm | Receiver Sensitivity | < -6.0dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 12.0W |
| Protocols | OSFP MSA, IEEE 802.3bs | Application | 400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v OSFP MSA compliant
v 2 sets of 4 CWDM lanes MUX/DEMUX design
v Compliant to IEEE 802.3bs Specification
v Up to 2km transmission on single mode fiber (SMF) with FEC
v Operating case temperature: 20 to 60oC
v 8x53.125Gb/s electrical interface (400GAUI-8)
v Data Rate 53.125Gbps (PAM4) per channel.
v Maximum power consumption 12W
v CS duplex connectors
v RoHS compliant
Applications
v Data Center Interconnect
v 400G Ethernet
v Infiniband Interconnects
v Enterprise Networking
