Acacia AC200-D11 Compatible 100G CFP2-DCO Module | FiberMall

Add to wish

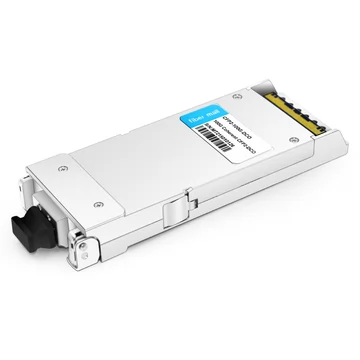

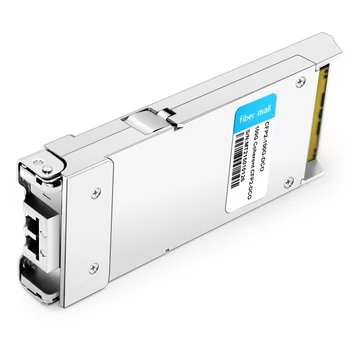

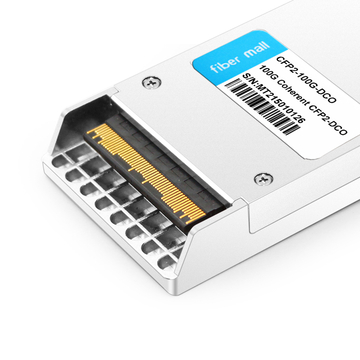

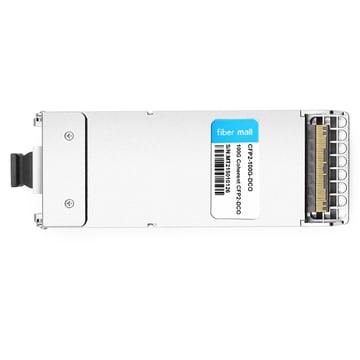

Acacia AC200-D11-xxx Compatible 100G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module

Name: Acacia AC200-D11-xxx Compatible 100G Coherent CFP2-DCO C-band Tunable Optical Transceiver Module
Brand: fibermall
SKU: 18362
Price: 7000.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18362

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; Acacia; Huawei; Juniper Networks; lumentum

Transceiver Type: AC100-M01-250; AC200-D11-xxx; AC200-D13-xxx

FM PN:

CFP2-100G-DCO

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Available for back order. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Acacia AC200-D11-xxx Compatible 100G Coherent CFP2 DCO Transceiver Module (DWDM C Band 50GHz Grid: 191.15-196.1GHz)

The 100G/200G Coherent CFP DCO MSA is a pluggable, digitally coherent C-type optical transceiver designed for high-speed optical networking applications. Since the DSP (Digital Signal Processor) is placed on the transponder line card of the 100G/200G Coherent CFP/CFP2 DCO MSA optical module, it helps to revolutionize the IP routing edge, enabling IP to be transported over DWDM networks - IPoDWDM.

Product Details

Acacia Compatible	AC200-D11-xxx	Vendor Name	FiberMall
Form Factor	CFP2	Reach	MR
Client Side	OTU4/100GE	Line Side Modulation Format	DP-QPSK
Line Side FEC mode	HDFEC/SDFEC	Typical OSNR Sen	15/11dB
TX Min	-10.0dBm	TX Max	+5.0dBm
RX Min	-24.0dBm	RX Max	+5.0dBm
Fiber Connections	LC/UPC Duplex	Power Consumption	<19.0W
Operation Temperature	0 to 70°C (32 to 158°F)	Protocols	CFP2 MSA Compliant

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v Low latency HD-FEC/SD-FEC

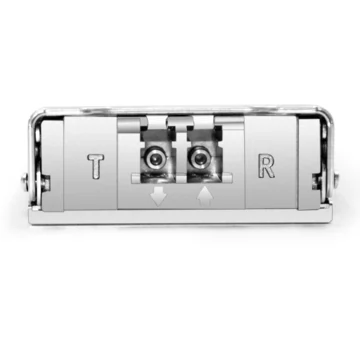

v Duplex LC receptacles

v Full C-band 50GHz ITU-T transmitter

v 3.3V power supply voltage

v Built-in client and line OTN processing

v Compliant with CFP2 MSA

v Used in metro carriers, access, and Cloud/DCI applications
