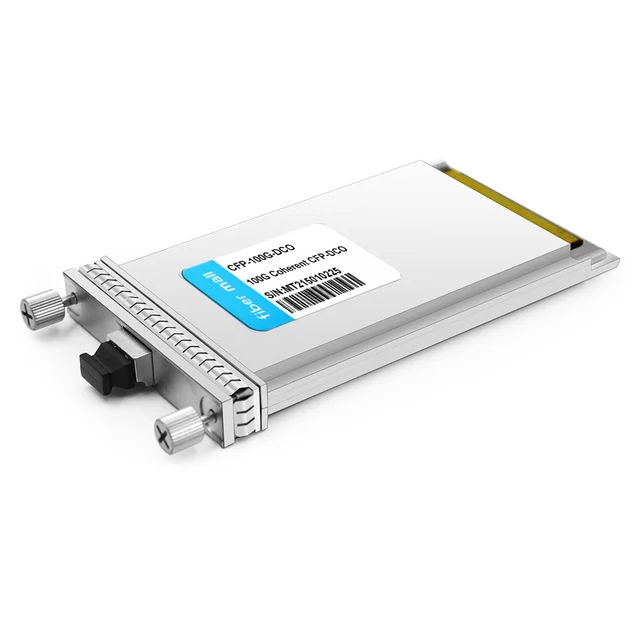

The 100G CFP-DCO is a digital coherent optical transceiver module designed for 100G Ethernet and OTN OTU4 links, supporting extended C-band, polarization diversity coherence detection, and advanced electronic link equalization.
| Acacia Compatible | AC100-M01-250 | Vendor Name | FiberMall |
| Form Factor | CFP | Reach | MR |
| Client Side | OTU4 | Line Side Modulation Format | DP-QPSK |
| Line Side FEC mode | HDFEC/SDFEC | Typical OSNR Sen | 15/12dB |
| TX Min | -15.0dBm | TX Max | +2.0dBm |
| RX Min | -24.0dBm | RX Max | +5.0dBm |
| Fiber Connections | LC/UPC Duplex | Power Consumption | <28.0W |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Protocols | CFP MSA Compliant |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
