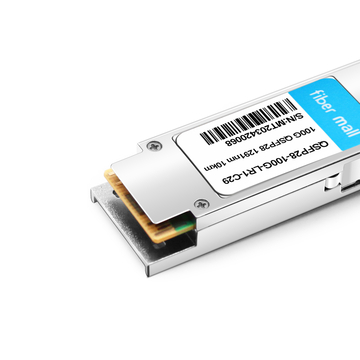

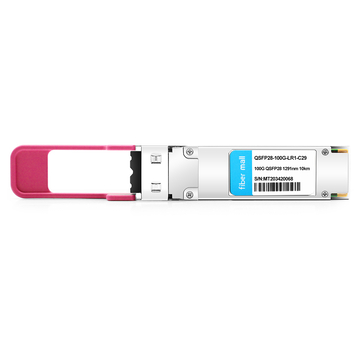

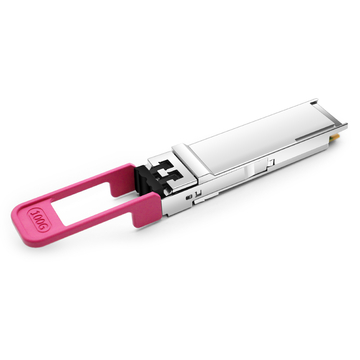

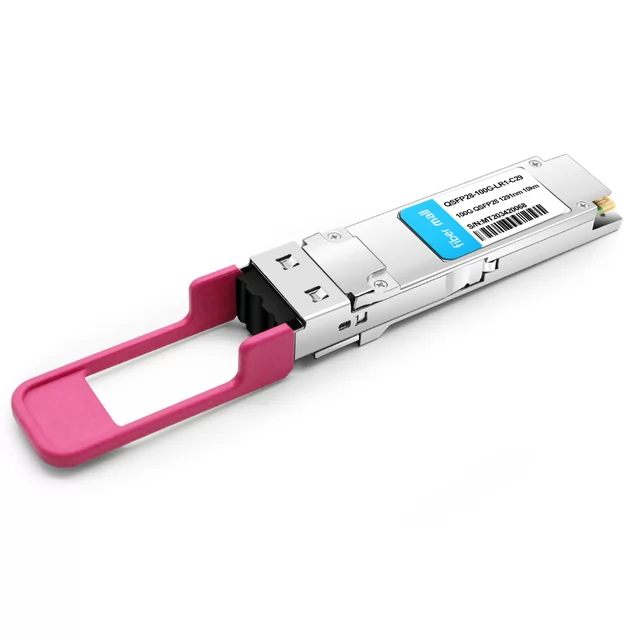

| FiberMall P/N | QSFP28-100G-LR1-C29 | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 100Gbps Single Lambda |
| Wavelength | 1291nm | Max Distance | 10km |
| Connector | Duplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -1.4~+4.5dBm | Receiver Sensitivity | < -6.1dBm |
| DDM Support | YES | FEC Support | YES |
| Protocols | 100G Lambda MSA 100G-LR, 100G Ethernet | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports 100Gbps
v 100G Lambda MSA 100G-LR Specification Compliant
v Single 3.3V Power Supply
v Power Dissipation < 4.5W
v Up to 10km over SMF with FEC
v QSFP28 MSA Compliant
v SFF-8636 Rev 2.10a Compliant
v 4x25G Electrical Interface
v LC Duplex Connector
v Commercial Case Temperature Range of 0°C to 70°C
v I 2 C Interface With Integrated Digital Diagnostic Monitoring
v Safety Certification: TUV/UL/FDA
v RoHS Compliant
Applications
v Data Center Interconnect
v 100G Ethernet
