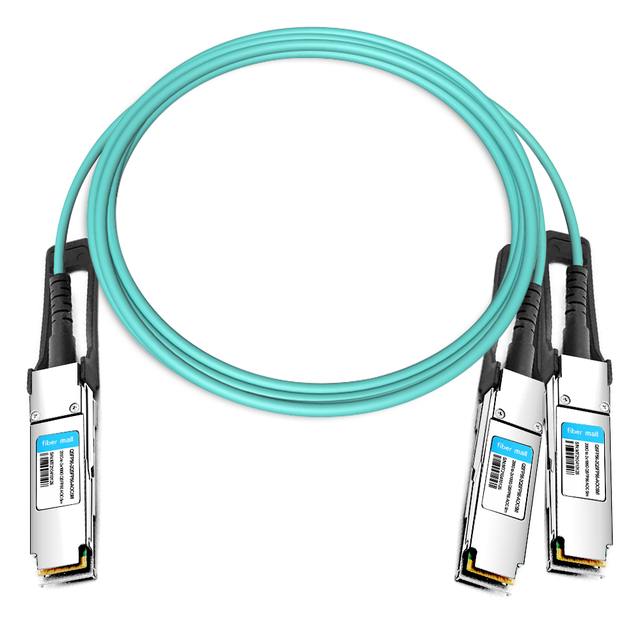

HPE P26659-B22 200G QSFP56 to 2x100G QSFP56 HDR 5m | FiberMall

Add to wish

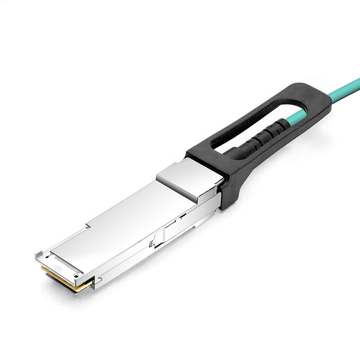

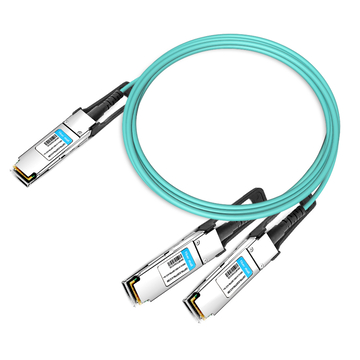

HPE P26659-B22 Compatible 5m (16ft) 200G HDR QSFP56 to 2x100G QSFP56 PAM4 Breakout Active Optical Cable

Name: HPE P26659-B22 Compatible 5m (16ft) 200G HDR QSFP56 to 2x100G QSFP56 PAM4 Breakout Active Optical Cable
Brand: fibermall
SKU: 18327
Price: 610.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18327

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; H3C; HPE; Huawei

Length: 3m (HDR); 5m (HDR); 10m (HDR); 15m (HDR); 20m (HDR); 30m (HDR)

FM PN:

QSFP56-2QSFP56-AOC5M

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Available for back order. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

HPE P26659-B22 Compatible 5m 200G HDR QSFP56 to 2x100G QSFP56 Breakout Active Optical Cable (QSFP56 to QSFP56 AOC Breakout Cable, Active 5m)

200G QSFP56 to 2x 100G QSFP56 Breakout Active Optical Cable for 200G Ethernet links over OM3/OM4/OM5 multimode fiber via a 200G connector on one side and two separate 100GbE connectors on the other side Provides connectivity between system units. This cable connects data signals from 4 MMF (Multimode Fiber) pairs on a single QSFP56 end to dual pairs on each QSFP56 multiport end. This active optical splitter cable complies with QSFP-MSA and 200GBASE-SR4 specifications.

Product Details

HPE Compatible	P26659-B22	Vendor Name	FiberMall
Form Factor	QSFP56 to 2x QSFP56	Max Data Rate	212.5Gb/s
Wavelength	850nm	Cable Length	5m (16.4ft)
Modulation Format	PAM4	Host Required	FEC
Jacket Material	LSZH	Minimum Bend Radius	30mm
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
Operating Case Temperature	0 to 70°C (32 to 158°F)	Voltage Supply	3.3V
Protocols	QSFP56 MSA, CMIS IEEE 802.3cd 200GBASE-SR4	Maximum Power	< 5W (200G QSFP56), < 3W (100G QSFP56)
Connector	Fiber Optic Cable	Application	200GBASE-SR4 to 2x 100GBASE-SR2 Ethernet, 200G InfiniBand HDR

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v High-density QSFP56 MSA-compliant connectors

v 4 channels full-duplex active optical cables

v 4x uncooled 850nm VCSEL array and PIN photo-detector array (50G PAM4)

v Compliant with QSFP56 MSA, CMIS and IEEE 802.3cd 200GBASE-SR4

v Data rate up to 212.5Gbps

v Length up to 70m (OM3) or 100m (OM4/OM5) over MMF

v Power consumption < 5W (200G QSFP56), < 3W (100G QSFP56)

v 3.3V power supply voltage

v RoHS compliant (lead free)

v Application for 200GBASE-SR4 to 2x 100GBASE-SR2 Ethernet
