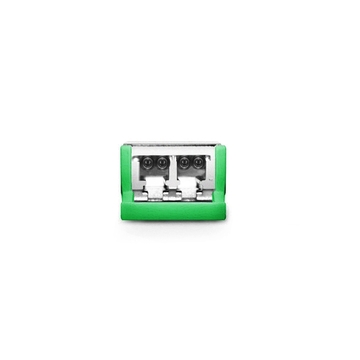

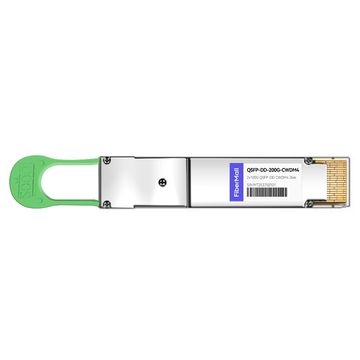

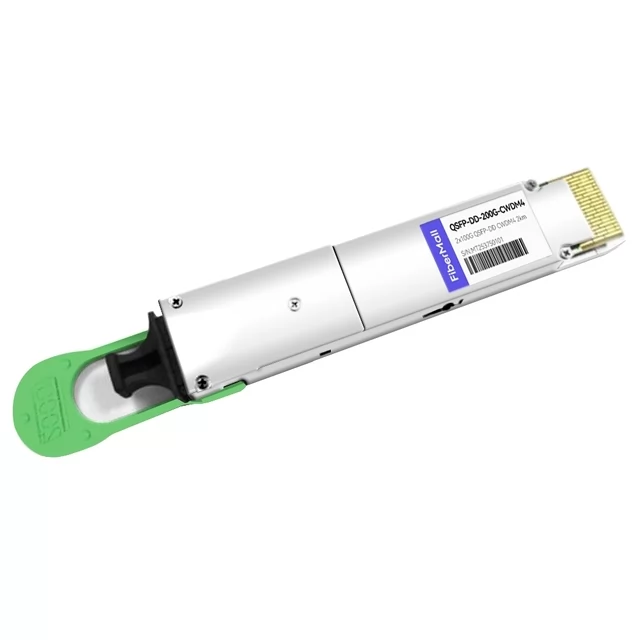

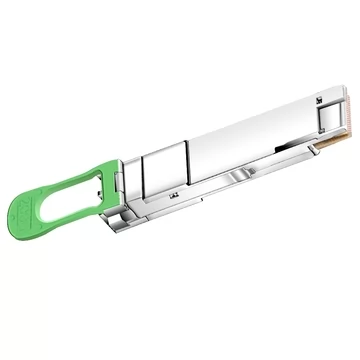

2x100G QSFP-DD CWDM4 optical transceiver modules are suitable for data centers and HPC (High-Performance Computing) links up to 2km over single-mode fiber. It also features outstanding BER and high sensitivity because of its reliable design and excellent coupling efficiency.
| Cisco Compatible | QDD-2X100-CWDM4-S | Vendor Name | FiberMall |
| Form Factor | QSFP-DD | Max Data Rate | 212.5Gbps |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm | Max Distance | 2km |
| Connector | Duplex CS | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 8 x CWDM – Uncooled DFB Laser | Receiver Type | PIN |
| TX Power | Each Lane | Receiver Sensitivity | < -11.5dBm |
| Operation Temperature | 0 to 70°C (32 to 158°F) | Maximum Power | < 7W |
| Protocols | IEEE 802.3bm/100G CWDM4 MSA, QSFP-DD MSA Type 2 | Application | 100G Ethernet |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Hot-pluggable QSFP-DD form factor
v 8 x CWDM – Uncooled DFB Laser (1271/1291/1311/1331nm)
v PIN Photo Detector
v 0°C to +70°C case operating temperature range
v 2km transmission with SMF
v 3.3V power supply
v Contain Clock Data Recovery (CDR) - Clock and Data Recovery
v Power consumption < 7W
v Compliant with QSFP-DD MSA Type 2
v Compliant with IEEE 802.3bm/100G-CWDM4 MSA Specification
v Digital diagnostic functions (Via I2C)
v Compliant with RoHS
v Compliant with UL & TUV
v Dual CS connector module receptacle
Applications
v 100 Gigabit Ethernet
