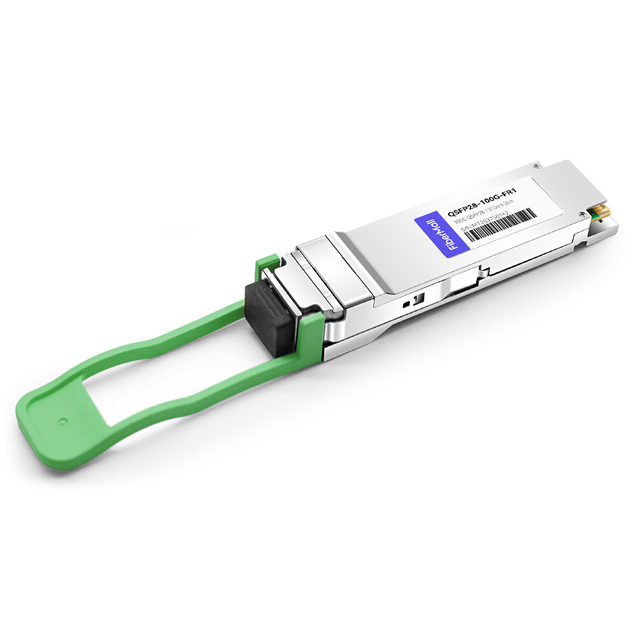

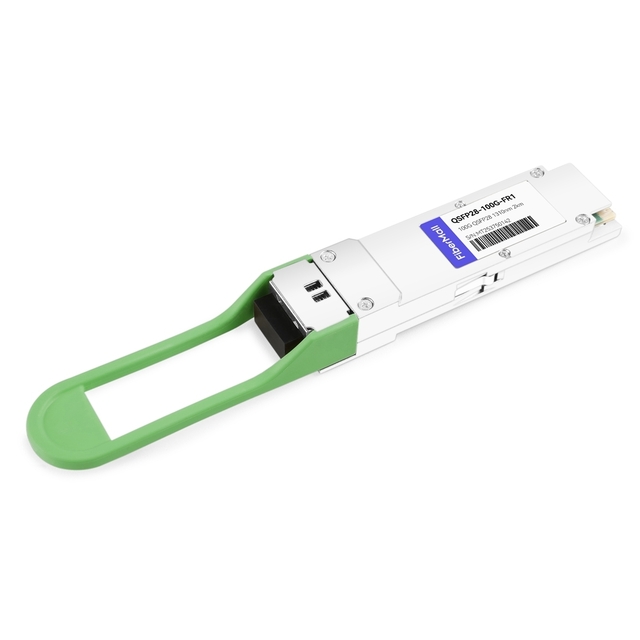

Arista QSFP-100G-FR Compatible 100G QSFP FR Transceiver | FiberMall

Add to wish

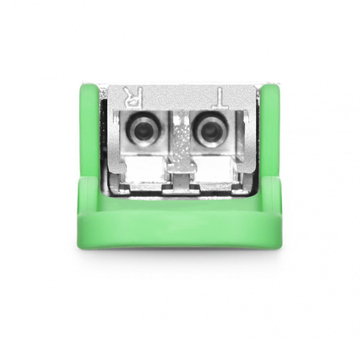

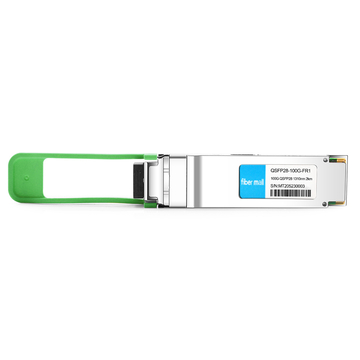

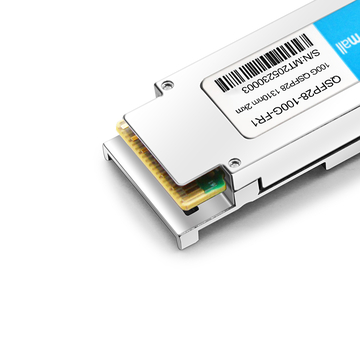

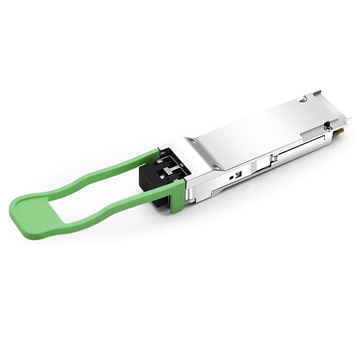

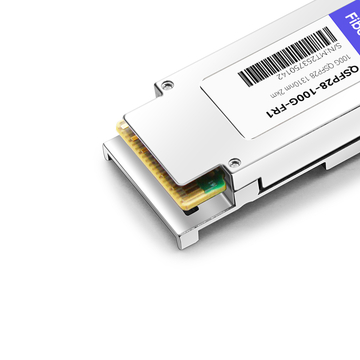

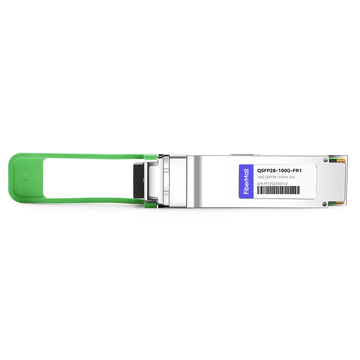

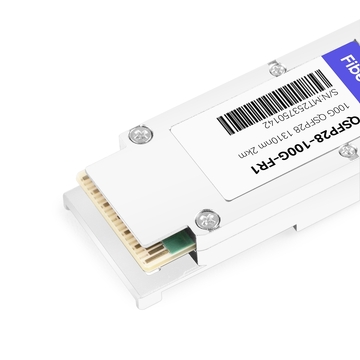

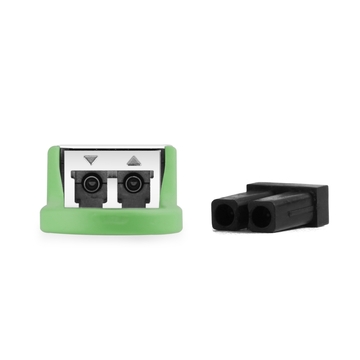

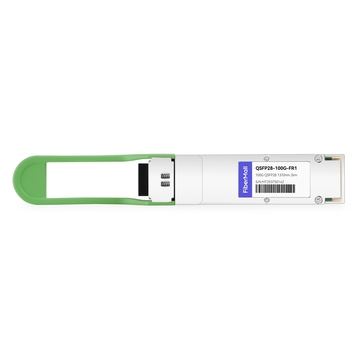

Arista Networks QSFP-100G-FR Compatible 100G QSFP28 Single Lambda FR 1310nm 2km LC SMF with FEC DDM Optical Transceiver

Name: Arista Networks QSFP-100G-FR Compatible 100G QSFP28 Single Lambda FR 1310nm 2km LC SMF with FEC DDM Optical Transceiver
Brand: fibermall
SKU: 17964
Price: 215.00 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:17964

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; AVAGO (Broadcom); Arista Networks; DELL; Hpe Aruba; Huawei; Juniper

Transceiver Type: QSFP-100-XSR4; QSFP-100G-SR4; QSFP-100G-CWDM4; QSFP-100G-LRL4; QSFP-100G-DR; QSFP-100G-PSM4; QSFP-100G-4WDM-10; QSFP-100G-FR; QSFP-100G-LR; QSFP-100G-LR4; QSFP-100G-SWDM4; QSFP-100G-SRBD; Q28-100G23-BX10-AN; Q28-100G32-BX10-AN; Q28-100G23-BX20; Q28-100G32-BX20; QSFP-100G-ERL4; QSFP-100G-ER

Transmission Mode: Single Lambda

FM PN:

QSFP28-100G-FR1

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Arista Networks QSFP-100G-FR Compatible 100G QSFP28 PAM4 Single Lambda FR Optical Transceiver (1310nm SMF 2km LC with FEC DDM)

The module incorporates one channel optical signal, on 1310nm center wavelength, operating at a 50Gbaud data rate. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and the optical interface is compliant with IEEE 802.3cd and 100G Lambda MSA with a Duplex LC connector.

Product Details

Arista Networks Compatible	QSFP-100G-FR	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	100Gbps Single Lambda
Wavelength	1310nm	Max Distance	2km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
TX Power	-2.4~+4.0dBm	Receiver Sensitivity	< -4.5dBm
DDM Support	YES	FEC Support	YES
Protocols	100G Lambda MSA 100G-FR, 100G Ethernet	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP28-100G-LR1	QSFP28-100G-FR1	QSFP28-100G-DR1
Arista Networks Compatible	QSFP-100G-LR	QSFP-100G-FR	QSFP-100G-DR
Vendor Name	FiberMall	FiberMall	FiberMall
Form Factor	QSFP28	QSFP28	QSFP28
Max Data Rate	100Gbps Single Lambda	100Gbps Single Lambda	100Gbps Single Lambda
Wavelength	1310nm	1310nm	1310nm
Max Distance	10km	2km	500m
Connector	Duplex LC	Duplex LC	Duplex LC
Transmitter Type	EML	EML	EML
Cable Type	SMF	SMF	SMF
Receiver Type	PIN	PIN	PIN
TX Power	-1.4~+4.5dBm	-2.4~+4.0dBm	-2.4~+4.0dBm
Receiver Sensitivity	< -4.5dBm	< -4.5dBm	< -4.4dBm
DDM Support	YES	YES	YES
FEC Support	YES	YES	YES
Protocols	100G Lambda MSA 100G-LR, 100G Ethernet	100G Lambda MSA 100G-FR, 100G Ethernet	IEEE802.3cd 100GBASE-DR, 100G Ethernet, MSA Compliant
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)

Product Features

v QSFP28 MSA compliant

v Supports 53.125Gbaud

v 100G Lambda MSA 100G-FR Specification compliant

v Up to 2km transmission on single mode fiber (SMF) with FEC

v 4x25G electrical interface (OIF CEI-28G- VSR)

v Maximum power consumption 4.5W

v RoHS compliant

v Supports Data Center Interconnect, 100G Ethernet, and Enterprise networking.

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Datasheet

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

Patrick

Verified Purchase

5.0

2024-06-08

When I had questions during the purchase process, the customer service responded quickly and had extensive knowledge, resolving all my concerns.

5 Helpful vote Comments

Leo

Verified Purchase

5.0

2024-05-22

This module is reasonably priced, and I haven't encountered any issues with it so far.

4 Helpful vote Comments

Tiffany

Verified Purchase

5.0

2024-04-17

I recently integrated the QSFP28-100G-FR1 into our data center, and the performance has been outstanding. The installation was straightforward, and the transceiver seamlessly connected with our Cisco switches. The 2km reach over single-mode fiber is perfect for our setup, and the digital diagnostics feature allows us to monitor real-time performance, which adds a layer of reliability to our network operations.

5 Helpful vote Comments

여성재

Verified Purchase

5.0

2023-09-30

Overall, it's pretty good.

5 Helpful vote Comments

E***m

United States

Verified Purchase

5.0

2023-06-24

These transceivers are brand new, well packaged and undamaged. Used them successfully in our switch and my switch has linked and started transmitting data through the SMF.
