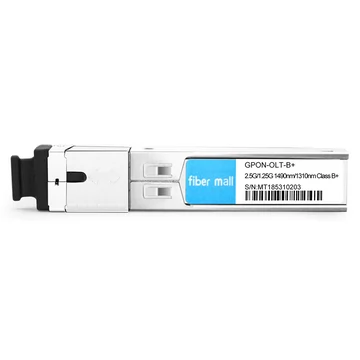

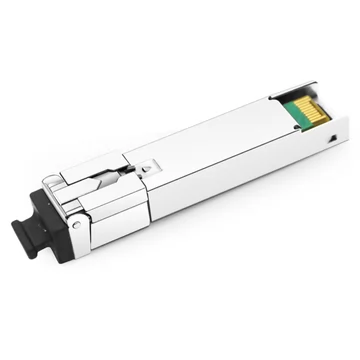

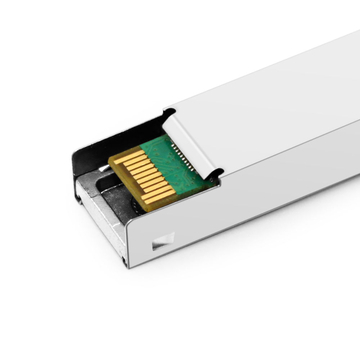

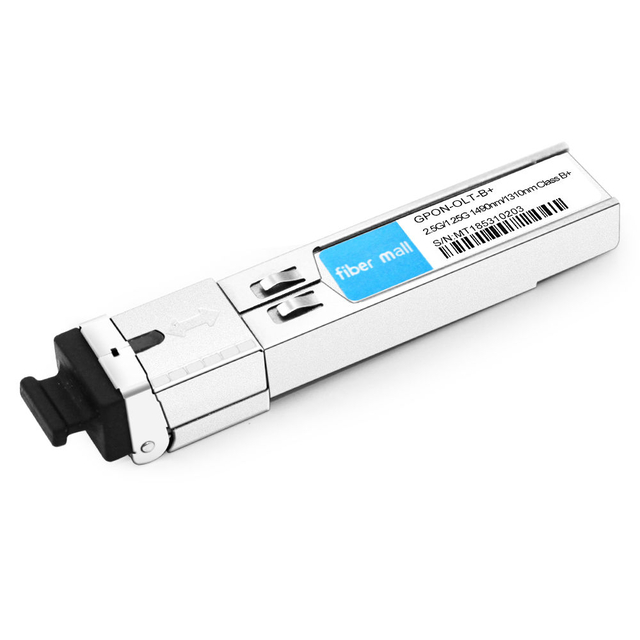

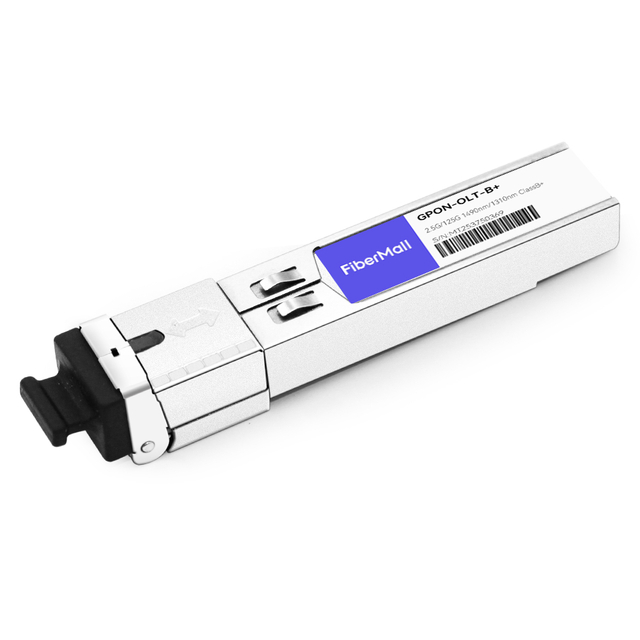

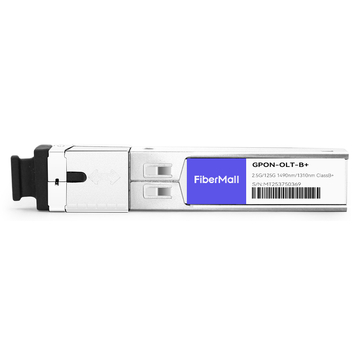

Huawei GPON-OLT-CLASS B+ Compatible GPON OLT SFP TX-2.5G/RX-1.25G TX-1490nm/RX-1310nm Class B+ 20km SC SMF DDM Transceiver Modules

Add to wish

16%

OFF

Huawei GPON-OLT-CLASS B+ Compatible GPON OLT SFP TX-2.5G/RX-1.25G TX-1490nm/RX-1310nm Class B+ 20km SC SMF DDM Transceiver Modules

Name: Huawei GPON-OLT-CLASS B+ Compatible GPON OLT SFP TX-2.5G/RX-1.25G TX-1490nm/RX-1310nm Class B+ 20km SC SMF DDM Transceiver Modules
Brand: fibermall
SKU: 17833
Price: 27.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:17833

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Alcatel-Lucent; Calix; Dasan Zhone; Huawei; NOKIA; Ubiquiti; ZTE

Transceiver Type: GPON-OLT-CLASS B+; GPON-OLT-CLASS C+; GPON-OLT-CLASS C++

FM PN:

GPON-OLT-B+

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Huawei GPON-OLT-CLASS B+ Compatible TX-2.5G/RX-1.25G GPON OLT SFP Transceiver Modules (TX-1490nm/RX-1310nm SMF Class B+ 20km SC DDM)

Product Details

Huawei Compatible	GPON-OLT-CLASS B+	Vendor Name	FiberMall
Form Factor	SFP	Max Data Rate	TX-2.5G/RX-1.25G
Wavelength	TX 1490nm/RX 1310nm	Max Distance	20km

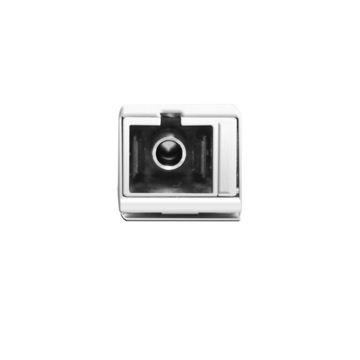

Connector	Simplex SC	Transmitter Type	1490nm DFB
Cable Type	SMF	Receiver Type	APD
TX Power	+1.5~+5.0dBm	Receiver Sensitivity	< -28.0dBm
Protocols	MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability

Rigorous Industrial Product Testing

Optical communication products belong to industrial products, which require high stability and reliability. FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

EMI Testing

Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF (Mean Time between Failures) testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing in system

PON Network Topology

Application Diagram of PON Network

GPON OLT SFP

Product Features

v Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application

v 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver

v Small Form Factor Pluggable package with SC/UPC Connector

v Support Class B+ 17~32dB attenuation range application (With FEC)

v Reset burst-mode receiver design support more than 15dB dynamic range

v Single 3.3V power supply

v Digital diagnostic monitoring interface

v Digital burst RSSI function to monitor the input optical power level

v LVPECL-compatible data input/output interface

v LVTTL transmitter disables the control

v LVTTL transmitter laser fault alarm

v LVTTL receiver Signal Detect (SD) indication response within 50ns

v Low EMI and excellent ESD protection

v Class I laser safety standard IEC-60825 compliant

v RoHS-6 compliance

Applications

v Gigabit-capable Passive Optical Networks (GPON) Class B+ 20Km 17~32dBattenuation range

Standards

v Complies with SFP Multi-Source Agreement (MSA) SFF-8074i

v Complies with SFF-8472 Rev 9.5

v Complies with ITU-T G.984.2 Amendment 2

v Complies with FCC 47 CFR Part 15, Class B

v Complies with FDA 21 CFR 1040.10 and 1040.11
