{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

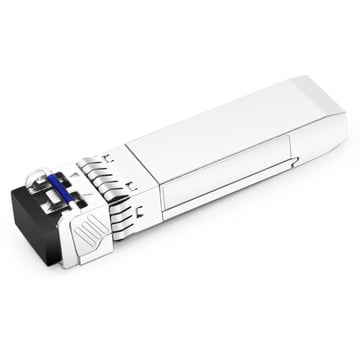

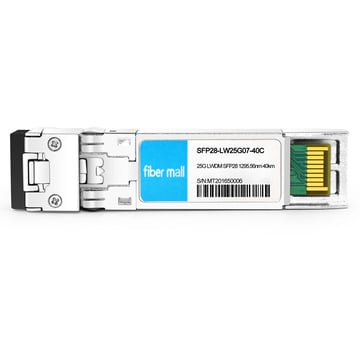

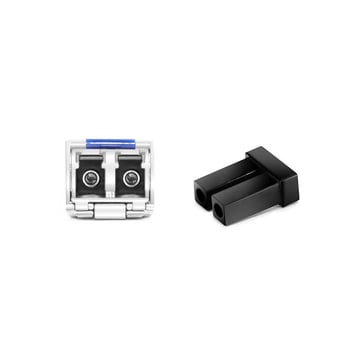

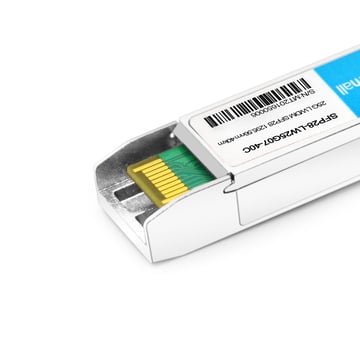

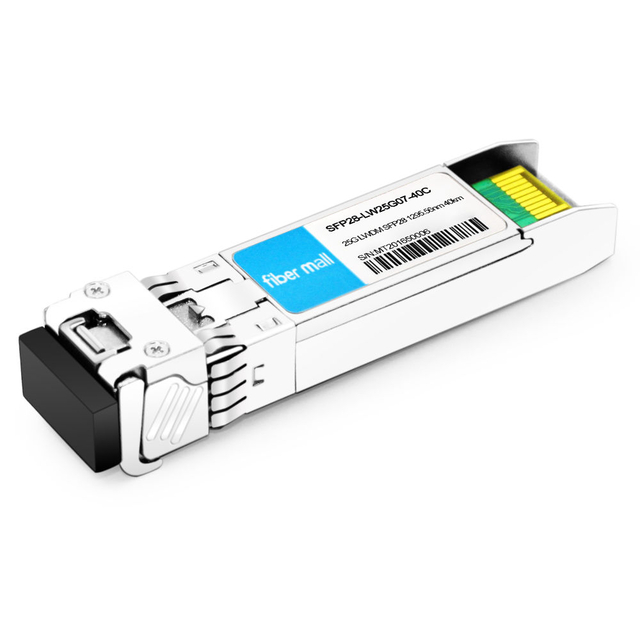

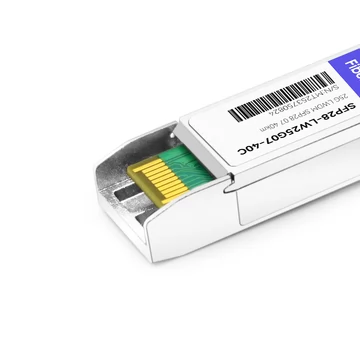

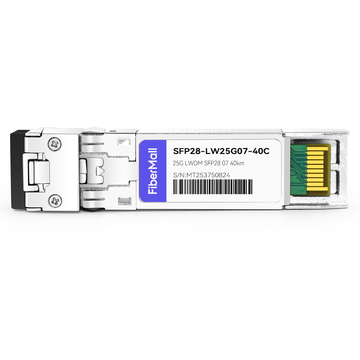

The 25G SFP28 LWDM transceiver provides up to 40km of throughput over single-mode fiber (SMF) using 1270nm wavelength through LC duplex connectors. It fully complies with IEEE802.3ba standards. The full name of LWDM is LAN WDM. The 25G SFP28 LWDM module has twelve wavelengths and belongs to the O-band. Among them, 8 wavelengths are standard wavelengths with 800Hz band spacing, and the wavelengths of the remaining 4 25G LWDM (O-band DWDM) transceivers are multiplexed with the wavelengths of 25G SFP28 CWDM transceivers (1269.23nm, 1332.41nm, 1313.73nm, 1291.10nm).
| FiberMall P/N | SFP28-LW25G07-40C | Vendor Name | FiberMall |
| Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
| Wavelength | 1295.56nm | Max Distance | 40km |
| Connector | Duplex LC | Transmitter Type | EML Laser |
| Cable Type | SMF | Receiver Type | APD Receiver |
| TX Power | 0~+6.0dBm | Receiver Sensitivity | < -19.0dBm |
| Protocols | MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
