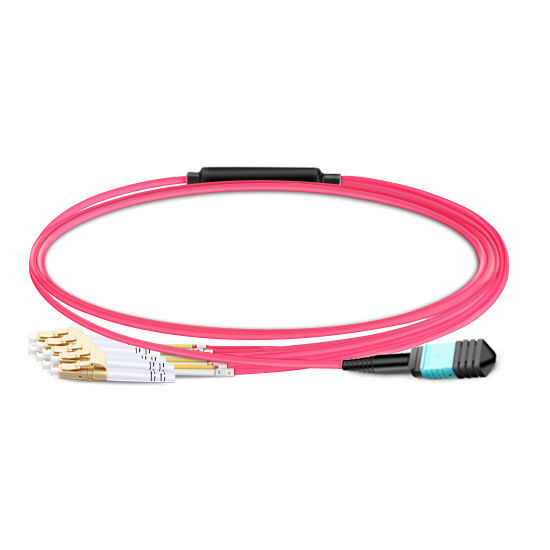

8 Fibers MPO to LC Breakout Cable Type B 3m | FiberMall

13%

OFF

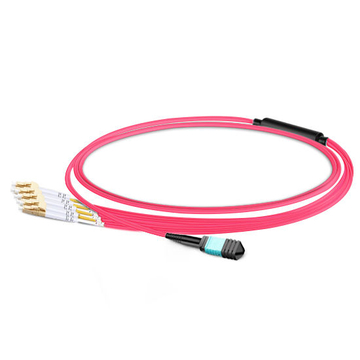

3m (10ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet

Add to wish

13%

OFF

3m (10ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet

Name: 3m (10ft) MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet
Brand: fibermall
SKU: 50146
Price: 27.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:50146

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Length: 1m; 2m; 3m; 5m; 7m; 10m

FM PN:

MPO8LCFLOM4B03

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

8 Fibers MPO to LC Breakout Cable, 3M (Multimode OM4 50/125 MPO Fanout Cable)

Product Details

Connector A	MPO Female	Connector B	LC UPC Duplex
Fiber Type	OM4 50/125μm Multimode	Wavelength	850/1300nm
Fiber Count	8 Fibers	Distance	3m (10ft)
Glass Fiber	Corning ClearCurve®	Cable Jacket	LSZH
MPO Connector IL	0.75dB Max (0.35dB Typ.)	LC Connector IL	≤0.2dB
MPO Connector RL	≥20dB	LC Connector RL	≥20dB
Attenuation at 850nm	≤2.3 dB/km	Attenuation at 1300nm	≤0.6 dB/km
Cable Diameter	3.0mm	Fiber Color	Aqua/Violet
Fan-Out Diameter	2.0mm	Minimum Bend Radius	7.5mm
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Operating Temperature	-10°C to +70°C	Storage Temperature	-40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. FiberMall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Specifications

Connectors

Fiber Count

8 fibers

MPO-LC Harness Cables

12 fibers

MPO Trunk Cables / MPO-LC Harness Cables

24 fibers

MPO Trunk Cables

Fiber Type

: OM3 50/125 MMF; Corning ClearCurve Multimode Fiber

: OM4 50/125 MMF; Corning ClearCurve Multimode Fiber

: OS2 9/125 SMF; Corning SMF-28 Ultra Optical Fiber

Gender Type

: MPO Male With Pins

: MPO Female Without Pins

Assembly Structure Schematic Diagram

: 8 Fibers MPO-LC Harness Cables

: 12 Fibers MPO-LC Harness Cables

: 24 Fibers MPO-LC Harness Cables

Packaging & Labeling

: Single Package

: Small Quantity Package

: Bulk quantity package

MPO Breakout Cable
