3m (10ft) 12 Fibers Female to Female Elite MTP Trunk Cable Polarity B LSZH OS2 9/125 Single Mode

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:50014
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Length
1m
2m
3m
5m
7m
10m
FM PN:
MTP12FLOS2BA03
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

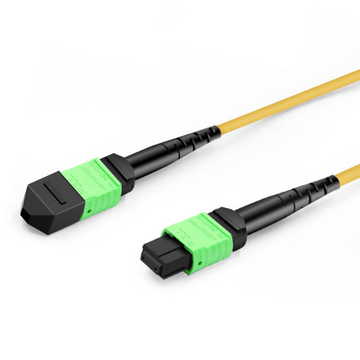

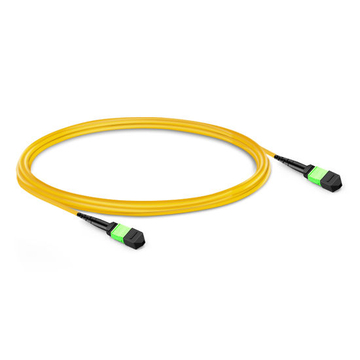

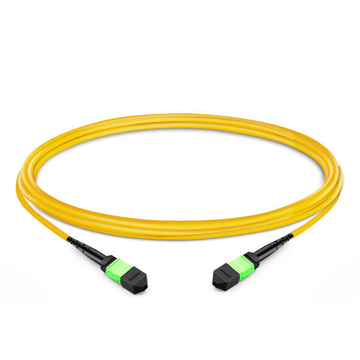

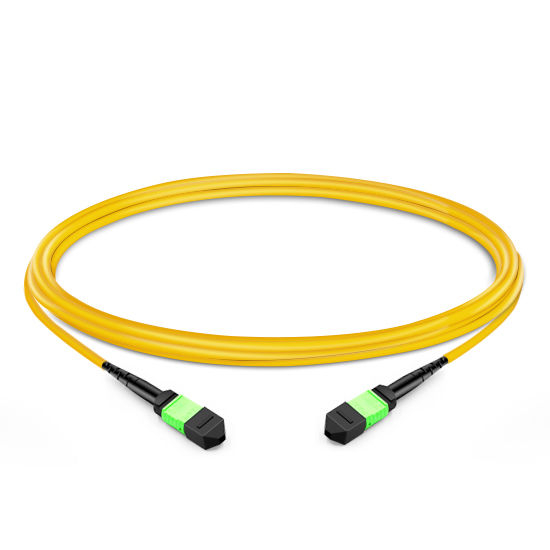

12 Fibers OS2 Single Mode Fiber Elite MTP Patch Cable 3M (MTP to MTP Cable)

Product Details

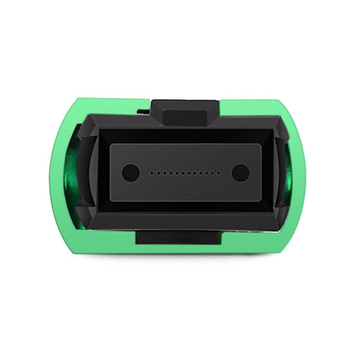

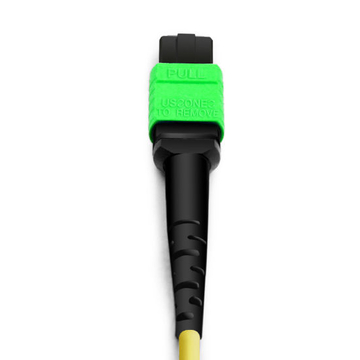

Connector A MTP Female (US Conec)Connector B MTP Female (US Conec)
Fiber Type OS2 9/125μm Single ModeWavelength 1310/1550nm
Fiber Count 12 FibersDistance 3m (10ft)
Glass Fiber Corning ClearCurve®Cable Jacket LSZH
Polish Type APC to APCMinimum Bend Radius 10mm
Insertion Loss 0.35dB Max (0.15dB Typ.)Return Loss ≥60dB
Attenuation at 1310nm ≤0.32 dB/kmAttenuation at 1550nm ≤0.18 dB/km
Cable Diameter 3.0mmFiber Color Yellow
Installation Tensile Load 100 NLong-Term Tensile Load 50 N
Operating Temperature -10°C to +70°CStorage Temperature -40°C to +85°C


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

our advantages

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

Short Lead Time

Fast Delivery
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

Professional Service

Technical Support
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

Premium Quality

High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. FiberMall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
3D Interferometer Test
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
End-Face Inspection
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
Insertion Loss and Return Loss Testing

Specifications

Connectors

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

Fiber Count

8 fibers

MTP-LC Harness Cables

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

12 fibers

MTP Trunk Cables / MTP-LC Harness Cables

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

24 fibers

MTP Trunk Cables

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

Fiber Type

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
OM3 50/125 MMF
Corning ClearCurve Multimode Fiber
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
OM4 50/125 MMF
Corning ClearCurve Multimode Fiber
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
OS2 9/125 SMF
Corning SMF-28 Ultra Optical Fiber

Gender Type

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
MTP Male With Pins
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
MTP Female Without Pins

Polarity Type

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall

Packaging & Labeling

12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
Single Package
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
Small Quantity Package
12 Fibers OS2 Single Mode Fiber MTP Trunk Cable 3M | FiberMall
Bulk quantity package
