1x16 PLC Fiber Splitter 1U 19" Rack Mount | FiberMall

Add to wish

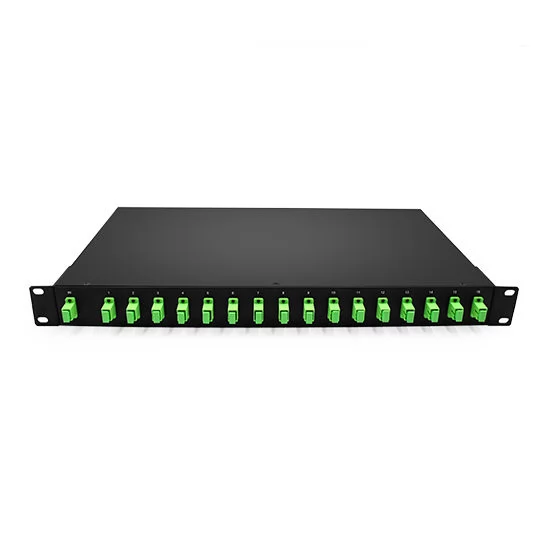

1x16 PLC Fiber Splitter, 1U 19" Rack Mount, SC/APC, SM

Name: 1x16 PLC Fiber Splitter, 1U 19" Rack Mount, SC/APC, SM
Brand: fibermall
SKU: 40071
Price: 60.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40071

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Port Configuration: 1X32; 1X16; 1X8; 1X4

FM PN:

PLC-1X16-1USCAPC

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

1x16 PLC Fiber Optic Splitter Low Insertion Loss FTTX Single Mode SC/APC 1U Rack

Product Details

Package Style	Rack Mount	Por Configuration	1X16
Connector Type	SC/APC	Fiber Type	G657A1 or Customer Specified
Insertion Loss	≤13.7dB	Loss Uniformity	≤1.2dB
Polarization Dependent Loss	≤0.25dB	Return Loss	≥50dB
Wavelength Dependent Loss	≤0.5dB	Directivity	≥55dB
Operating Wavelength	1260~1650nm	Dimensions (HxWxD)	44x482.6x250mm
Operating Temperature	-40°C～+85℃	Storage Temperature	-40°C～+85°C

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

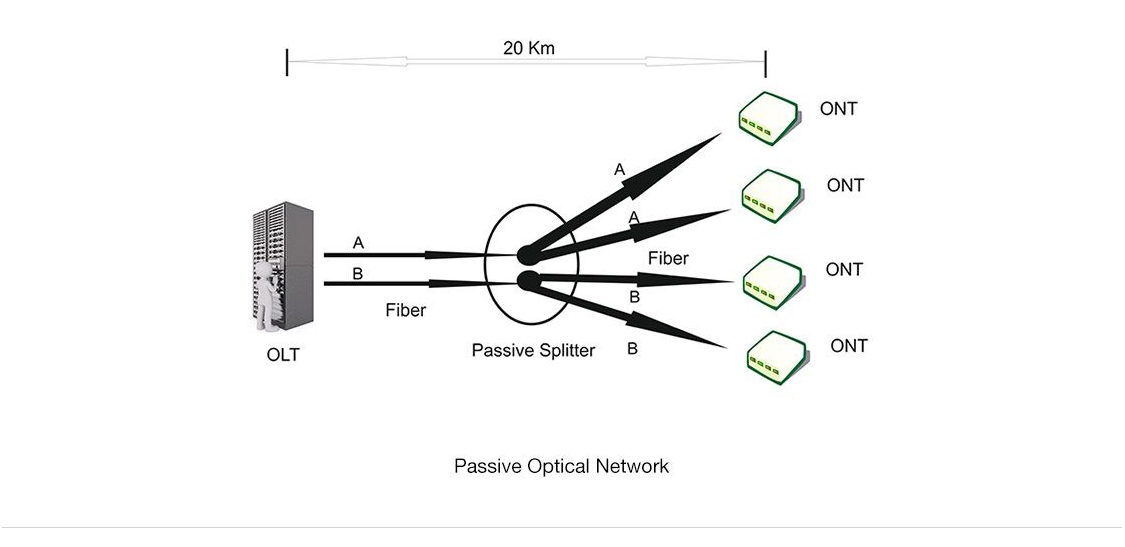

How The PLC Splitter Work

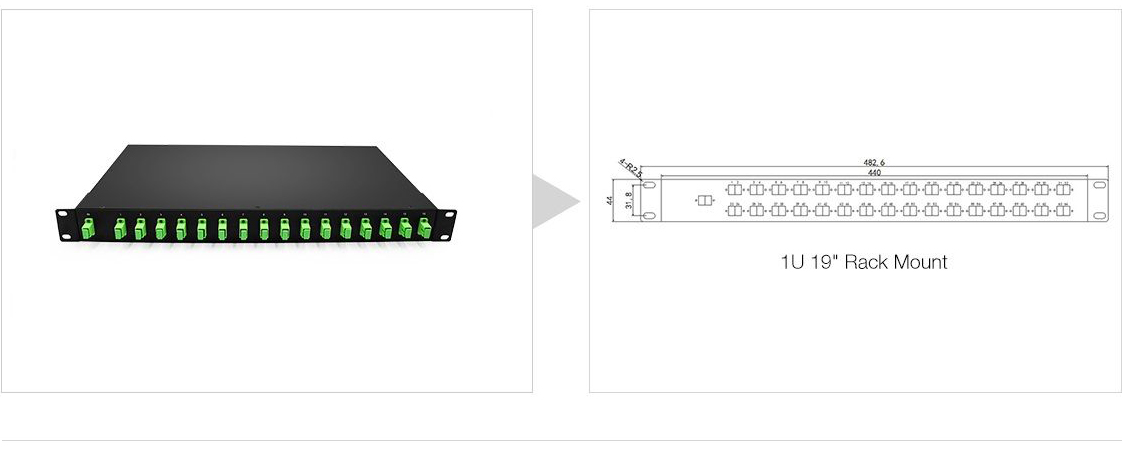

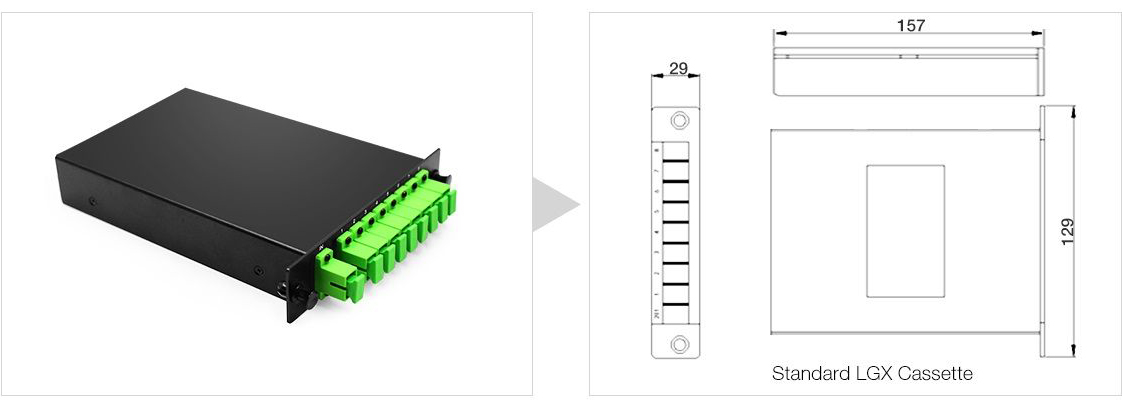

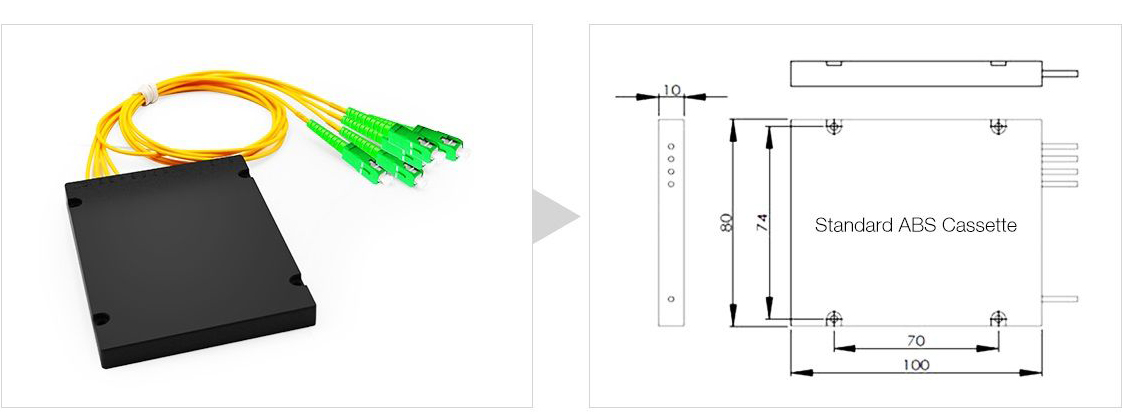

Packaging And Dimensions

Specifications 1xN PLC Splitter

Parameters	1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength (nm)	1260-1650
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformit (dB)	0.4	0.6	0.8	1.2	1.5	2
Polarization Dependent Loss (dB)	0.2	0.2	0.2	0.25	0.3	0.35
Return Loss(dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40-85'0 (dB)	0.4	0.4	0.4	0.5	0.5	0.5
Packaging	Standard ABS Cassette	Standard LGX Cassette		1U 19" Rack Mount
Package dimension (mm)	100x80x10	157x129x29		L440 (482.6) xW250xH44 or Specify
Operating Temperature( C)	-40-+85
Storage Temperature("C)	-40-+85
Maximum Power Handling (mW)	500

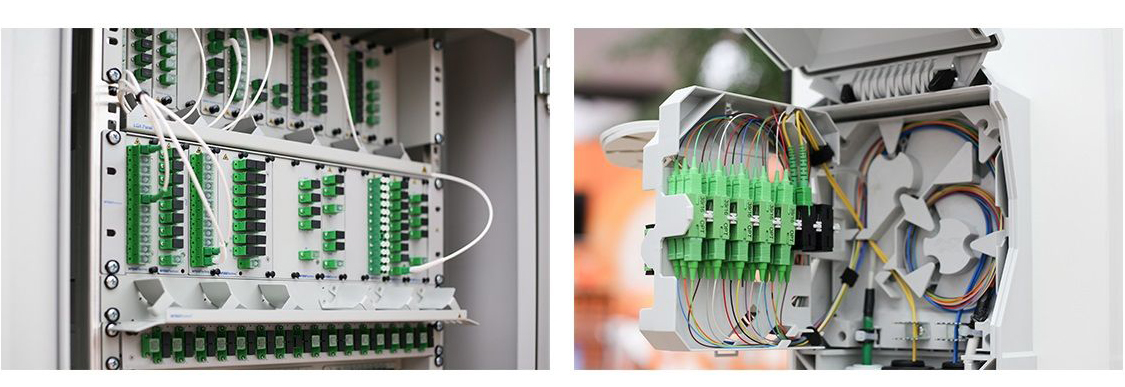

Practical Application Demonstrationv
