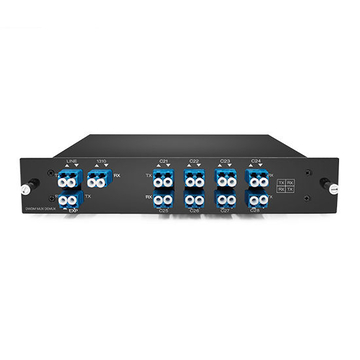

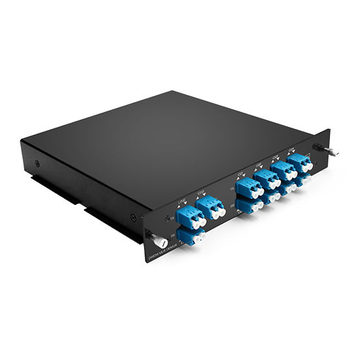

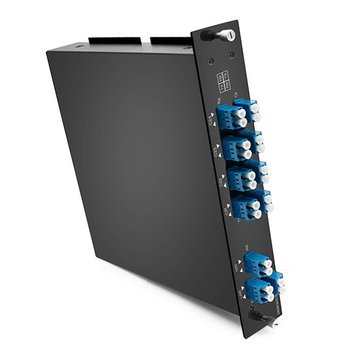

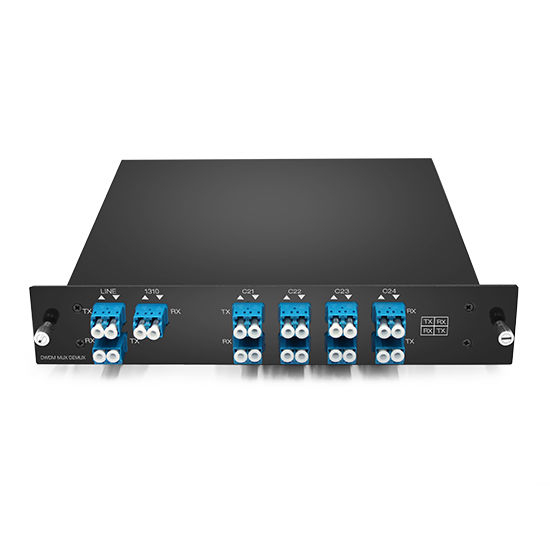

DWDM MUX DEMUX 8CH (XX-XX Customer Specified) with Express Port LC/UPC Dual Fiber LGX BOX

Name: DWDM MUX DEMUX 8CH (XX-XX Customer Specified) with Express Port LC/UPC Dual Fiber LGX BOX
Brand: fibermall
SKU: 40058
Price: 500.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40058

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Wavelength: C21-C28; Customized

FM PN:

FM-DWMD8-CXXXX

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

8 Channels CXX-CXX Customized DWDM MUX DEMUX Dual Fiber with Expansion Port LC/UPC LGX BOX

Product Details

Operating Wavelength	8 Channels C21-C60	Channel Spacing	100GHz
Passband	ITU±0.11	Insertion Loss	≤ 2.4dB
Directivity	≥50dB	Return Loss	≥45dB
Passband Ripple	≤ 0.5dB	Fiber Type	SMF-28e+
Adjacent Channel Isolation	≥30dB	Non-adjacent Channel Isolation	≥40dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.2ps
Maximum Optical Power	500mW	Dimensions (HxWxD)	39x208x200mm
Operating Temperature	-20°C～+75°C	Storage Temperature	-40°C～+85°C

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

8CH Customized DWDM MUX DEMUX Dual Fiber LGX BOX | FiberMall

our advantages

: Short Lead time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Product Specification

Number of channels	4	8	16
Wavelength range	CWDM:1270nm to 1610nm DWDM:C Band, 100 GHZ or 50 GHZ
Insertion loss	< 1.5dB	< 2.5dB	< 3.5dB
Isolation ratio of adjacent channels	>30dB	>30dB	>30dB
Isolation ratio of non-adjacent channels	>40dB	>40dB	>40dB
Return loss	>45dB	>45dB	>45dB
Direction	>50dB	>50dB	>50dB
Interface type	All interfaces are LC type
Work temperature	-40〜85℃
Storage temperature	-40〜85℃

DWDM MUX DEMUX

Matching Products

Pictures	ID#	Description	Price	Stock	Add to Cart
	426941	FM 2-Slot 1U 19" Rack Chassis Unloaded, Holds up to 2 Units LGX BOX	$ 38.00 / piece	Available	{"pid":"426941","picid":"913563","name":"FM 2-Slot 1U 19\" Rack Chassis Unloaded, Holds up to 2 Units LGX BOX","keyword":"Rack Chassis","picurl":"https:\/\/www.fibermall.com\/photo\/p913563-200x200-fm-2-slot-1u-19-rack-chassis-unloaded-holds-up-to-2-units-lgx-box.jpg","test_url":"\/test\/www.fibermall.com\/sale-426941-2-slot-1u-19-rack-chassis.htm","min_price":"38.00","max_price":"38.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"2 Slots 1U Rack for LGX BoxProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#Quality AssuranceExcellent quality is the foundation of FiberMall s survival and development. Our operation team is exper","skulist":[{"pskuid":"78324","cid":"605","pid":"426941","sku":"40026","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"38.00","strike_price":"0.00","innercode":"","addtime":"2019-09-14 23:19:15","uptime":"2019-09-15 00:19:15","status":"0"}],"link":"\/sale-426941-2-slot-1u-19-rack-chassis.htm","displayed_price":{"unit_prefix":"$","value":"38.00","min":"38.00","max":"38.00","usd_min":"38.00","usd_max":"38.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"56.33","isfree":0,"total":"56.33","datemin":"3","datemax":"5","unit_price":"38.00","subtotal":38},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"66.92","isfree":0,"total":"66.92","datemin":"3","datemax":"5","unit_price":"38.00","subtotal":38},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"67.78","isfree":0,"total":"67.78","datemin":"3","datemax":"5","unit_price":"38.00","subtotal":38}]}
	426945	Passive CWDM Double Fiber 4 Channels OADM LGX BOX	$ 250.00 / piece	Available	{"pid":"426945","picid":"913617","name":"Passive CWDM Double Fiber 4 Channels OADM LGX BOX","keyword":"OADM LGX BOX","picurl":"https:\/\/www.fibermall.com\/photo\/p913617-200x200-passive-cwdm-double-fiber-4-channels-oadm-lgx-box.jpg","test_url":"\/test\/www.fibermall.com\/sale-426945-cwdm-oadm-double-fiber-4-channel-customized.htm","min_price":"250.00","max_price":"250.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"4 Channels CWDM OADM Dual Fiber East and\/or West LGX BOXProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#Quality AssuranceExcellent quality is the foundation of FiberMall' s survival and developmen","skulist":[{"pskuid":"78328","cid":"605","pid":"426945","sku":"40055","psvid1":"74673","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"250.00","strike_price":"0.00","innercode":"","addtime":"2019-09-14 23:43:49","uptime":"2019-10-15 00:41:45","status":"0"}],"link":"\/sale-426945-cwdm-oadm-double-fiber-4-channel-customized.htm","displayed_price":{"unit_prefix":"$","value":"250.00","min":"250.00","max":"250.00","usd_min":"250.00","usd_max":"250.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.51","isfree":0,"total":"28.51","datemin":"3","datemax":"5","unit_price":"250.00","subtotal":250},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"34.34","isfree":0,"total":"34.34","datemin":"3","datemax":"5","unit_price":"250.00","subtotal":250},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"36.02","isfree":0,"total":"36.02","datemin":"3","datemax":"5","unit_price":"250.00","subtotal":250}]}
	426833	Passive CWDM Double Fiber 2 Channels OADM LGX BOX	$ 130.00 / piece	Available	{"pid":"426833","picid":"913613","name":"Passive CWDM Double Fiber 2 Channels OADM LGX BOX","keyword":"OADM LGX BOX","picurl":"https:\/\/www.fibermall.com\/photo\/p913613-200x200-passive-cwdm-double-fiber-2-channels-oadm-lgx-box.jpg","test_url":"\/test\/www.fibermall.com\/sale-426833-cwdm-oadm-double-fiber-2-channels.htm","min_price":"130.00","max_price":"130.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"2 Channels CWDM OADM Dual Fiber East and\/or West LGX BOXProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#Quality AssuranceExcellent quality is the foundation of FiberMall s survival and development","skulist":[{"pskuid":"77062","cid":"605","pid":"426833","sku":"40054","psvid1":"74707","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"130.00","strike_price":"0.00","innercode":"","addtime":"2019-09-12 02:26:44","uptime":"2019-10-15 02:18:48","status":"0"}],"link":"\/sale-426833-cwdm-oadm-double-fiber-2-channels.htm","displayed_price":{"unit_prefix":"$","value":"130.00","min":"130.00","max":"130.00","usd_min":"130.00","usd_max":"130.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.51","isfree":0,"total":"28.51","datemin":"3","datemax":"5","unit_price":"130.00","subtotal":130},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"34.34","isfree":0,"total":"34.34","datemin":"3","datemax":"5","unit_price":"130.00","subtotal":130},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"36.02","isfree":0,"total":"36.02","datemin":"3","datemax":"5","unit_price":"130.00","subtotal":130}]}

FM 2-Slot 1U 19" Rack Chassis Unloaded, Holds up to 2 Units LGX BOX

$ 38.00 / piece

Available

{"pid":"426941","picid":"913563","name":"FM 2-Slot 1U 19\" Rack Chassis Unloaded, Holds up to 2 Units LGX BOX","keyword":"Rack Chassis","picurl":"https:\/\/www.fibermall.com\/photo\/p913563-200x200-fm-2-slot-1u-19-rack-chassis-unloaded-holds-up-to-2-units-lgx-box.jpg","test_url":"\/test\/www.fibermall.com\/sale-426941-2-slot-1u-19-rack-chassis.htm","min_price":"38.00","max_price":"38.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"2 Slots 1U Rack for LGX BoxProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#Quality AssuranceExcellent quality is the foundation of FiberMall s survival and development. Our operation team is exper","skulist":[{"pskuid":"78324","cid":"605","pid":"426941","sku":"40026","psvid1":"0","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"38.00","strike_price":"0.00","innercode":"","addtime":"2019-09-14 23:19:15","uptime":"2019-09-15 00:19:15","status":"0"}],"link":"\/sale-426941-2-slot-1u-19-rack-chassis.htm","displayed_price":{"unit_prefix":"$","value":"38.00","min":"38.00","max":"38.00","usd_min":"38.00","usd_max":"38.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"56.33","isfree":0,"total":"56.33","datemin":"3","datemax":"5","unit_price":"38.00","subtotal":38},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"66.92","isfree":0,"total":"66.92","datemin":"3","datemax":"5","unit_price":"38.00","subtotal":38},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"67.78","isfree":0,"total":"67.78","datemin":"3","datemax":"5","unit_price":"38.00","subtotal":38}]}
Passive CWDM Double Fiber 4 Channels OADM LGX BOX

$ 250.00 / piece

Available

{"pid":"426945","picid":"913617","name":"Passive CWDM Double Fiber 4 Channels OADM LGX BOX","keyword":"OADM LGX BOX","picurl":"https:\/\/www.fibermall.com\/photo\/p913617-200x200-passive-cwdm-double-fiber-4-channels-oadm-lgx-box.jpg","test_url":"\/test\/www.fibermall.com\/sale-426945-cwdm-oadm-double-fiber-4-channel-customized.htm","min_price":"250.00","max_price":"250.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"4 Channels CWDM OADM Dual Fiber East and\/or West LGX BOXProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#Quality AssuranceExcellent quality is the foundation of FiberMall' s survival and developmen","skulist":[{"pskuid":"78328","cid":"605","pid":"426945","sku":"40055","psvid1":"74673","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"250.00","strike_price":"0.00","innercode":"","addtime":"2019-09-14 23:43:49","uptime":"2019-10-15 00:41:45","status":"0"}],"link":"\/sale-426945-cwdm-oadm-double-fiber-4-channel-customized.htm","displayed_price":{"unit_prefix":"$","value":"250.00","min":"250.00","max":"250.00","usd_min":"250.00","usd_max":"250.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.51","isfree":0,"total":"28.51","datemin":"3","datemax":"5","unit_price":"250.00","subtotal":250},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"34.34","isfree":0,"total":"34.34","datemin":"3","datemax":"5","unit_price":"250.00","subtotal":250},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"36.02","isfree":0,"total":"36.02","datemin":"3","datemax":"5","unit_price":"250.00","subtotal":250}]}
Passive CWDM Double Fiber 2 Channels OADM LGX BOX

$ 130.00 / piece

Available

{"pid":"426833","picid":"913613","name":"Passive CWDM Double Fiber 2 Channels OADM LGX BOX","keyword":"OADM LGX BOX","picurl":"https:\/\/www.fibermall.com\/photo\/p913613-200x200-passive-cwdm-double-fiber-2-channels-oadm-lgx-box.jpg","test_url":"\/test\/www.fibermall.com\/sale-426833-cwdm-oadm-double-fiber-2-channels.htm","min_price":"130.00","max_price":"130.00","leftnum":"0","unit_type_name":"piece","minimum_ordered_quantity":"1","prod_desc":"2 Channels CWDM OADM Dual Fiber East and\/or West LGX BOXProduct Details#CUSTOM#ATTRIBUTES#TABLE#PLACEHOLDER#Quality AssuranceExcellent quality is the foundation of FiberMall s survival and development","skulist":[{"pskuid":"77062","cid":"605","pid":"426833","sku":"40054","psvid1":"74707","psvid2":"0","psvid3":"0","psvid4":"0","left_num":"0","price":"130.00","strike_price":"0.00","innercode":"","addtime":"2019-09-12 02:26:44","uptime":"2019-10-15 02:18:48","status":"0"}],"link":"\/sale-426833-cwdm-oadm-double-fiber-2-channels.htm","displayed_price":{"unit_prefix":"$","value":"130.00","min":"130.00","max":"130.00","usd_min":"130.00","usd_max":"130.00","unit_type_name":"piece"},"shippingLists":[{"id":"DHL","name":"DHL","logo":"res\/shipping\/DHL.jpg","price":"28.51","isfree":0,"total":"28.51","datemin":"3","datemax":"5","unit_price":"130.00","subtotal":130},{"id":"FEDEX","name":"Fedex IP","logo":"res\/shipping\/FEDEX.jpg","price":"34.34","isfree":0,"total":"34.34","datemin":"3","datemax":"5","unit_price":"130.00","subtotal":130},{"id":"UPS","name":"UPS Express Saver","logo":"res\/shipping\/UPS.gif","price":"36.02","isfree":0,"total":"36.02","datemin":"3","datemax":"5","unit_price":"130.00","subtotal":130}]}

Resources

Datasheet


8CH DWDM MUX DEMUX DUAL FIBER.pdf
