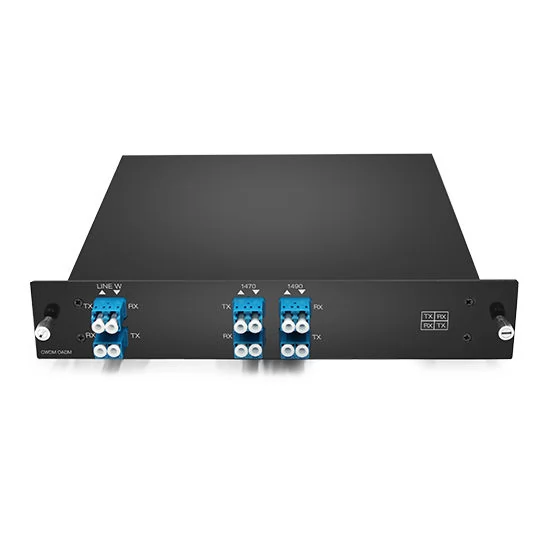

Passive CWDM Double Fiber 4 Channels OADM LGX BOX

Name: Passive CWDM Double Fiber 4 Channels OADM LGX BOX
Brand: fibermall
SKU: 40055
Price: 250.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40055

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Wavelength: Customized

FM PN:

FM-CWOADM-4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

4 Channels CWDM OADM Dual Fiber East and/or West LGX BOX
Product Details

Operating Wavelength 4 Channels 1270-1610nm Channel Space 20nm
Passband ITU±6.5nm Insertion Loss ≤1.4dB
Directivity ≥50dB Return Loss ≥45dB
Transmission Direction West and/or east Fiber Type SMF-28e or Customer Specified
Adjacent Channel Isolation ≥30dB Non-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dB Polarization Mode Dispersion ≤0.1ps
Maximum Optical Power 500mW Dimensions (HxWxD) 39x208x200mm
Operating Temperature -20°C～+70°C Storage Temperature -40°C～+85°C

Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

Short Lead time

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Product Specification

Number of channels 4 8 16

Wavelength range
CWDM:1270nm to 1610nm
DWDM:C Band, 100 GHZ or 50 GHZ

Insertion loss < 1.5dB < 2.5dB < 3.5dB

Isolation ratio of adjacent channels >30dB >30dB >30dB

Isolation ratio of non-adjacent channels >40dB >40dB >40dB

Return loss >45dB >45dB >45dB

Direction >50dB >50dB >50dB

Interface type All interfaces are LC type

Work temperature -40〜85℃

Storage temperature -40〜85℃

OADM LGX BOX
