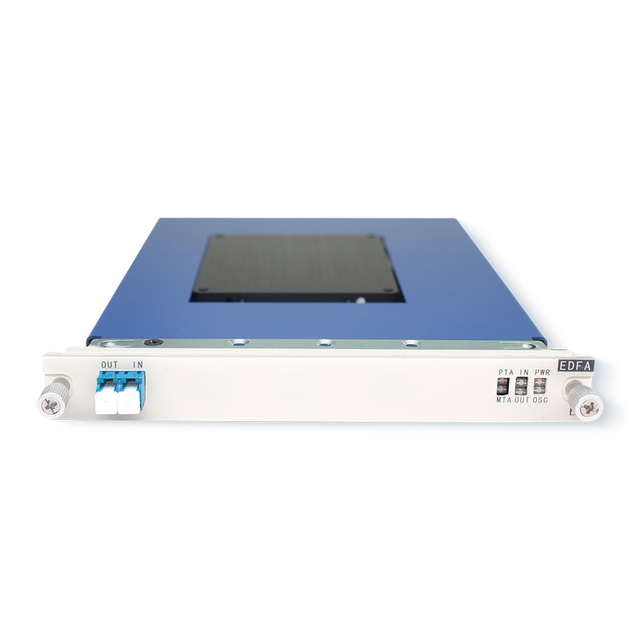

EDFA C-Band Boost Optical Amplifier Adjustable | FiberMall

Add to wish

EDFA 40/80 Channels C-Band Optical Amplifier Maximal Output Power +20dBm Gain 17dB Saturated Optical Power +3dBm Built in VOA Adjustable Range 1～20dB

Name: EDFA 40/80 Channels C-Band Optical Amplifier Maximal Output Power +20dBm Gain 17dB Saturated Optical Power +3dBm Built in VOA Adjustable Range 1～20dB
Brand: fibermall
SKU: 40014
Price: 1800.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40014

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Gain: Gain 17dB

Output Power: +20dBm; +20dBm Variable

FM PN:

B17-20TA

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Maximal Output Power +20dBm, Gain 17db, Saturated Optical Power +3dBm, Built-in VOA, Adjustable Range 1~20dB

Product Details

Amplifier Type	Boost Amplifier	Work Wavelength Range	1528nm~1561nm
Maximum Gain	17dB	Gain Flatness	＜1.5dB
Minimum Input Optical Power	-32 dBm	Maximum Output Optical Power	+20dBm
Saturated Optical Power	+3dBm	Noise Factor	＜5dB
Optical Interface	LC/UPC	Typical Power Consumption	15W
EVOA Adjustable Range	1~20dB	Unique Technology	Gain Locking, Transient Control, Automatic Shut-off of Output Optical Power
Chassis Type	1U, 2U, 5U	Occupied Slot Number	Occupy 1 Slot
Working Temperature Range	-10°C to +55°C (Typical)	Storage Temperature Range	-40°C to +85°C

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

FM-OTN Systems

Save Optical Fiber In Huge Bandwidth Need

: 40 channels system; Access capacity:80G

: 40 channels system; Access capacity:160G

: 40/48/80/96 channels system; Access capacity; 400G ➨ 960G➨ 4T➨ 9.6T

WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber

FiberMall FM-OTN System Includes the Following Two Parts

Customized Solutions, Self-help Selection of Our FM-OTN System Function Modules

OTN Platform

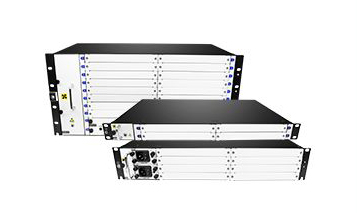

: 1 Main Chassis 1U/2U/5U

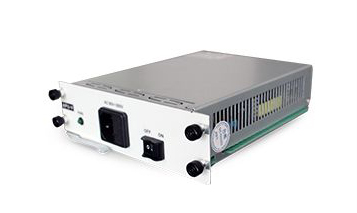

: 2 Power Supply Module

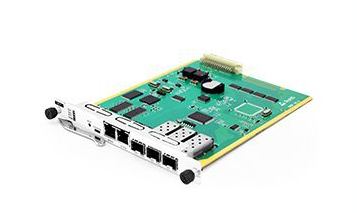

: 3 Network Management Unit

OTN Function Module

: Transponder (OEO)

: Amplifier Modules

: Dispersion Compensation

: Une Protection

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Practical Application Demonstration

As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.
