Brocade 40G-QSFP-QSFP-AOC-0301 40G QSFP+ AOC Cable | FiberMall

Add to wish

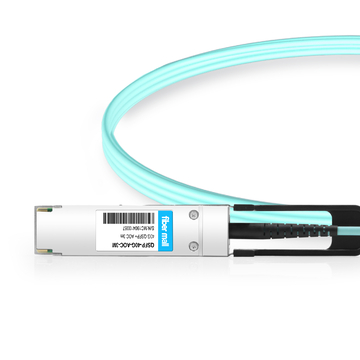

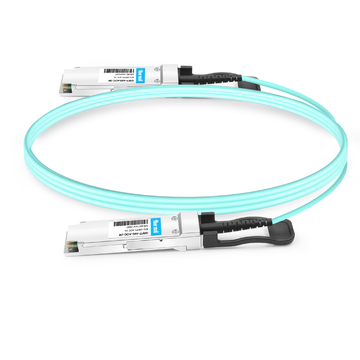

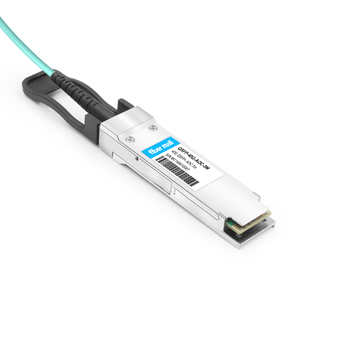

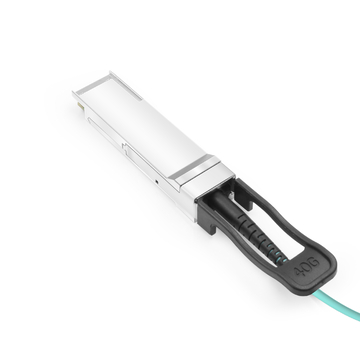

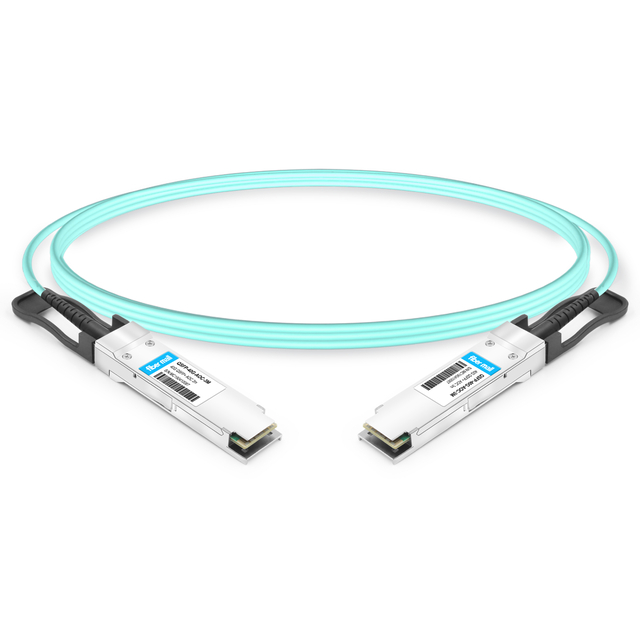

Brocade 40G-QSFP-QSFP-AOC-0301 Compatible 3m (10ft) 40G QSFP+ to QSFP+ Active Optical Cable

Name: Brocade 40G-QSFP-QSFP-AOC-0301 Compatible 3m (10ft) 40G QSFP+ to QSFP+ Active Optical Cable
Brand: fibermall
SKU: 16591
Price: 73.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:16591

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; Avago; Brocade; Dell; Dell(Force10); EdgeCore; Extreme; H3C; Juniper; Mellanox; Palo Alto Networks

Length: 1m (3ft); 2m (7ft); 3m (10ft); 5m (16ft); 7m (23ft); 10m (33ft); 15m (49ft); 20m (66ft); 25m (82ft); 30m (98ft); 50m (164ft)

FM PN:

QSFP-40G-AOC-3M

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Brocade 40G-QSFP-QSFP-AOC-0301 Compatible 3m 40G QSFP+ Active Optical Cable (QSFP+ to QSFP+ AOC Cable, Active OM3 3m)

The 40G QSFP+ active optic cables are high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2Gfiber channel, PCIe, and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each lane can transmit data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. 40G QSFP+AOC is one kind of parallel transceiver that provides increased port density and total system cost savings.

Product Details

Brocade Compatible	40G-QSFP-QSFP-AOC-0301	Vendor Name	FiberMall
Connector	QSFP+ to QSFP+	Max Data Rate	40Gbps
Cable Length	3m (9.8ft)	Fiber Cable	OM3 MMF
Jacket Material	OFNP	Minimum Bend Radius	7.5mm
Operation Temperature	0~ 70 °C (32 to 158°F)	Protocols	40G InfiniBand 8x DDR, 4x QDR, 10/40 Gigabit Ethernet, Fibre Channel

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

40G QSFP AOC

Product Features

v Four-channel full-duplex active optical cable

v Transmission data rate up to 11.3Gbit/s per channel

v Reliable VCSEL array technology using multimode fiber

v Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m

v Low power consumption <1.5W

v 3.3V power supply voltage

v RoHS 6 compliant

v Hot Pluggable QSFP form factor

v Supports Infiniband QDR/DDR/SDR, Datacenter, 40G Ethernet, 4G/8G/10G Fibre Channel
