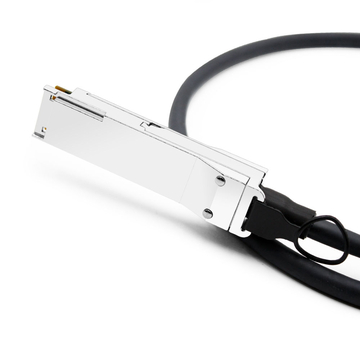

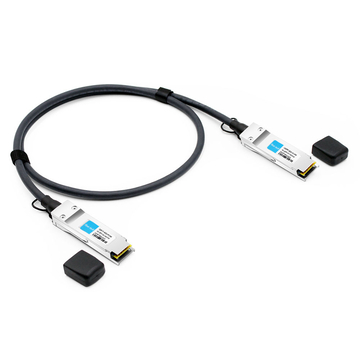

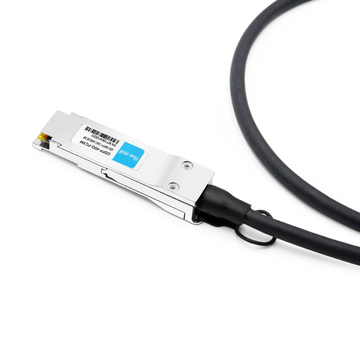

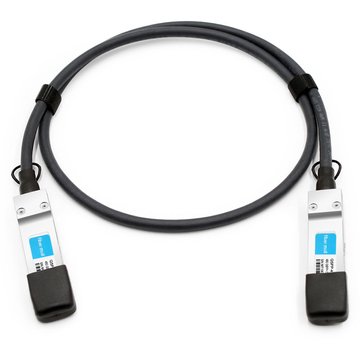

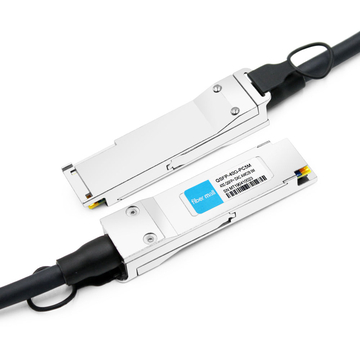

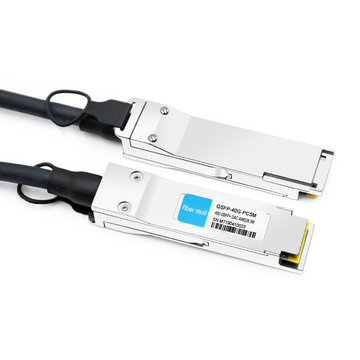

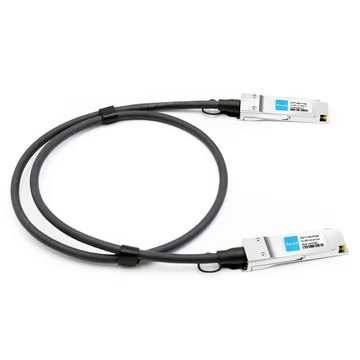

| Mellanox Compatible | MC2206128-005 | Vendor Name | FiberMall |
| Connector | QSFP+ to QSFP+ | Max Data Rate | 40Gbps |
| Cable Length | 5m (16.4ft) | AWG | AWG 26 |
| Jacket Material | PVC(OFNR) | Minimum Bend Radius | 45mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Protocols | 40G InfiniBand 8x DDR, 4x QDR, 10/40 Gigabit Ethernet, Fibre Channel |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Fully compatible with IEEE802.3ba and Infiniband QDR specifications
v 40 Gb/s total bandwidth
v 4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbpsdata rates
v 100-ohm differential impedance system
v Single 3.3V power supply, low power consumption <1.5W
v 30 AWG to 24 AWG cable sizes available
v RoHS, QSFP MSA compliant
v Application for Data Center Networking, Networked storage systems, Switches, and Routers
v Compliant InfiniBand Trade Association (IBTA), 40Gigabit Ethernet ( 40G BASE – CR4)
