HPE FlexNetwork JG328A 40G QSFP+ to QSFP+ Passive DAC | FiberMall

Add to wish

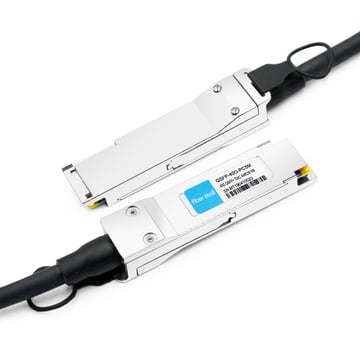

HPE H3C JG328A Compatible 5m (16ft) 40G QSFP+ to QSFP+ Passive Copper Direct Attach Cable

Name: HPE H3C JG328A Compatible 5m (16ft) 40G QSFP+ to QSFP+ Passive Copper Direct Attach Cable
Brand: fibermall
SKU: 16141
Price: 60.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:16141

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Alcatel-Lucent; Arista Networks; Avaya/Nortel; Brocade; D-Link; Dell; Dell(Force10); EdgeCore; Enterasys; Extreme; H3C; HPE (Aruba); HPE (BladeSystem); HPE (H3C); IBM; Intel; Mellanox; MikroTik; Palo Alto Networks

Length: 1m; 1m (3ft); 3m; 3m (10ft); 5m (16ft)

FM PN:

QSFP-40G-PC5M

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

HPE H3C JG328A Compatible 5m 40G QSFP+ Twinax Copper Cable (QSFP+ to QSFP+ DAC Cable, Passive AWG26 5m)

40G QSFP+ Twinax copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infiniband standards, to maximize performance. It is fully compliant with QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.

Product Details

HPE FlexNetwork Compatible	JG328A	Vendor Name	FiberMall
Connector	QSFP+ to QSFP+	Max Data Rate	40Gbps
Cable Length	5m (16.4ft)	AWG	AWG 26
Jacket Material	PVC(OFNR)	Minimum Bend Radius	45mm
Operation Temperature	0~ 70 °C (32 to 158°F)	Protocols	40G InfiniBand 8x DDR, 4x QDR, 10/40 Gigabit Ethernet, Fibre Channel

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v Fully compatible with IEEE802.3ba and Infiniband QDR specifications

v 40 Gb/s total bandwidth

v 4 independent duplex channels operating at 10Gbps, also support for 2.5Gbps, 5Gbpsdata rates

v 100-ohm differential impedance system

v Single 3.3V power supply, low power consumption <1.5W

v 30 AWG to 24 AWG cable sizes available

v RoHS, QSFP MSA compliant

v Application for Data Center Networking, Networked storage systems, Switches, and Routers

v Compliant InfiniBand Trade Association (IBTA), 40Gigabit Ethernet ( 40G BASE – CR4)
