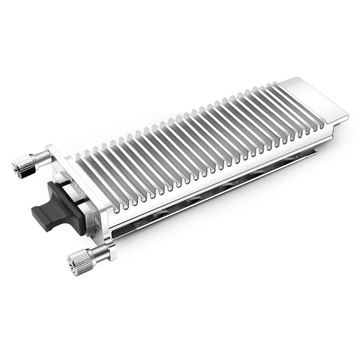

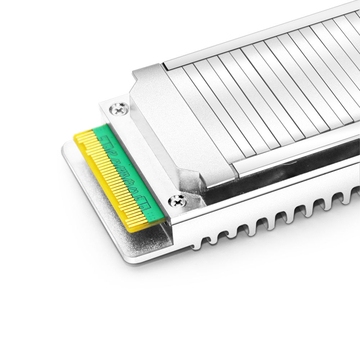

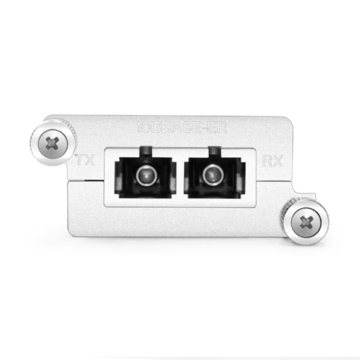

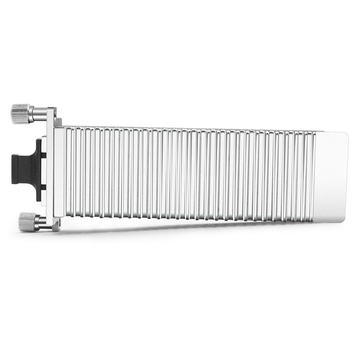

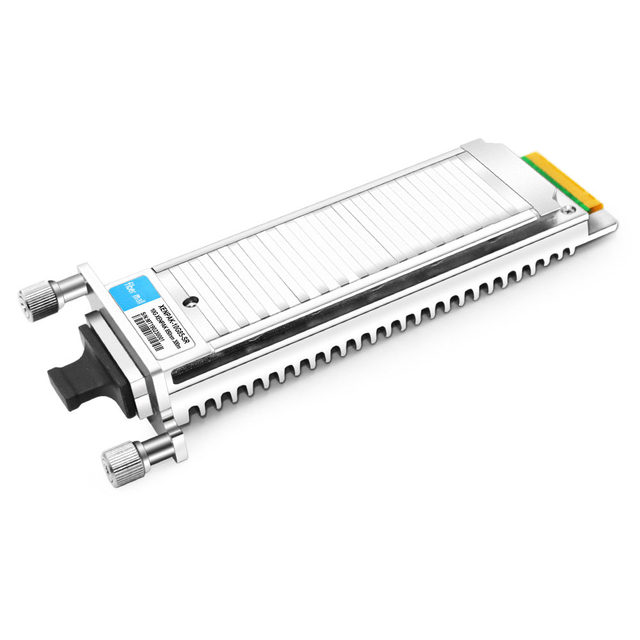

| Juniper Compatible | XENPAK-1XGE-SR | Vendor Name | FiberMall |
| Form Factor | XENPAK | Max Data Rate | 10Gbps |
| Wavelength | 850nm | Max Distance | 300m on OM3 |
| Connector | SC Duplex | Transmitter Type | VCSEL 850nm |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -5.0~-1.0dBm | Receiver Sensitivity | < -11.1dBm |
| Protocols | XENPAK MSA Rev.3.0 | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Compatible with XENPAK MSA Rev.3.0
v Support of IEEE802.3ae up to 300m (OM3 MMF)
v Power Consumption 1.8W (typ.)
v Temperature Range 0 to 70°C
v Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
v Adaptable Power Supply (APS:+1.2V)
v SC duplex connector
v Hot pluggable 70-pin connector with XAUI electrical interface
v Management and control via MDIO 2-wire interface
v Compatible with RoHS
Applications
v 10GBASE SR 10G Ethernet
