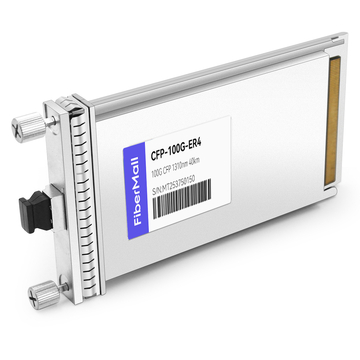

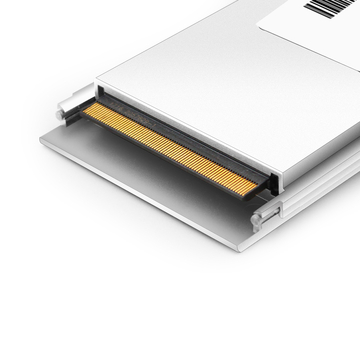

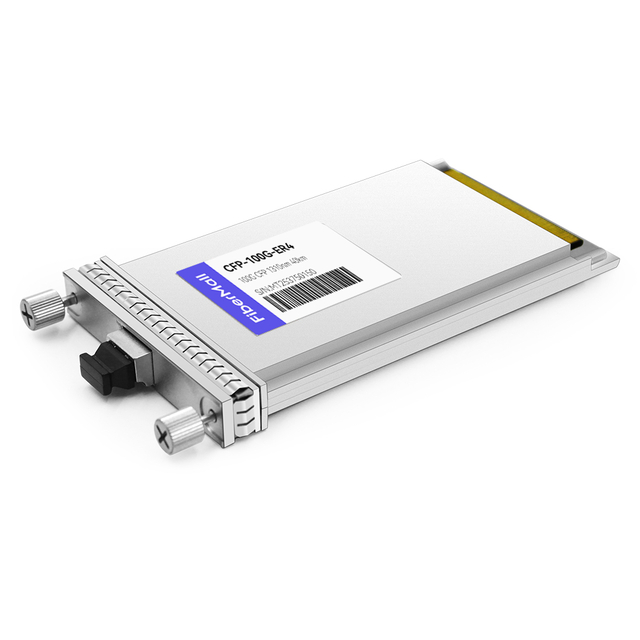

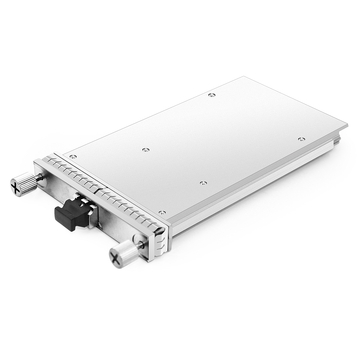

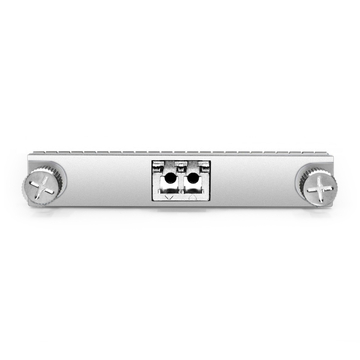

Ciena CFP-ER4-40KM Compatible module can support link lengths up to 40 kilometers on standard duplex single-mode fiber (SMF, G.652) terminated with SC/PC optical connectors. 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. The module meets the IEEE 802.3ba requirements for 100GBASE-ER4 performance and also supports Digital Optical Monitoring (DOM) of the transmit-and-receive optical signal levels.
| Ciena Compatible | CFP-ER4-40KM | Vendor Name | FiberMall |
| Form Factor | CFP | Max Data Rate | 111.8Gbps |
| Wavelength | 1310nm | Max Distance | 40km |
| Connector | LC | Transmitter Type | LAN WDM EML |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -2.9~+2.9dBm | Receiver Sensitivity | < -20.9dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
