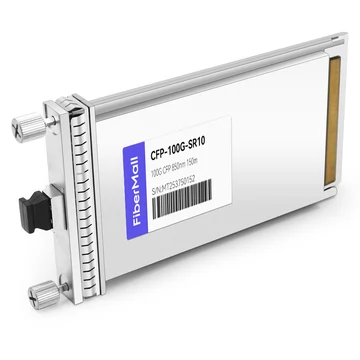

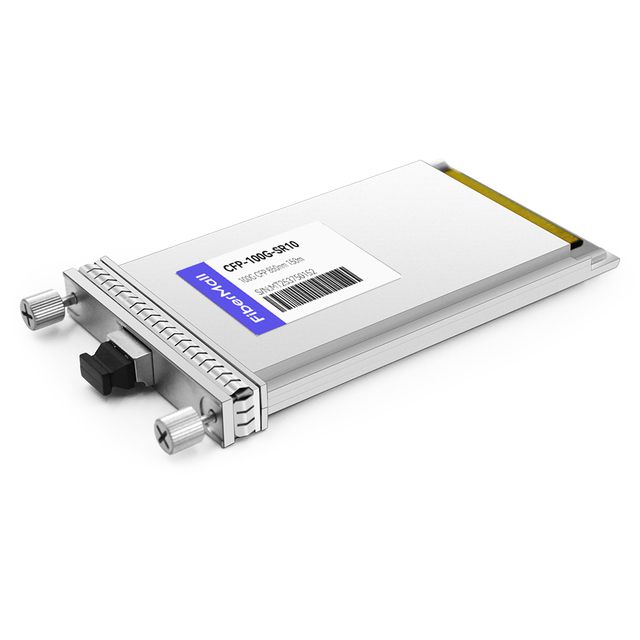

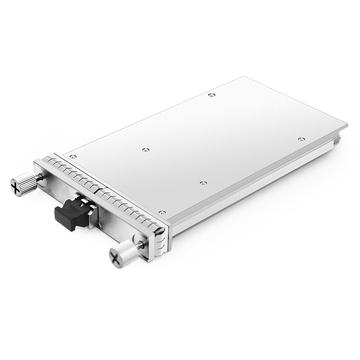

The 100GBASE-SR10 CFP module supports link lengths of 100 meters and 150 meters on laser-optimized OM3 and OM4 multi-fiber cables, respectively. It primarily enables high-bandwidth 100-gigabit links over 24-fiber ribbon cables terminated with MPO/MTP-24 connectors. It can also be used in 10 x 10 Gigabit Ethernet mode along with ribbon to duplex fiber breakout cables for connectivity to ten 10GBASE-SR optical interfaces.
| FiberMall P/N | CFP-100G-SR10 | Vendor Name | FiberMall |
| Form Factor | CFP | Max Data Rate | 103.1Gbps |
| Wavelength | 850nm | Max Distance | 100m on OM3 / 150m on OM4 |
| Connector | MTP/MPO-24 | Transmitter Type | VCSEL |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -7.6~+2.4dBm | Receiver Sensitivity | < -9.5dBm |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Compliant with the IEEE 802.3ba (100GBASE-SR10)
v Support interoperability with IEEE 802.3ae 10GBASE-SR modules of various form factors such as SFP+, XFP, X2
v Compliant with the CFP MSA Specification
v Up to 100m on OM3 and 150m on OM4 MMF
v VCSEL array transmitter and PIN array receiver
v Single 3.3V Power Supply and Power dissipation ≤ 8W
v Operates at 10.3125Gbps per channel
v Application for Datacom / Telecom switch & router connections
