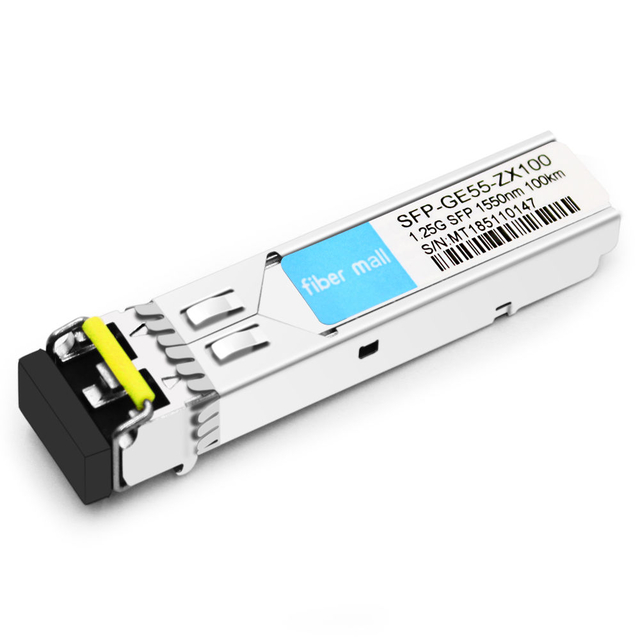

| Ruijie Compatible | MINI-GBIC-ZX100-SM1550 | Vendor Name | FiberMall |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1550nm | Max Distance | 100km |
| Connector | Duplex LC | Transmitter Type | 1550nm DFB |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 0~+5.0dBm | Receiver Sensitivity | < -29.0dBm |
| Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Dual data rate of 1.25Gbps/1.063Gbps operation
v 1550nm DFB laser and APD photodetector for 100km transmission
v Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
v Digital Diagnostic Monitoring: Internal Calibration or External Calibration
v Compatible with SONET OC-24-LR-1
v Compatible with RoHS
v +3.3V single power supply
v Application for Gigabit Ethernet, Fiber Channel, Switch to Switch interface
