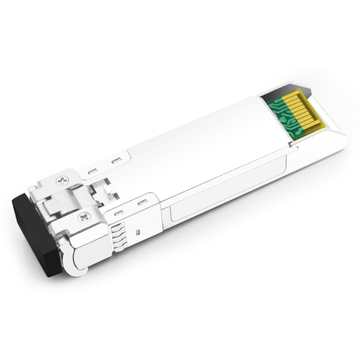

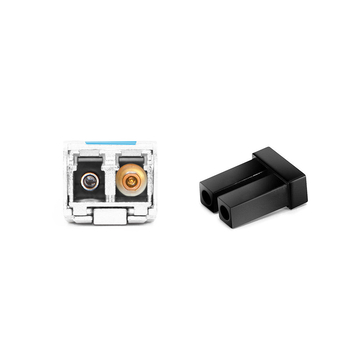

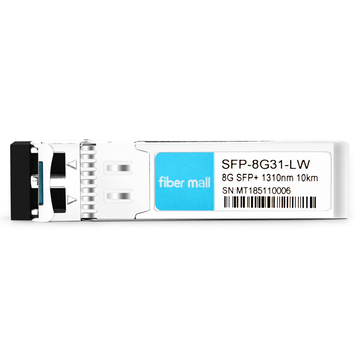

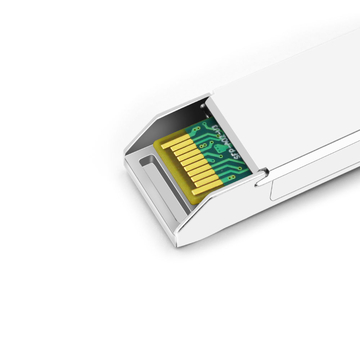

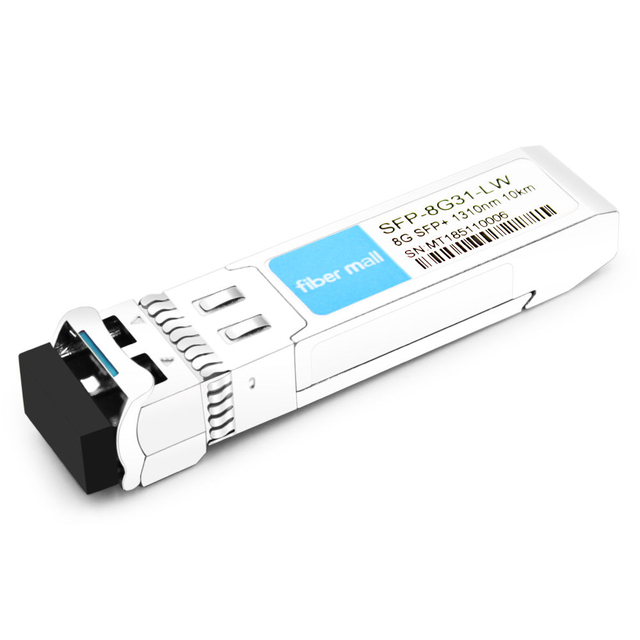

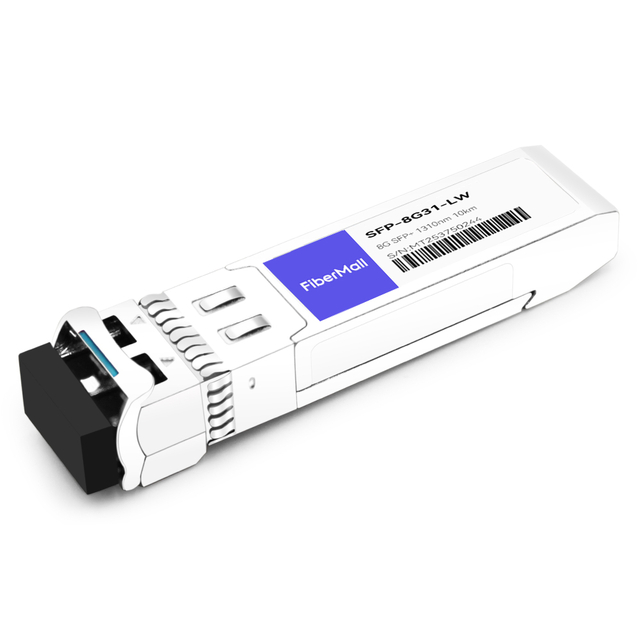

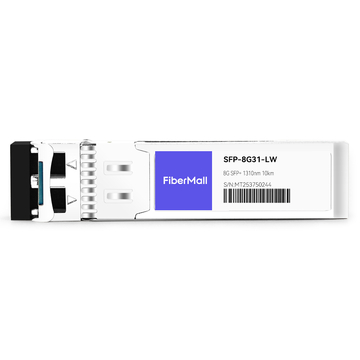

Brocade XBR-000153 Compatible 8G Fibre Channel SFP+ transceivers are high-performance, cost-effective modules supporting a data rate of 8.5Gbps and a 10km transmission distance with SMF. The Module provides 8Gb/s throughput up to 10km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA) and FCIA FC-PI-4 800-SM-LC-L standard. Its electrical interface is MSA compliant 20-pin edge-type connector and the optical interface is a Duplex LC connector. The full-duplex SFP+ transceiver features a highly reliable DFB transmitter and PIN photodetector to offer high-performance interconnection at an 8 Gbps data rate.
| Brocade Compatible | XBR-000153 | Vendor Name | FiberMall |
| Form Factor | SFP+ | Max Data Rate | 8.5Gbps |
| Wavelength | 1310nm | Max Distance | 10km |
| Connector | Duplex LC | Transmitter Type | 1310nm DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -6.5~-0.5dBm | Receiver Sensitivity | < -14.4dBm |
| Protocols | MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
