{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

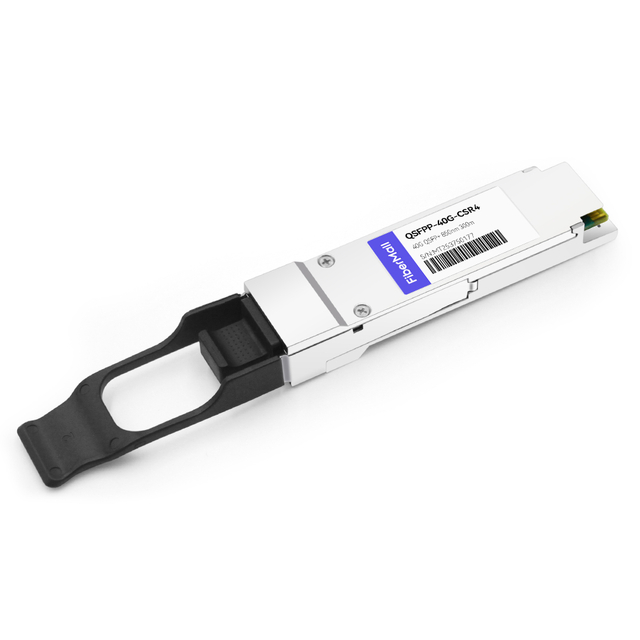

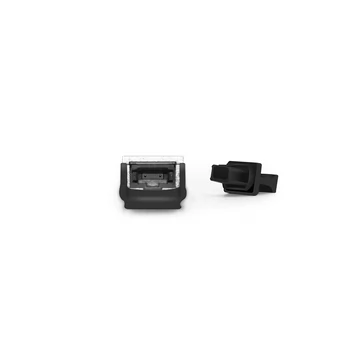

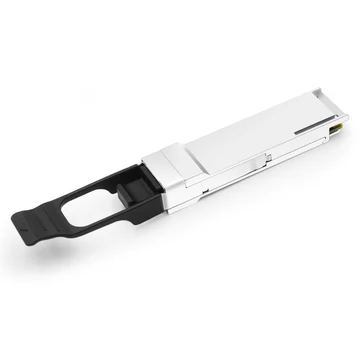

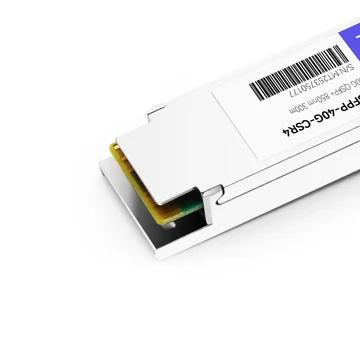

| Intel Compatible | E40GQSFPESR | Vendor Name | FiberMall |
| Form Factor | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 850nm | Max Distance | 300m @OM3/400m @OM4 |
| Connector | MTP/MPO | Transmitter Type | VCSEL 850nm |
| Cable Type | MMF | Receiver Type | PIN |
| TX Power | -8~1.0dBm | Receiver Sensitivity | < -13dBm |
| Protocols | 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v 4 independent full-duplex channels
v Up to 11.2Gbps per channel bandwidth
v QSFP MSA compliant
v Capable of over 300m transmission
v Single +3.3V power supply operating
v RoHS Compliant Part
v CML compatible electrical I/O
v TX input and RX output CDR retiming
v Application for Data centers, Switches, Routers, Infiniband 4x SDR, DDR, QDR
