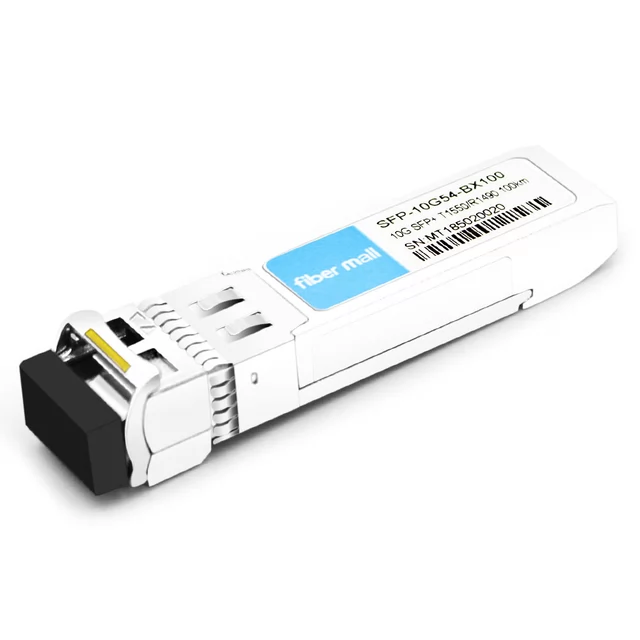

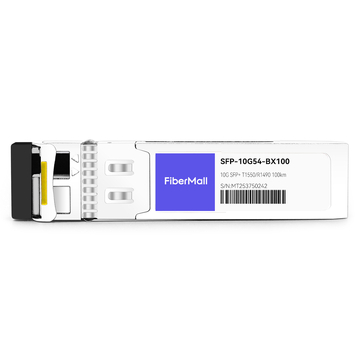

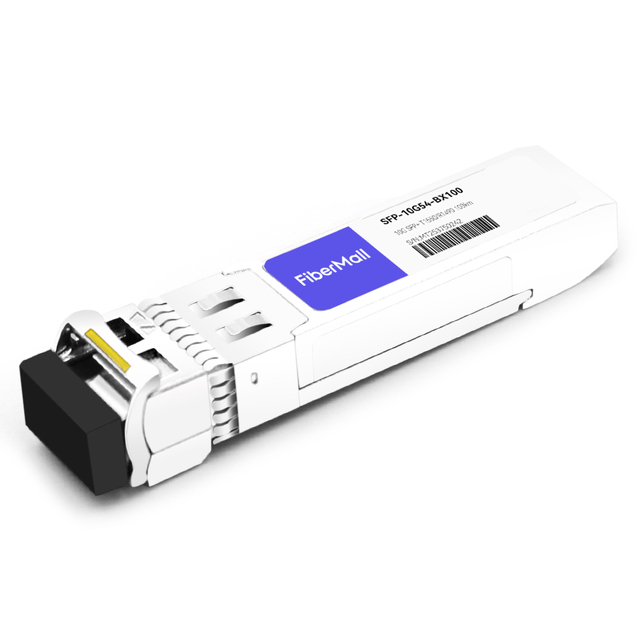

10G BX SFP+ BIDI transceiver supports up to 100km over OS2 SMF via an LC simplex connector. This transceiver is compliant with SFF-8431 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. It Supports 1550nm EML and 1490nm APD into an LC connector, which allows an 80km link distance over single-mode fiber.
| FiberMall P/N | SFP-10G54-BX100 | Vendor Name | FiberMall |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | TX1550nm/RX1490nm | Max Distance | 100km |
| Connector | Simplex LC | Transmitter Type | 1550nm EML |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | 0~+4.0dBm | Receiver Sensitivity | < -22.0dBm |
| Protocols | 10G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
