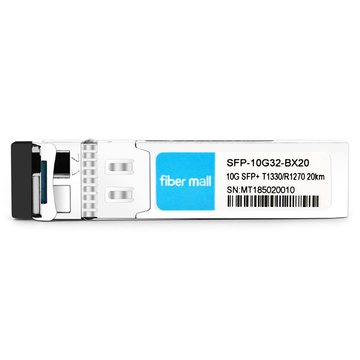

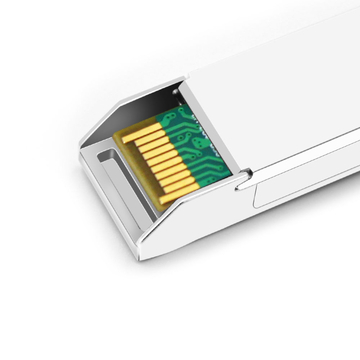

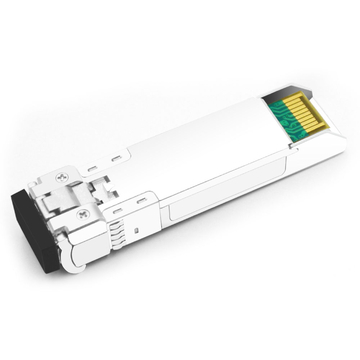

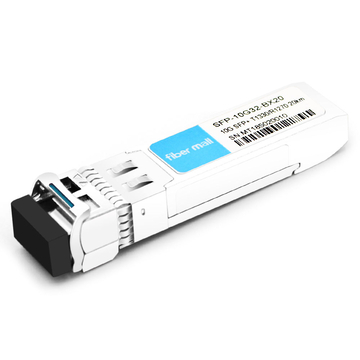

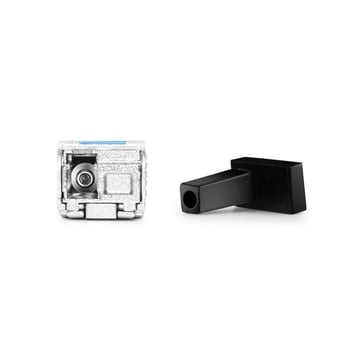

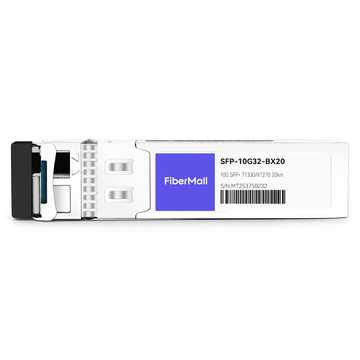

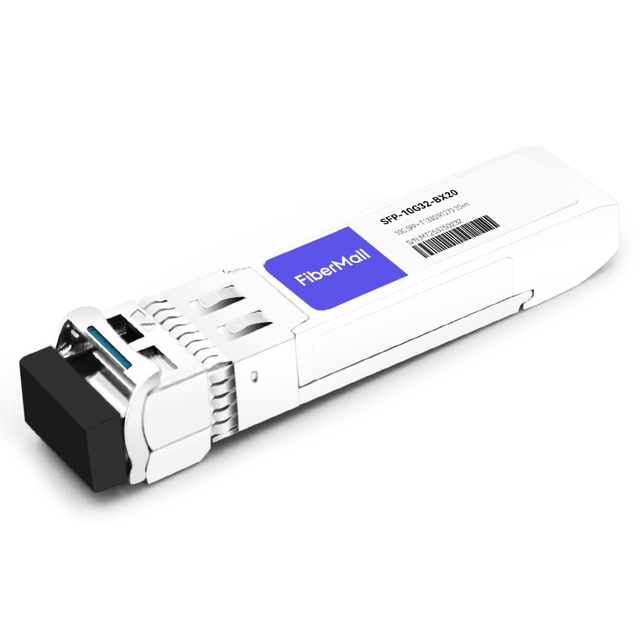

D-Link DEM-436XT-BXD Compatible 10G SFP+ BiDi transceivers support up to 20km over single LC SMF fiber, following IEEE 802.3ae and SFP+ MSA 10GBase-LR. The SFP+ transceivers are high-performance, cost-effective modules. The transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel.
D-Link Compatible | DEM-436XT-BXD | Vendor Name | FiberMall |
Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
Wavelength | TX1330nm/RX1270nm | Max Distance | 20km |
Connector | Simplex LC | Transmitter Type | 1330nm DFB |
Cable Type | SMF | Receiver Type | PIN |
TX Power | -3.0~+2.0dBm | Receiver Sensitivity | < -14.4dBm |
Protocols | 10G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
