{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

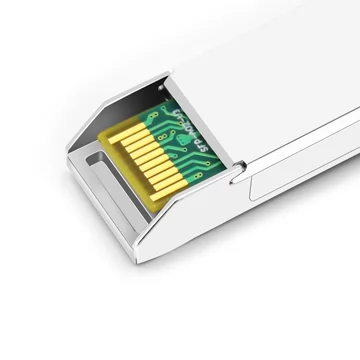

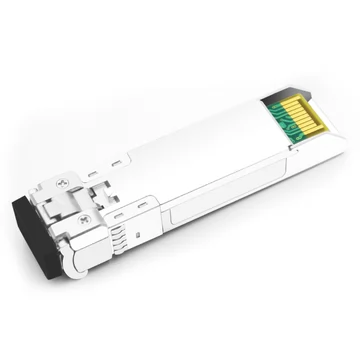

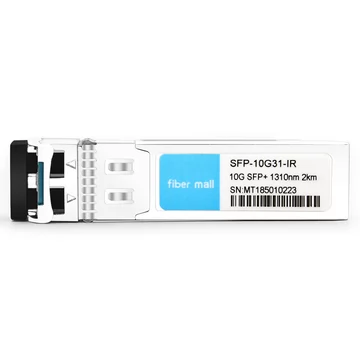

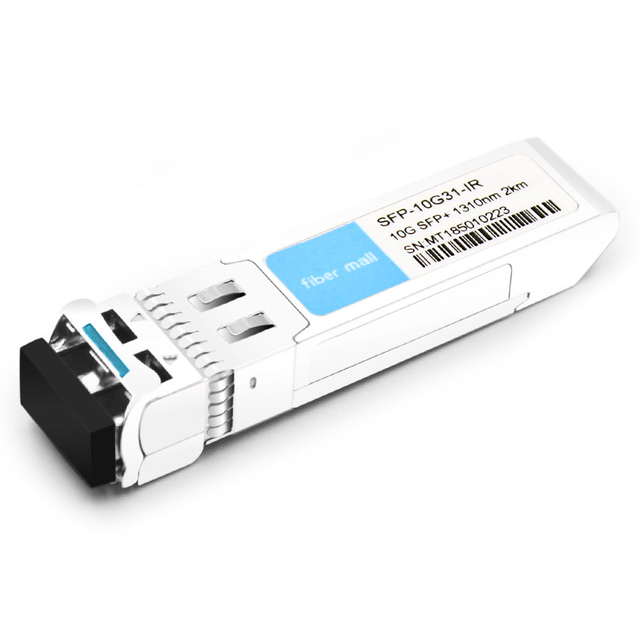

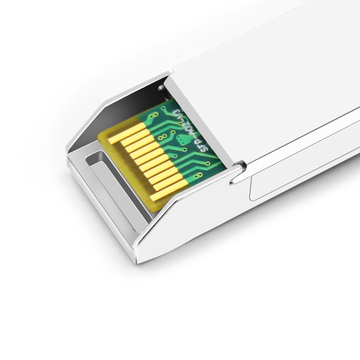

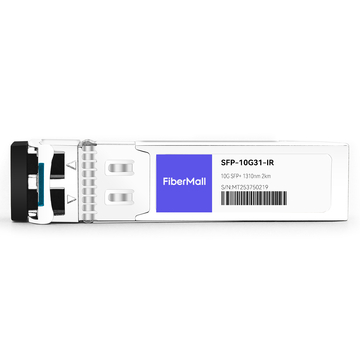

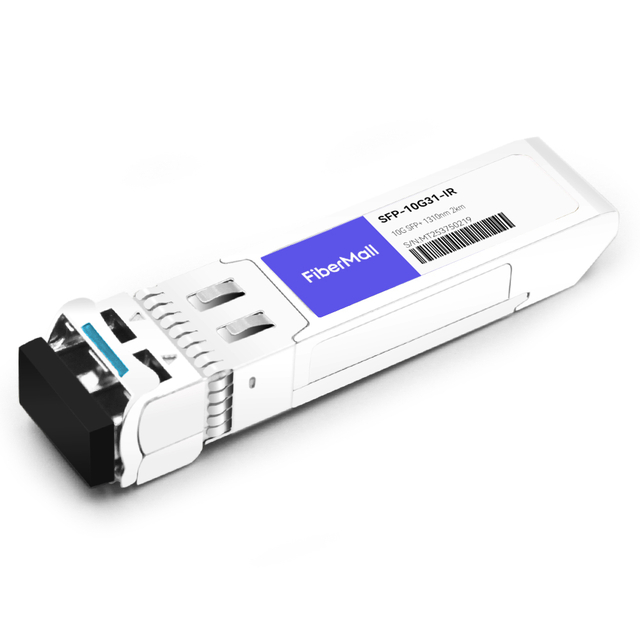

Brocade 10G-SFPP-LRM2 Compatible 10G SFP+ LRM transceivers are high-performance, cost-effective modules supporting data rates of 10Gbps and 2km transmission distance with SMF. The transceiver consists of three sections: an FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Brocade Compatible | 10G-SFPP-LRM2 | Vendor Name | FiberMall |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1310nm | Max Distance | 2km |
| Connector | Duplex LC | Transmitter Type | 1310nm FP |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -6.5~-0.5dBm | Receiver Sensitivity | < -14.4dBm |
| Protocols | 10G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
? Supports 10.3Gbps bit rates
? Hot-pluggable SFP+ footprint
? Un-cooled 1310nm FP laser and PIN photo detector, Up to 2km for SMF transmission

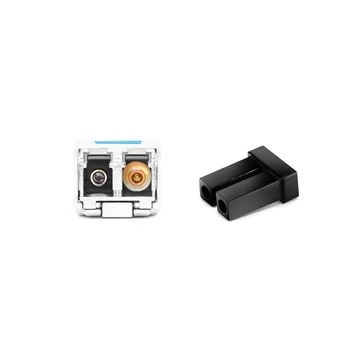

? Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
? Compatible with RoHS
? Single +3.3V power supply
? Real-Time Digital Diagnostic Monitoring
? Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C
? Application for 10Gbps Optical systems, LTE systems, and Other Optical links
