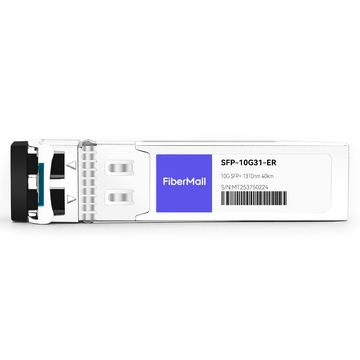

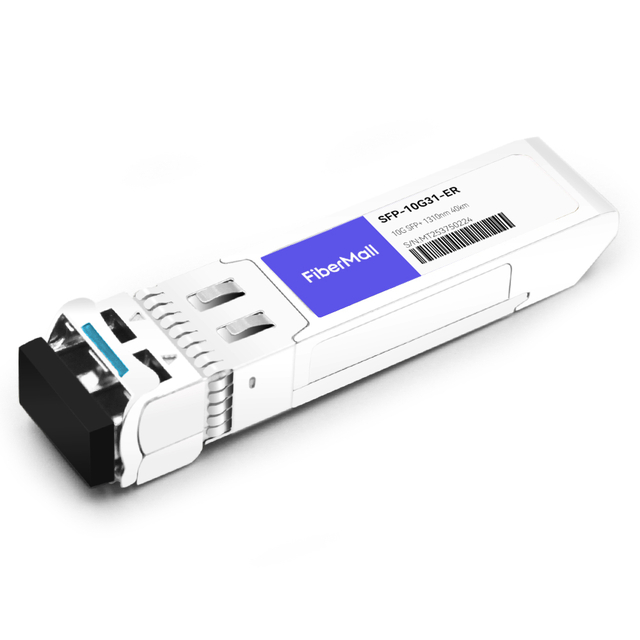

Huawei SFP-10G-ER-1310 Compatible SFP+ Module is designed for optical communication applications and supports link lengths up to 40 km over LC duplex SMF fiber. The transceiver complies with SFF-8431, SFF-8432, and IEEE 802.3ae standards. Digital diagnostic monitoring is available via a 2-wire serial interface as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, radio and baseband units, and more.
| Huawei Compatible | SFP-10G-ER-1310 | Vendor Name | FiberMall |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1310nm | Max Distance | 40km |
| Connector | Duplex LC | Transmitter Type | 1310nm DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -1.0~+3.0dBm | Receiver Sensitivity | < -16.0dBm |
| Protocols | 10G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports up to 10.7Gbps bit rates
v Single +3.3V power supply
v 1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
v Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
v Compatible with RoHS
v Real-Time Digital Diagnostic Monitoring
v 10GBASE-ER at 10.3125Gbps
v 10GBASE-EW at 9.953Gbps
v Compatible with RoHS
