| Dimensions (W×D×H) (unit: mm) | 44.2×440×660mm (1.74×17.32×18.11 in) | Weight | ≤ 16 kg (35.27 lb) |
| Serial Console Port | RJ45 | Out-of-band Management Port | One GE copper port and one GE fiber port |
| Mini USB Console port | 1 | USB Port | 1 |
| 100G QSFP28/40G QSFP+ port | 2 | Expansion Slot | 2 |
| CPU | LS-6850-2C: C2000, 2.4 GHz@4 Cores LS-6850-2C-H1: C3000,2.2GHz@4Core | Flash/SDRAM | 4GB/8GB |
| Latency | <1μs | Switching Capacity | 3.6Tbps |
| Forwarding capacity | 2024 Mpps | Buffer(byte) | 32M |
| "AC-input voltage (LSVM1AC650) | 90v AC to 264v AC | HVDC-input voltage (LSVM1AC650) | 240 VDC |
| Power Module Slot | 2 | Fan Tray Slot | 5 Hot-swappable fan, fan speed adjustable and wind invertible |
| Air Flow Direction | From front to rear or from rear to front | Operating Temperature | 0-45℃(32°F to 113°F) |
| Operating Humidity | 5% to 95%, noncondensing | MTBF(year) | 34 |
| MTTR(hour) | 1 |
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. Our products meet industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
The typical data center application is an EVPN-VxLAN design, S12500G-AF or S12500X-AF switches work as spine or spine/border, S68XX series work as leaf and border or ED. From this design, the users can get a non-blocking large L2 system.

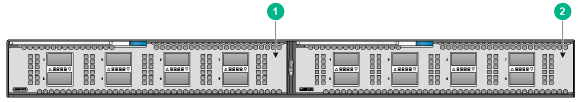

Front panel

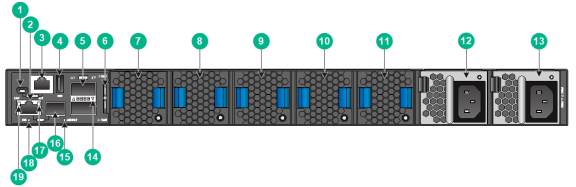

Rear Panel
| Model | Speed | Ports | Throughput | Form Factor | Cooling | Supported Operating Systems | Key Features |
|---|---|---|---|---|---|---|---|
| S6530X-24Y8C | 25G/100G | 24 × 25G SFP28 + 8 × 100G QSFP28 | 4 Tbps | 1U | Air, 5 fan trays | Comware V7 | High-density 25G access; IRF stacking; EVPN-VXLAN; SDN/OpenFlow; OSPF/BGP; large table capacity; multi-service support; hot-swappable fans & PSUs |
| S6530X-48Y8C | 25G/100G | 48 × 25G SFP28 + 8 × 100G QSFP28 | 2.8 Tbps | 1U | Air, 5 fan trays | Comware V7 | High-density 25G access; IRF stacking; EVPN-VXLAN; SDN/OpenFlow; OSPF/BGP; large table capacity; multi-service support; hot-swappable fans & PSUs |
| S6812-48X6C | 10G/100G | 48 × 10G SFP+ + 6 × 100G QSFP28 | 2.16 Tbps | 1U | Air, 3 fan trays | Comware V7 | Data center leaf; EVPN-VXLAN overlay; non-blocking L2; RoCE support; high-performance forwarding; M-LAG; advanced telemetry |
| S6520-22SG-SI | 100G | 2 × 40/100G QSFP28 + 2 expansion slots | 3.6 Tbps | 1U | Air, 5 fan trays | Comware V7 | Compact high-speed switch; spine/leaf in DC; EVPN-VXLAN; flexible expansion; dual management ports; hot-swappable components; large buffer |
The switch offers high-density 25GE forwarding. It provides powerful hardware forwarding capacity and abundant campus features. It provides up to 48/24*1GE/10GE/25GE autosensing SFP28 ports and 8*100G ports. The switch supports modular power modules and fan trays. By using different fan trays, the switch can provide field changeable airflows.
Product Features
v 1 * H3C 24-Port 25G Ethernet Optical Interface (SFP28) and 2-Port 100G Ethernet Optical Interface (QSFP28) Module
v 1 * H3C 16-Port 40G Ethernet Optical Interface Module(QSFP Plus)
v 2 * 650W AC Power Supply Module (Power Panel Side Intake Airflow)
v 5 * Fan Module (SW, 4056, DC, Fan Panel Side Exhaust Airflow)
