| Flash/SDRAM | 4GB/4GB | Packet Buffer | 36M |
| Box Switching Capacity | 4Tbps | Port Switching Capacity | 4Tbps |
| Packet Forwarding Rate | 1020Mpps | Latency (64byte/s) | 25GE:<3 (64byte/us) 100GE:<1.2 (64byte/us) |
| Weight | ≤ 7.6 kg | Dimensions (W×D×H) (unit: mm) | 44×440×400mm (1.73×17.32×15.75 in) |
| Management Ethernet Ports | 1 | Console Port | 1 |
| SFP28 port | 48 | USB Port | 1 |
| AC（AC input for the PSR250-12A/PSR250-12A1 power supply） | Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz | QSFP28 Port | 8 |
| Power Consumption (MAX) | Single AC: 223W Dual AC: 227W | HVDC (HVDC input for the PSR250-12A/PSR250-12A1 power supply:) | Rated voltage range: 240V DC Max voltage range: 180V～320V DC |
| MTBF(Year) | 10 | Operating & Storage Humidity | 5% RH to 95% RH, non-condensing |
| Operating Temperature | '-5ºC to 45ºC (23°F to 113°F) | MTTR(Hour) | 1 |
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. Our products meet industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
In medium to large enterprises or campus networks, the H3C S6530X Series Ethernet switches serve as aggregation layer switches, delivering high-performance, high-capacity switching and 10G/25G aggregation. They can connect upward to core devices via 40G/100G links.
Application at the aggregation layer of enterprise or campus networks:
In small campus networks, the H3C S6530X offers high bandwidth, large table capacity, high performance, and multi-service capabilities, making it an ideal core device for small campus networks.
Application in the core layer of enterprise networks/campus networks:

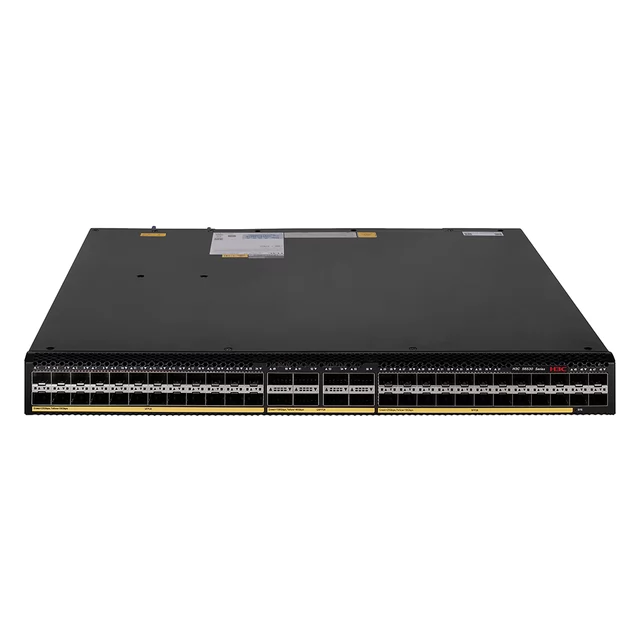

Front panel

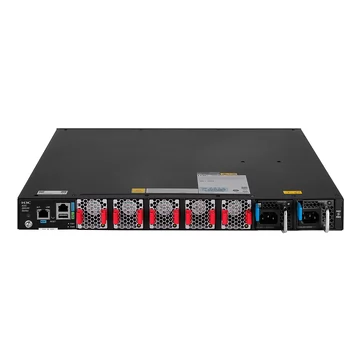

Rear Panel
Rear Panel
| Model | Speed | Ports | Throughput | Form Factor | Cooling | Supported Operating Systems | Key Features |
|---|---|---|---|---|---|---|---|
| S6530X-24Y8C | 25G/100G | 24 × 25G SFP28 + 8 × 100G QSFP28 | 4 Tbps | 1U | Air, 5 fan trays | Comware V7 | High-density 25G access; IRF stacking; EVPN-VXLAN; SDN/OpenFlow; OSPF/BGP; large table capacity; multi-service support; hot-swappable fans & PSUs |
| S6530X-48Y8C | 25G/100G | 48 × 25G SFP28 + 8 × 100G QSFP28 | 2.8 Tbps | 1U | Air, 5 fan trays | Comware V7 | High-density 25G access; IRF stacking; EVPN-VXLAN; SDN/OpenFlow; OSPF/BGP; large table capacity; multi-service support; hot-swappable fans & PSUs |
| S6812-48X6C | 10G/100G | 48 × 10G SFP+ + 6 × 100G QSFP28 | 2.16 Tbps | 1U | Air, 3 fan trays | Comware V7 | Data center leaf; EVPN-VXLAN overlay; non-blocking L2; RoCE support; high-performance forwarding; M-LAG; advanced telemetry |
| S6520-22SG-SI | 100G | 2 × 40/100G QSFP28 + 2 expansion slots | 3.6 Tbps | 1U | Air, 5 fan trays | Comware V7 | Compact high-speed switch; spine/leaf in DC; EVPN-VXLAN; flexible expansion; dual management ports; hot-swappable components; large buffer |
The switch offers high-density 25GE forwarding. It provides powerful hardware forwarding capacity and abundant campus features. It provides up to 48/24*1GE/10GE/25GE autosensing SFP28 ports and 8*100G ports. The switch supports modular power modules and fan trays. By using different fan trays, the switch can provide field changeable airflows.
