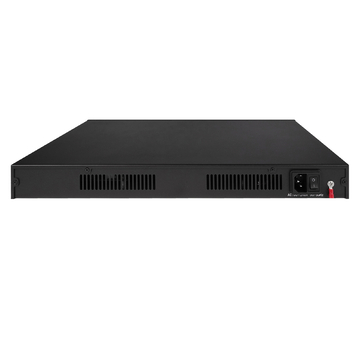

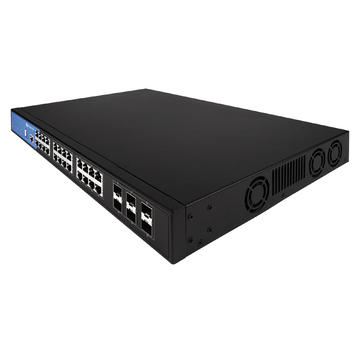

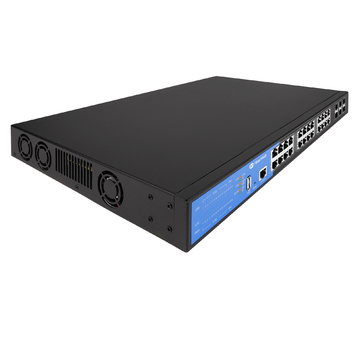

S3100-24T6X-P, 24-Port Ethernet Switch L3, PoE+ Switch, 24x 10/100/1000/2500 BASE-T RJ45, with 6x 1G/10G SFP+ Uplinks

S3100-24T6X-P 30-Port Ethernet L3 PoE Switch is equipped with 24 x 10/100/1000/2500Mbps adaptive RJ45 and 6 x 10Gigabit Base X. Each RJ45 port supports MDI/MDIX and wire speed forwarding functions. Ports 1 to 24 support PoE power supply and comply with IEEE 802.3af/at standards. As a power over Ethernet device, ports 1 to 24 can automatically detect and identify powered devices that meet the standards and supply power to them through network cables. It adopts store and forward switching, combined with QoS technology, to ensure that bandwidth is effectively allocated to each port, providing stable and reliable power and data transmission.

Product Details

Ports	24x 10/100/1000/2500 BASE-T RJ45 POE \| 6x 1G/10G SFP+	Switch Chip	Realtek
Switching Capacity	240Gbps	Input Voltage	AC 100-240V 50/60Hz
Forwarding Rate	178.56Mpps	PoE Standard	802.3af/at
Forwarding delay	<10us	Jumbo Frame	Support
Operating Temperature	-10℃ ~ +50℃ (14 to 122℉)	Max. Power Consumption	≤400W
MTBF	100,000 Hours	Management	Support console
Mounting Methods	Desktop	Storage temperature	-40℃ ~ +75℃ (-40 to 167°F)
Power supply	AC	Weight	3kg
Dimensions (HxWxD)	44028044mm	Warranty	3 Years

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. Our products meet industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

Connectivity Solutions

Gigabit Port Configuration

Ports 1 to 24 support PoE power supply and comply with IEEE 802.3af/at standards

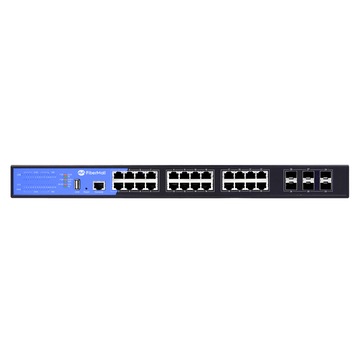

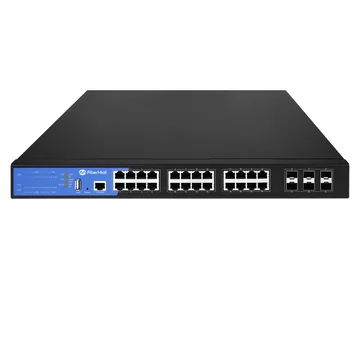

① 24x 10/100/1000/2500 BASE-T RJ45 POE ② 6x 1G/10G SFP+

Multiple Management Methods for Easy Network Maintenance

Supporting SNMP, CLI, WEB, SSH, and other methods to deliver a streamlined experience for the device's convenient maintenance

Application network topology diagram

24-Port Ethernet Switch
