Switch 1G 8 port POE Switch with 2x 1G SFP L2+ Up1inks | FiberMall

Add to wish

S2100-8T2S-P, 8-Port Ethernet Switch L2+, PoE+ Switch, 8x 10/100/1000BASE-T RJ45, with 2x 1G SFP Uplinks

Name: S2100-8T2S-P, 8-Port Ethernet Switch L2+, PoE+ Switch, 8x 10/100/1000BASE-T RJ45, with 2x 1G SFP Uplinks
Brand: fibermall
SKU: 30089
Price: 139.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:30089

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Types: PoE+ L2+

FM PN:

S2100-8T2S-P

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

S2100-8T2S-P, 8-Port Ethernet Switch L2+, PoE+ Switch, 8x 10/100/1000BASE-T RJ45, with 2x 1G SFP Uplinks

The S2100-8T2S-P 8-Port Managed PoE+ Ethernet Switch has 8x 10/100/1000BASE-T ports and 2x 1000M SFP Uplinks. 8x RJ45 Ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+(up to 30W per Port) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. The switch adopts the most cutting-edge Realtek chip.

This access switch delivers a compact, cost-effective solution for carrier IP MAN and enterprise networks. Based on the high-performance hardware and management platform, it supports functions such as ACL, QinQ, and QoS. It's a simple management mode and flexible installation can meet the requirements of any scenario.

Product Details

Ports	8x 10/100/1000BASE-T RJ45 \| 2x 1G SFP	Switch Chip	Realtek
Switching Capacity	20Gbps	Input Voltage	AC 100-240V 50/60Hz
Forwarding Rate	14.88Mpps	PoE Standard	802.3af/at
Forwarding delay	<10us	Jumbo Frame	Support
Operating Temperature	-10℃ ~ +50℃ (14 to 122℉)	Max. Power Consumption	≤120W
MTBF	100,000 Hours	Management	Support console
Mounting Methods	Desktop	Storage temperature	-40℃ ~ +85℃ (-40 to 185°F)
Power supply	AC	Weight	0.97kg
Dimensions (HxWxD)	22016144mm	Warranty	3 Years

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

Connectivity Solutions

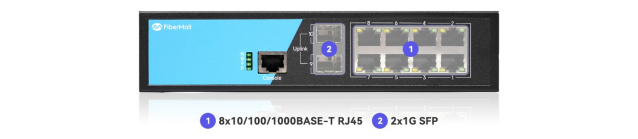

Gigabit Port Configuration

8x RJ45 Ports support both IEEE 802.3af PoE and IEEE 802.3at PoE+(up to 30W per Port)

① 8x10/100/1000BASE-T RJ45 PoE+ Ports IEEE 802.3af/at ② 2x 1G SFP

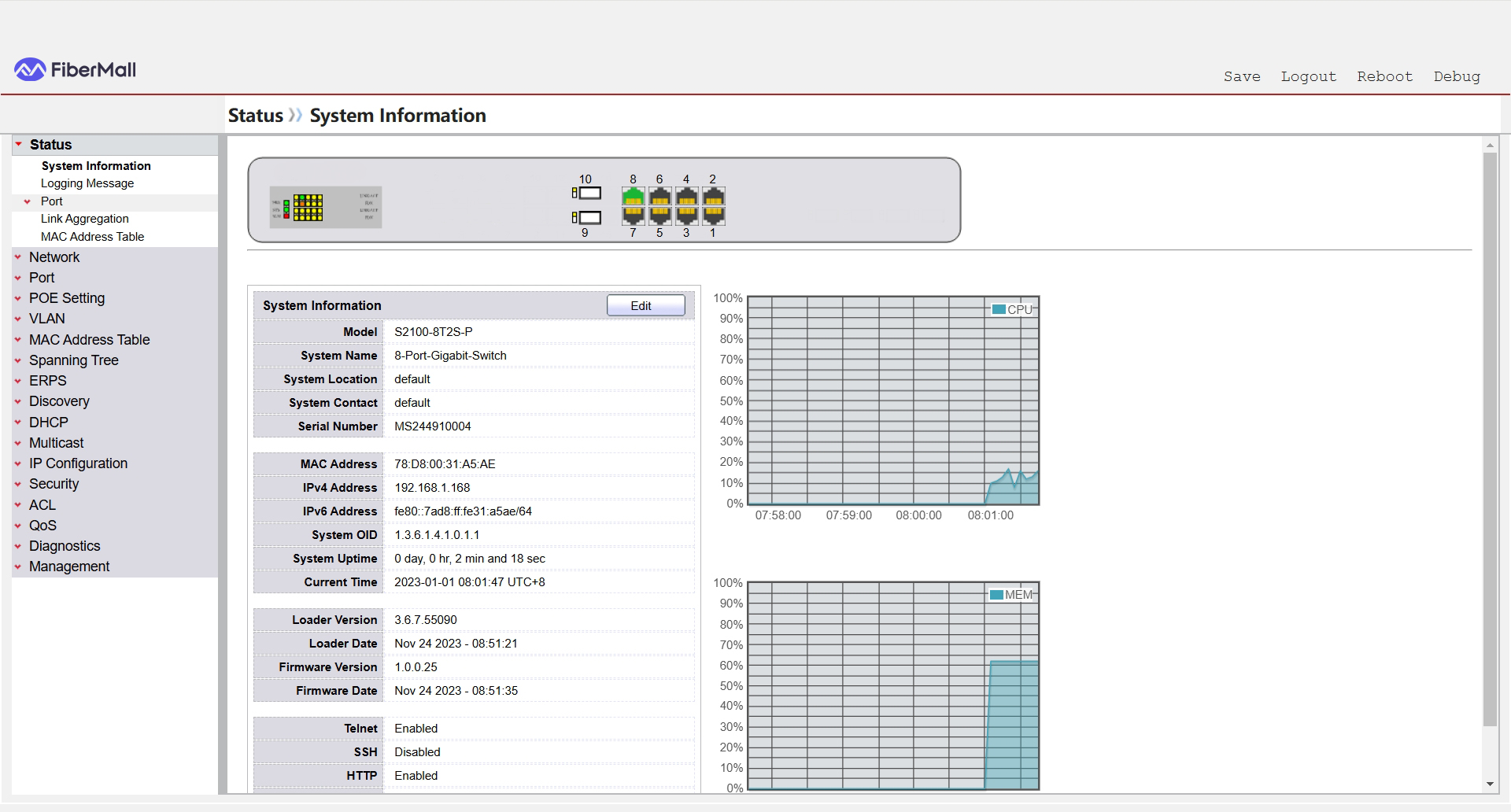

Multiple Management Methods for Easy Network Maintenance

Supporting SNMP, CLI, WEB, SSH, and other methods to deliver a streamlined experience for the device's convenient maintenance

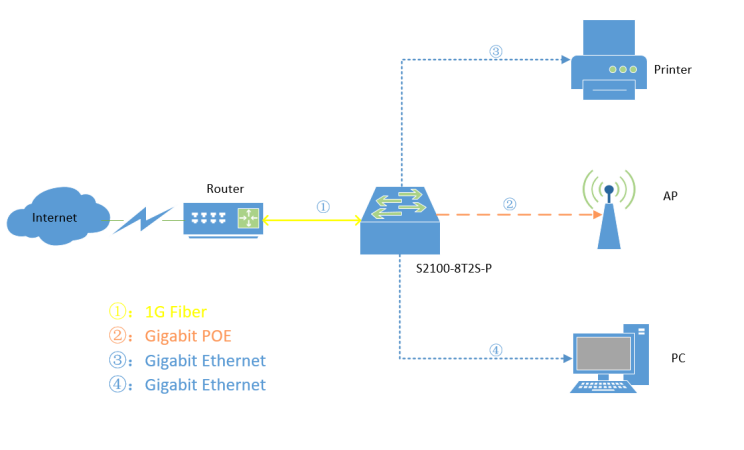

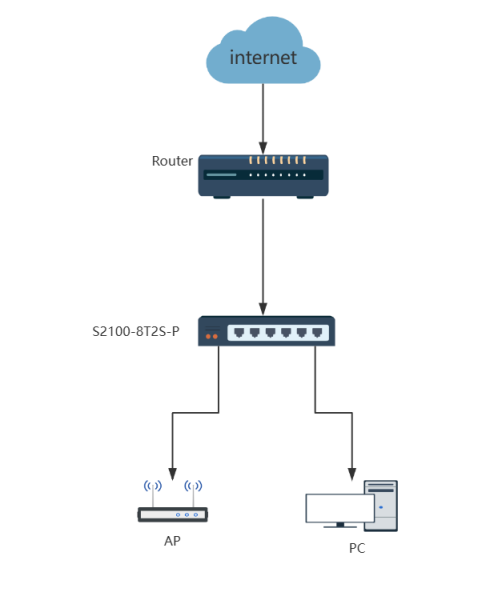

Application network topology diagram

8-Port Ethernet Switch
