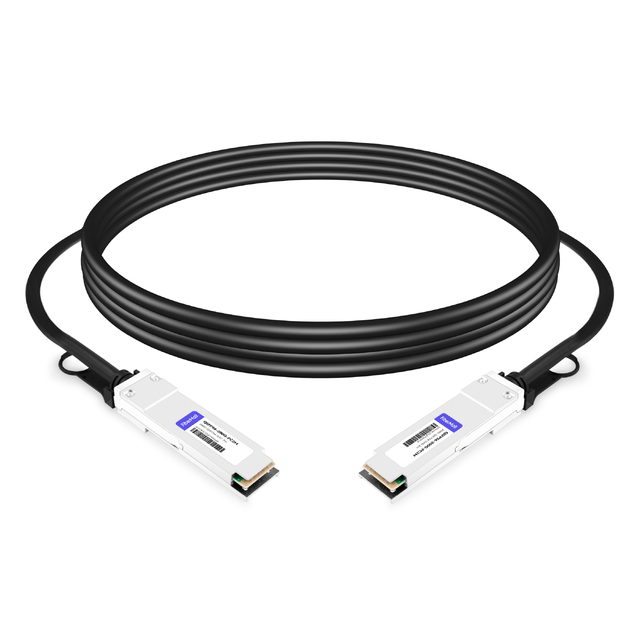

The 200G QSFP56 Active Direct Attach Copper Twinax Cable is designed for use in 200GBASE Ethernet. They are suitable for concise links and Improve network efficiency for data center server and storage connections. This cable is compliant with IEEE 802.3cd by Ethernet standard and QSFP MSA Compliant. FiberMall 200G QSFP56 DAC Cable, used in 200G Ethernet, InfiniBand HDR, data center, and storage area network.
| H3C Compatible | QSFP56-200G-D-DAC-2M | Vendor Name | FiberMall |
| Connector | QSFP56 to QSFP56 | Max Data Rate | 212.5Gb/s |
| Wire Gages | AWG 26 | Cable Length | 2m (6.6ft) |
| Jacket Material | PVC (OFNR) | Minimum Bend Radius | 35mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Modulation Format | PAM4 |
| Protocols | IEEE 802.3bj and 802.3cd, SFF-8636 | Application | 200G Ethernet and InfiniBand HDR |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v 30AWG Cable.
v Supports aggregate data rates of 200Gbps(PAM4).
v Minimum Bend Radius 35mm for Flexible Routing.
v Hot Pluggable QSFP56 MSA, IEEE 802.3bj, IEEE 802.3cd and RoHS Compliant
v Excellent attenuation performance and low delay performance for best InfiniBand HDR end-to-end performance.
v Use For Switches, servers, routers, Data Center networks, Storage area networks, High-performance computing, etc.
v 30-day Risk-Free Return, 1-year Warranty, and Global Shipping.
