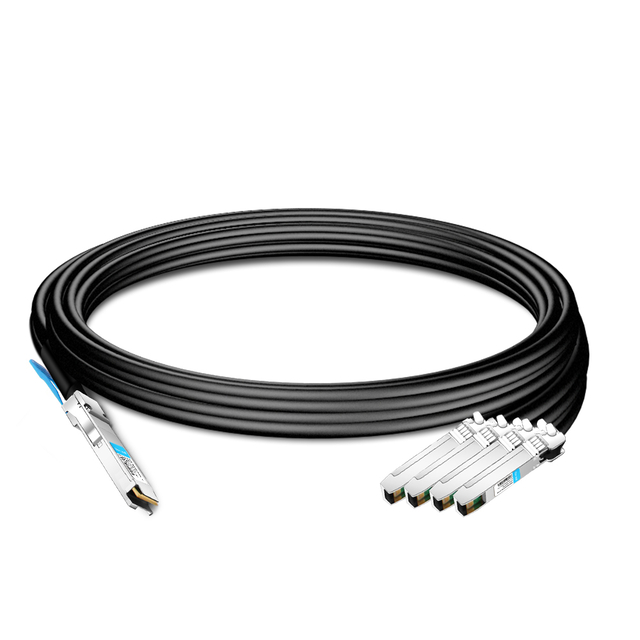

Arista Networks C-Q200-4S50-1M Compatible 1m 200G QSFP56 to 4x 50G SFP56 Copper Breakout Cable (QSFP56 to SFP56 DAC Breakout Cable, Passive AWG30 1m)
200G QSFP56 to 4x 50G SFP56 is a portfolio of passive Direct Attach Copper (DAC) cables as high-speed, cost-effective alternatives to fiber optics in 4x50G Ethernet applications. It is compliant with IEEE 802.3bj, SFF-8679, and SFF-8636 standards. 1x200G QSFP56 port at one end and 4x50G SFP56 ports at the other end are connected, which is suitable for cost-effective short-distance interconnection such as telecom operators' computer rooms or data centers.
Product Details
| Arista Networks | C-Q200-4S50-1M | Vendor Name | FiberMall |
| Connector | QSFP56 to 4x SFP56 | Max Data Rate | 200Gb/s |
| Wire Gages | AWG 30 | Cable Length | 1m (3.28ft) |
| Jacket Material | PVC (OFNR) | Minimum Bend Radius | 35mm |
| Operation Temperature | 0~ 70 °C (32 to 158°F) | Modulation Format | PAM4 |
| Protocols | IEEE 802.3bj and 802.3cd, SFF-8636 | Application | 200G Ethernet and InfiniBand HDR |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
Keep In Stock
- Fast Delivery
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
Professional Service
- Technical Support
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
- Coding(EEPROM Programming)
![Arista C-Q200-4S50-1M 200G QSFP56 to 4x 50G SFP56 DAC 1m | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
