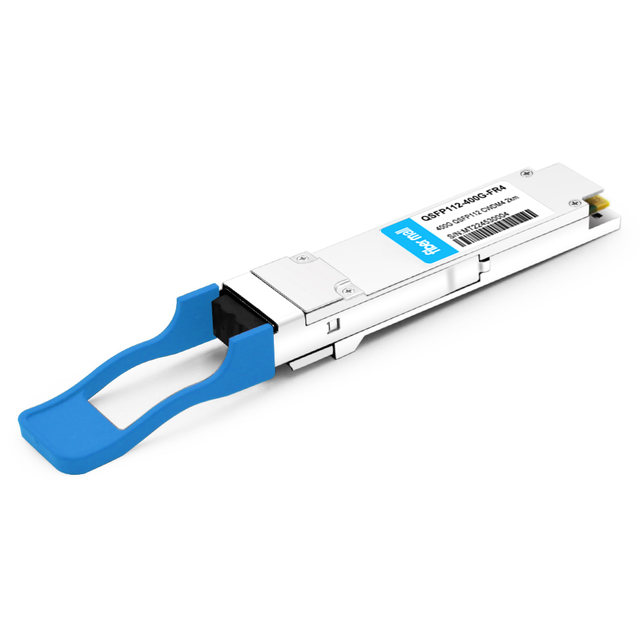

H3C QSFP112-400G-FR4-WDM1300 Compatible 400G QSFP112 FR4 PAM4 CWDM 2km Duplex LC SMF FEC Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:20217
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compatible
FiberMall
H3C
FM PN:
QSFP112-400G-FR4
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

H3C QSFP112-400G-FR4-WDM1300 Compatible 400G QSFP112 FR4 PAM4 Optical Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm Duplex LC SMF 2km with FEC DDM)

The QSFP112 400GBASE FR4 transceiver module is designed for 400G Ethernet links over 2km of single-mode fiber. The module contains 4 parallel channels at a center wavelength of CWDM, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.

Product Details

H3C Compatible QSFP112-400G-FR4-WDM1300Vendor Name FiberMall
Form Factor QSFP112Max Data Rate 425Gbps
Wavelength 1271nm, 1291nm, 1311nm, 1331nmMax Distance 2km
Modulation Format PAM4Host Required FEC
Connector Duplex LCVoltage Supply 3.3V
Cable Type SMFDDM Support  Yes
Transmitter Type CWDM EMLReceiver Type  PIN
TX Power -3.3~+3.5dBmReceiver Sensitivity < -7.7dBm
Operation Temperature  0 to 70°C (32 to 158°F)Maximum Power < 10.5W
Protocols QSFP112 MSA, IEEE 802.3bsApplication 400G Ethernet, Data Center Interconnect, Infiniband Interconnects


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

our advantages

H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

Keep In Stock

Fast Delivery
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

Professional Service

Technical Support
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
Coding(EEPROM Programming)
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
Testing system

Partial test demonstartion

H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
Cisco N9k-C92160YC-X-C
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
HP ProCurve 5406zl J8697A
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
ARISTA 7-50QX-32
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
Juniper EX4300
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
HW S5700-28X-L1-AC
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
Brocade VDX 6720
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
DELL S4048 ON
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
DATACOM DM4100
H3C QSFP112-400G-FR4-WDM1300 400GBASE FR4 QSFP112 Module | FiberMall
H3C LS-5500-28C-S

Product Features

v Supports 425Gbps

v Single 3.3V Power Supply

v 4x106.25Gbps (PAM4) electrical interface

v QSFP112 MSA, RoHS Compliant

v Up to 2km over SMF with FEC supported at the Host side

v Maximum power consumption 10.5W

v Supports Data Center Interconnect, 400GBASE FR4, Infiniband interconnects, Enterprise networking
